Michell Instruments MDM25 - Instrument Display; Figure 2 Display

MDM25 User’s Manual
Michell Instruments 3
INTRODUCTION
1.1.2 Instrument Display
RH
Ta
Abs H
53.1%
21.0°C
9.7 g:M
3
h
h
h
h
1
2
3
4
1
Battery Charge Indicator Icon - displays 3 dots
when full. When battery icon is empty, replace
the batteries.
2 RH Display
3 Temperature Display
4
3rd Output Display - presents the selected 3rd
output, either in ºC / ºF Td, g/m
3
, or ºC / ºF T
W
Battery Indicator
Full battery power
2/3 battery power
1/3 battery power
Replace batteries

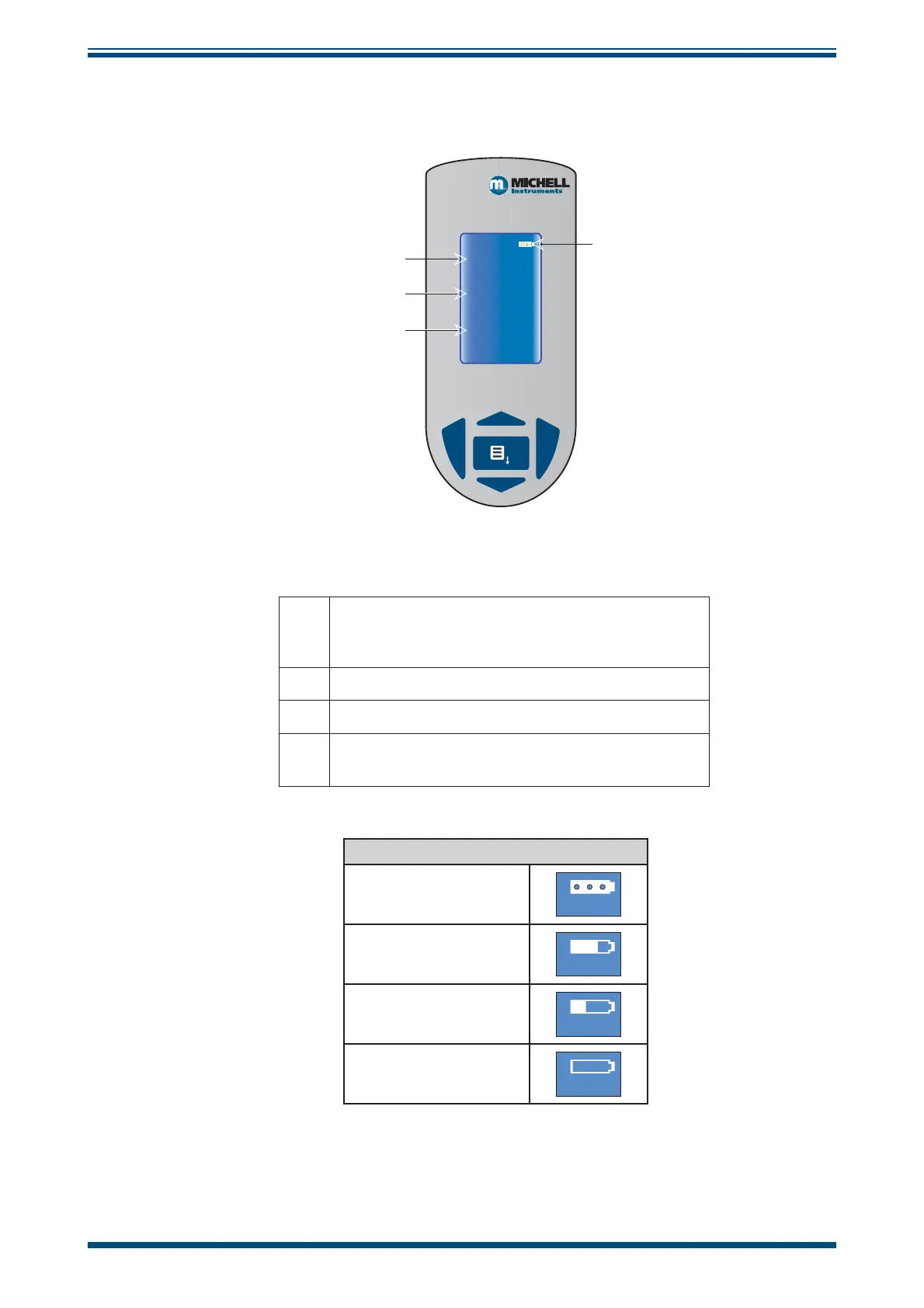

Figure 2 Display
