INSTALLATION
2.4 Mounting and Connecting the Probe
All probes insert directly into the connector on the top of the MDM25.
Align the locating peg with the locating notch and then rotate the knurled thumb wheel
until the probe is securely held in place.

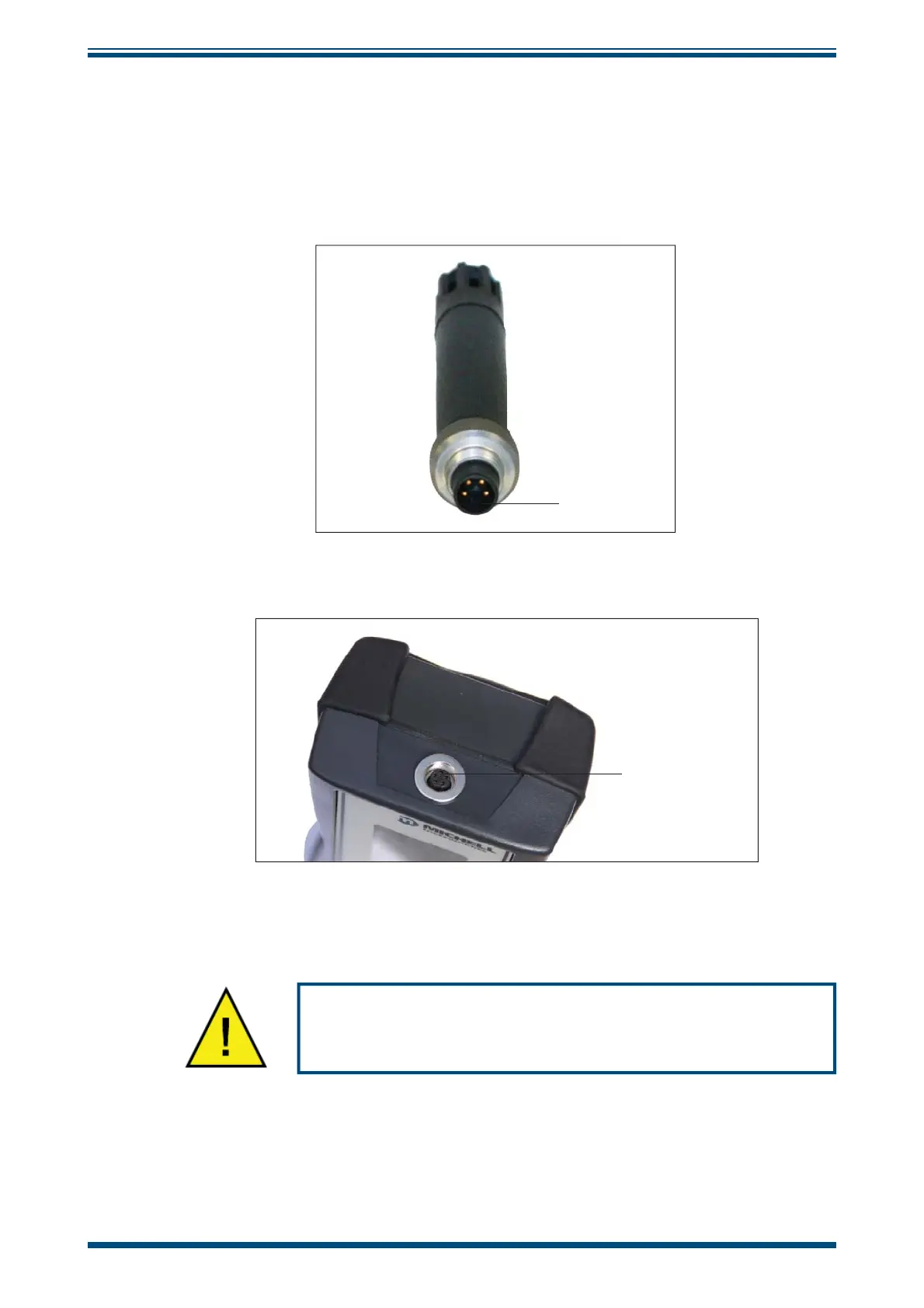

Locating Peg

Locating Notch

Figure 4
Probe Connections
WARNING: Do not over-tighten as this could cause damage
to the probe body.
