Unclassified
HMI
2-2
Table 2-1. RM500 Front Panel Indicators (Continued)
Indicator Function
BAND
OUT
Out-of-band input signal frequency: lights when the output filter of the 500W amplifier
(used to reduce harmonics radiated by the radio set), cannot be tuned to the input signal
frequency. In this case, the highest filter band is selected to attempt continued operation
ON
OFF
RM 500
FAILUREVOLT
TEMP
VSWR
OVER DR
TX
BYPASS
BAND
OUT
Headphone
Jack
Telegraphy
Key Jack
Internal Speaker
Indicators
Standard MICOM-3
PanelControl
Main ON/OFF
Switch and
Circuit Breaker
Internal Speaker
ON/OFF Switch

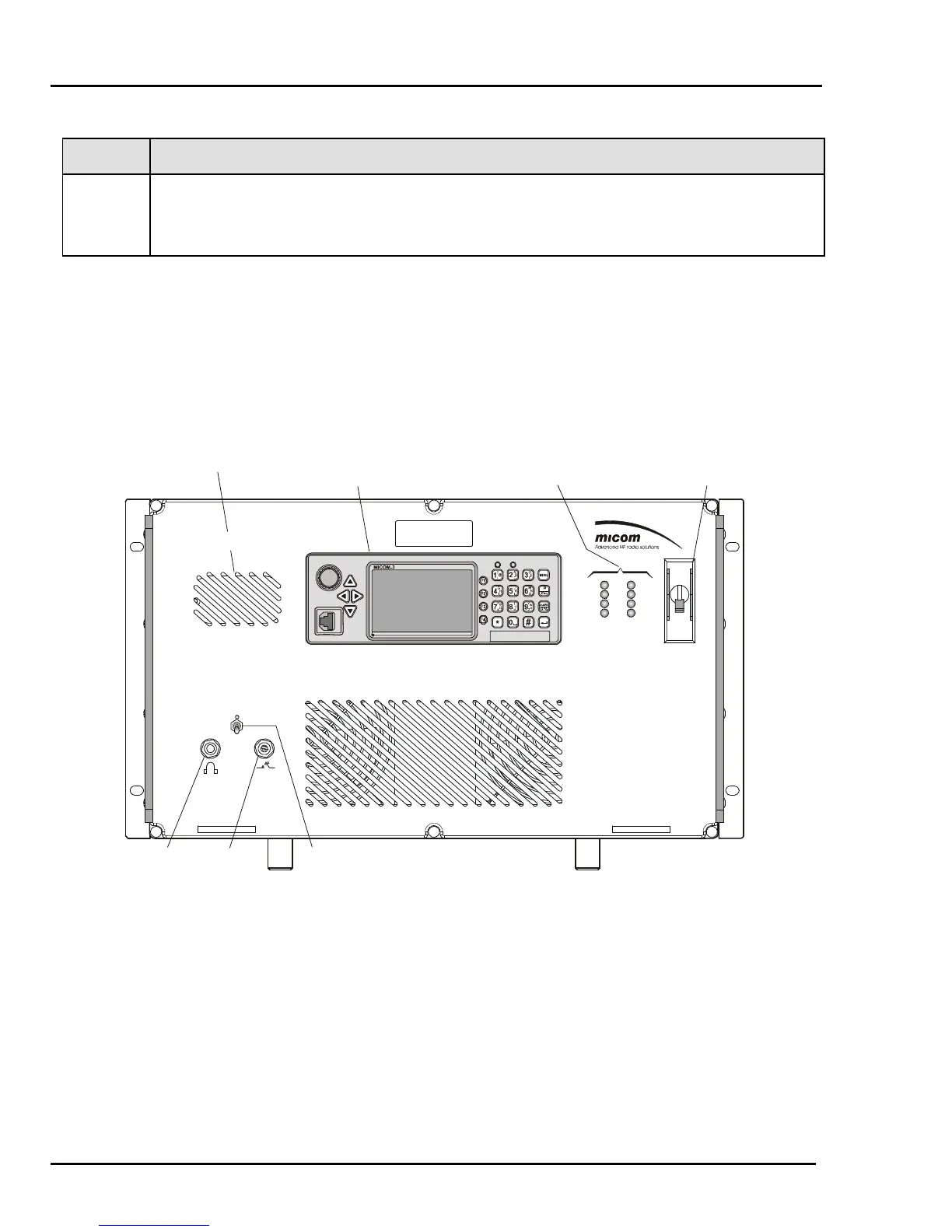

Figure 2-1. RM500 Front Panel
