Micom RM500 - Connections to Optional PPS

Unclassified
Installation Procedure
3-7/(3-8 Blank)
RF OUT
110/220VAC
A
CC.-J1
A
CC.-J2
A
CC.-J3
A
CC.-J4
ISB
PPS-CONT
RX IN TX IN
ACC. C.H.
REMOTE CONTROL
TX OUT
RX OUT
PARALLEL I/O SERIAL I/O
DC IN
+12/24 VDC GND
AC POWER
Serial
Control Cable
ANTENNA EXC OUT PA IN RADIO
To Antenna
To AC Power

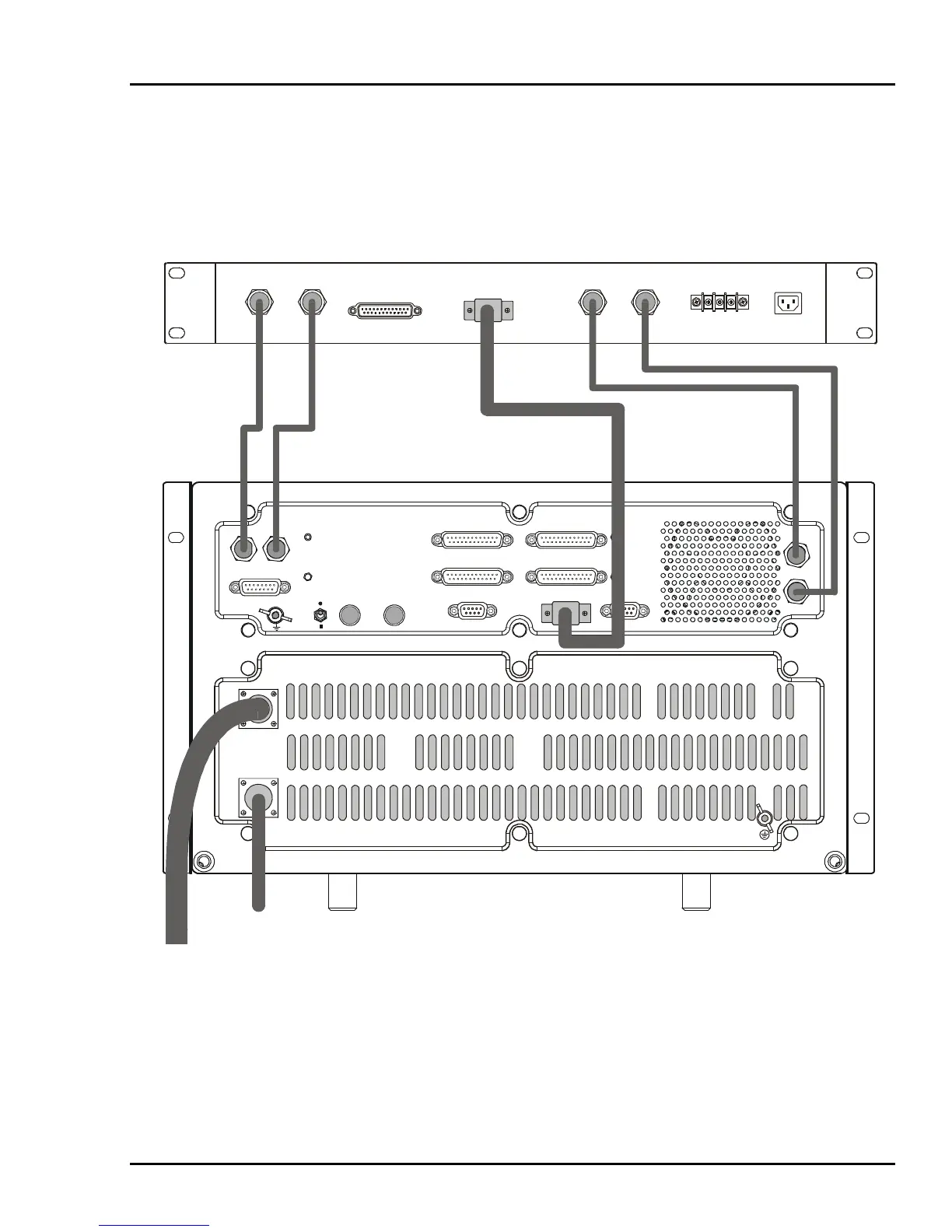

Figure 3-1. Connections to Optional PPS
