13
©2021 Micro-Air Corp May 20, 2021, revision 1.4

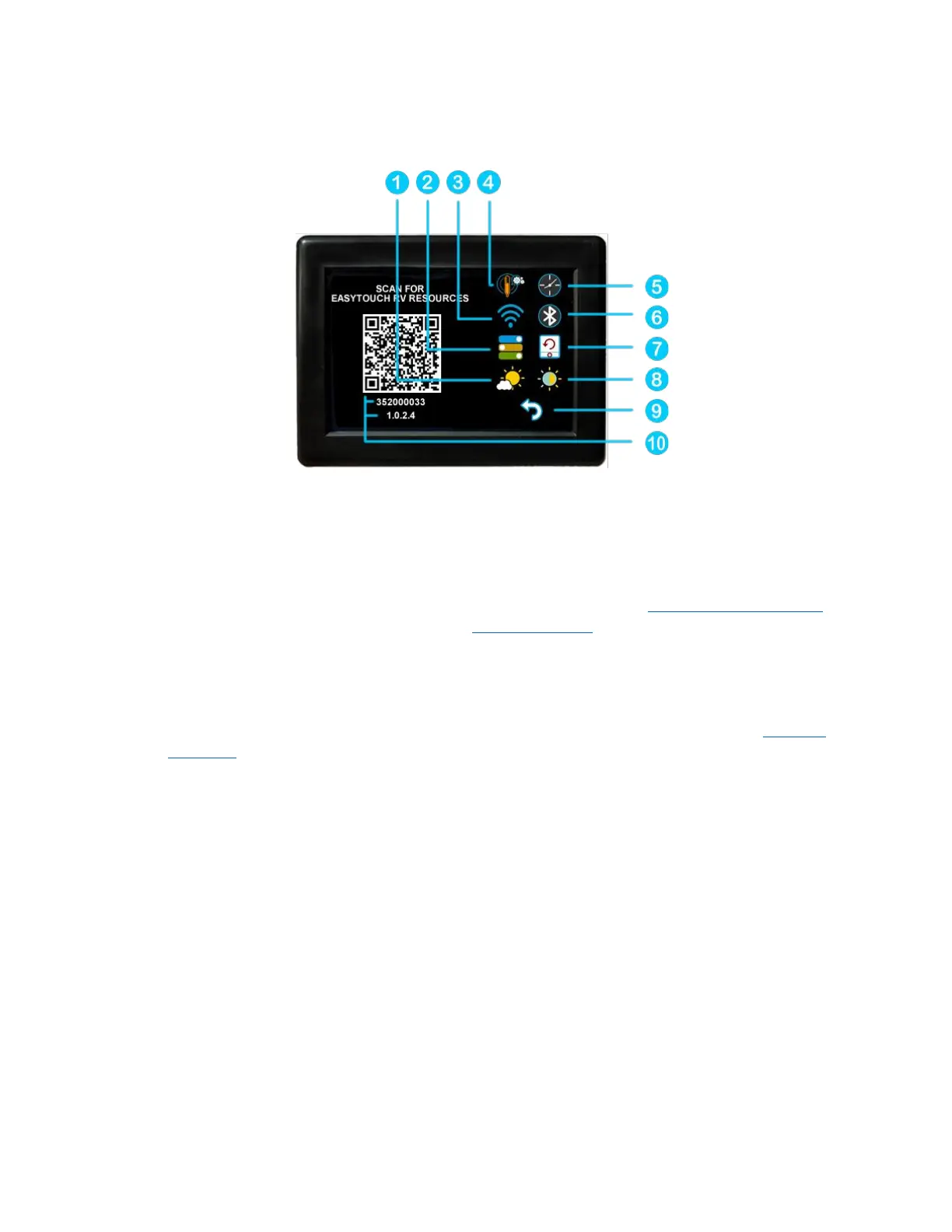

Settings Screen
1. Day mode (half sun icon shown above) will dim the display down to the screen saver set point
after 30 seconds. Night mode (moon icon) will turn off the back light after 30 seconds. The
display will brighten again once the touch screen is pressed. See (8) to set brightness.
2. The DIP switches icon is used to configure set behaviors of the thermostat. It must be used
when installing the thermostat to set the available heat sources. See setting your heat sources
for more details. You also enable or disable gas heat override from this screen.
3. WIFI is used to view your WIFI settings and MAC address. Changes to the WIFI connection must
be made using the smart device application.
4. Temperature adjustment is used to adjust the inside temperature with an offset. This is useful
when using an external sensor.
5. Schedule is used to change the set point automatically at a pre-determined time. See Schedule
operation for more details.
6. Bluetooth is used to reset the Bluetooth password. This password is saved from your account
password. Only one account at a time may access the thermostat. Reset the password whenever
you change your account password.
7. Reset all will reset the thermostat to factory settings including all set points, schedule events,
and other settings.
8. Brightness settings allow dimming the normal brightness and setting the screen saver
brightness.
9. The back icon will return the display to the operating screen.
10. The QR code will bring you to the Micro-Air EasyTouch page when selected using a QR
compatible phone app. Below the QR code is the serial number for the thermostat and the
firmware revision for the thermostat. Firmware updates can be checked for in the smart device
application.
