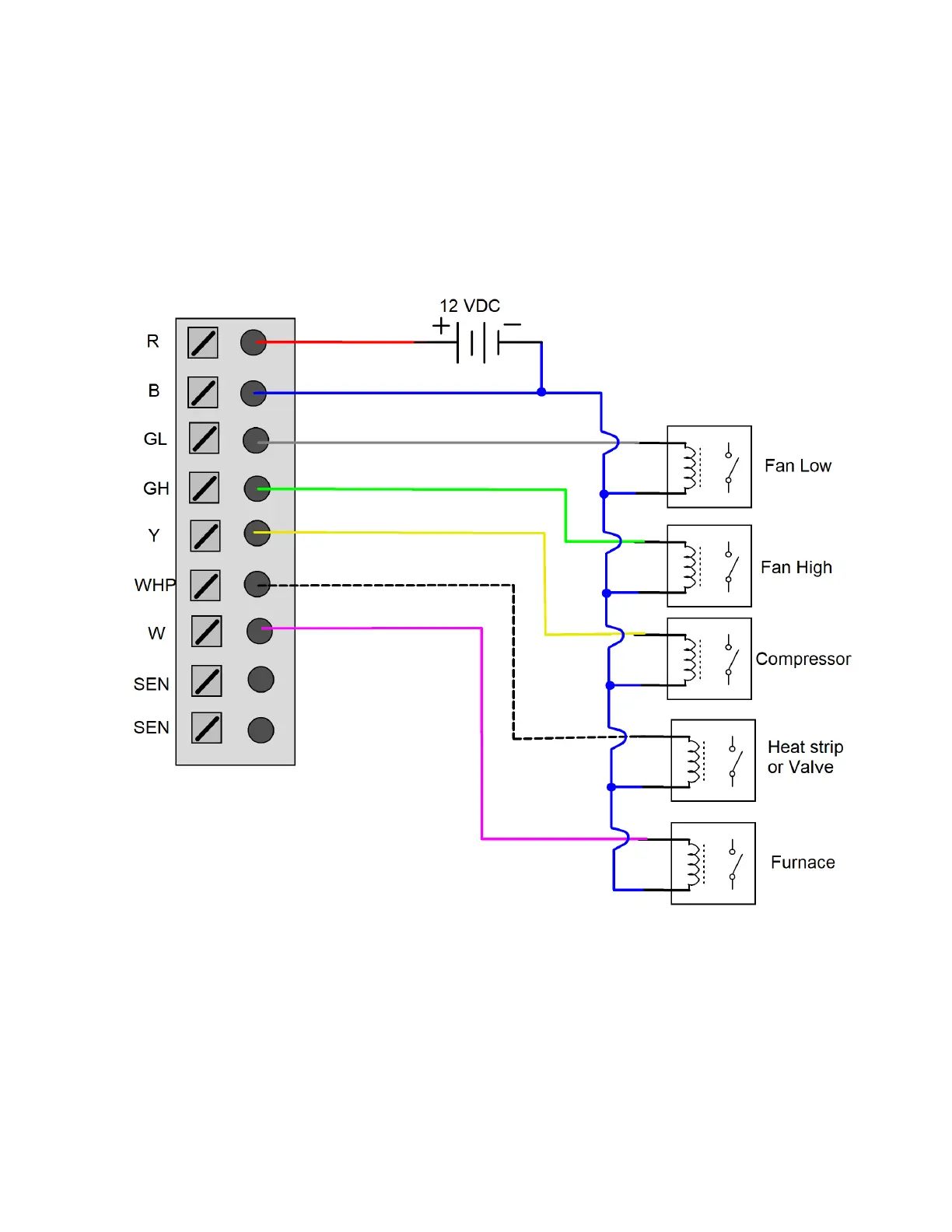

Using this thermostat on other applications
It is possible to use this thermostat for custom installations. The outputs are all +12-volt active
and open collector (high impedance) inactive outputs. Maximum drive current is 200mA per output. This
thermostat cannot be used for 24 VAC applications. Contact Micro-Air if you are not certain this device
will work in your intended application.
