The EasyTouch 352 model thermostats were designed to directly replace Coleman™, Airxcel™

and RVP™ single zone DC thermostats. The thermostats can be used in other applications with certain

electrical limitations as explained later in this document.

Installing the thermostat

There are three steps to installing the thermostat. First remove your old thermostat. Next

disconnect and reconnect the wiring. Finally install the mounting pins to the wall and mount your new

thermostat.

Removing the old thermostat

The larger Airxcel thermostats (approximately 5.5 inches wide by 3.75 inches tall) have a front

cover that pops off. Behind the cover there are 2-4 mounting screws that must be removed. Once the

thermostat is removed, pull out some of the wire from the wall and take a picture of the thermostat

wiring connections to the original thermostat.

The smaller three button thermostats are mounted on a button mount similar to the EasyTouch

RV mount. Slide the thermostat up and pull away from the wall to remove this thermostat. Once the

thermostat is removed, take a picture if the wiring order so it can be duplicated on the new thermostat.

Using the push button terminals

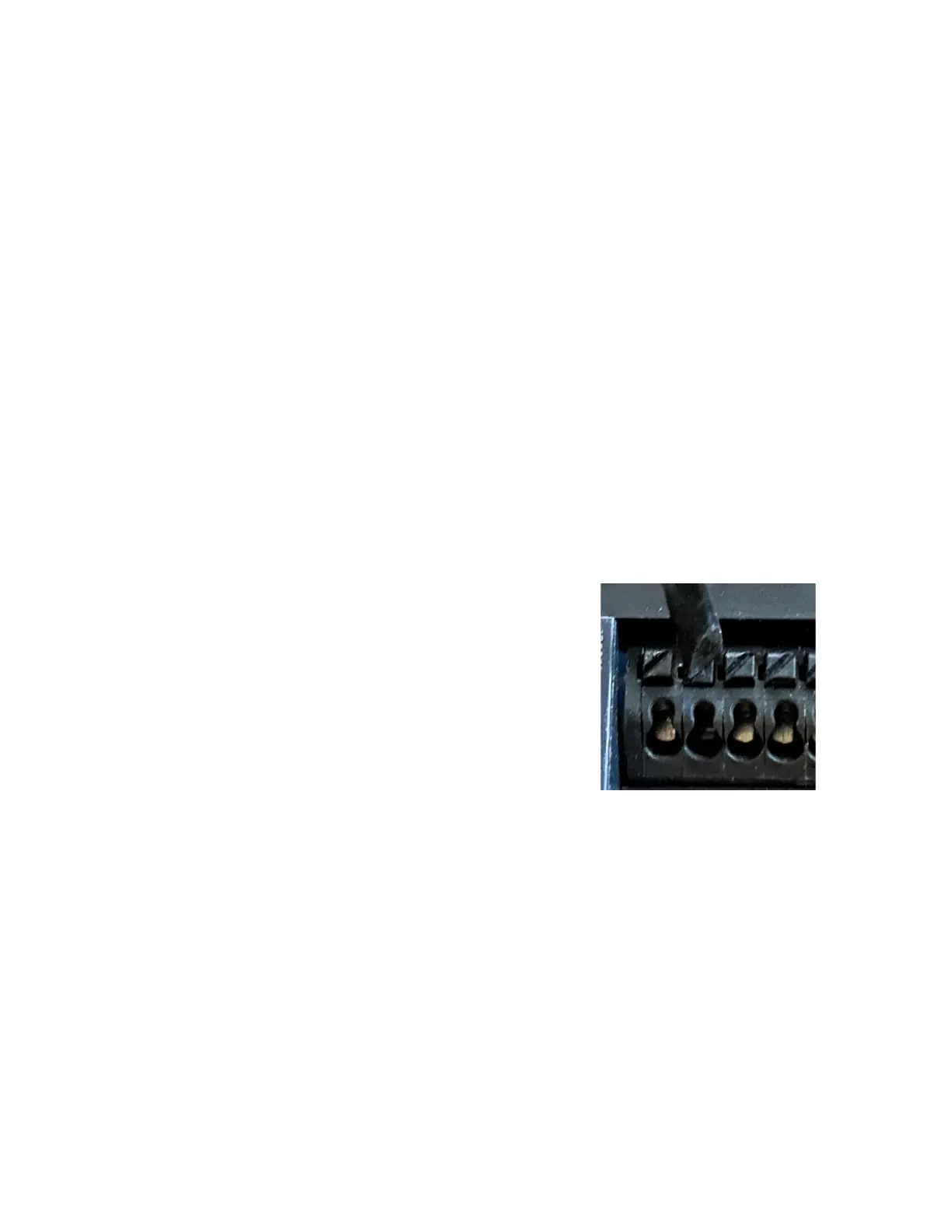

Figure 1 shows a screwdriver depressing the push button

connector. The silver gate is opened for the wire to be inserted.

Releasing the button traps the wire and makes the connection.

Remove approximately 3/8 inch (1cm) of insulation from

the wire to be inserted. Use a small screw driver (not provided) or

similar tool to push down on the square push button. Insert the

wire in the insertion space and release the push button. Verify the

connection by gently pulling on the wire. Do not force excessive

wire down into the connector. If the stripped wire end is longer

than 3/8 inch, cut the end so there is no bare wire sticking out when

properly inserted.

Figure 2

Figure 1
