Page 13
Initial Operation
confocalDT 2421 / 2422

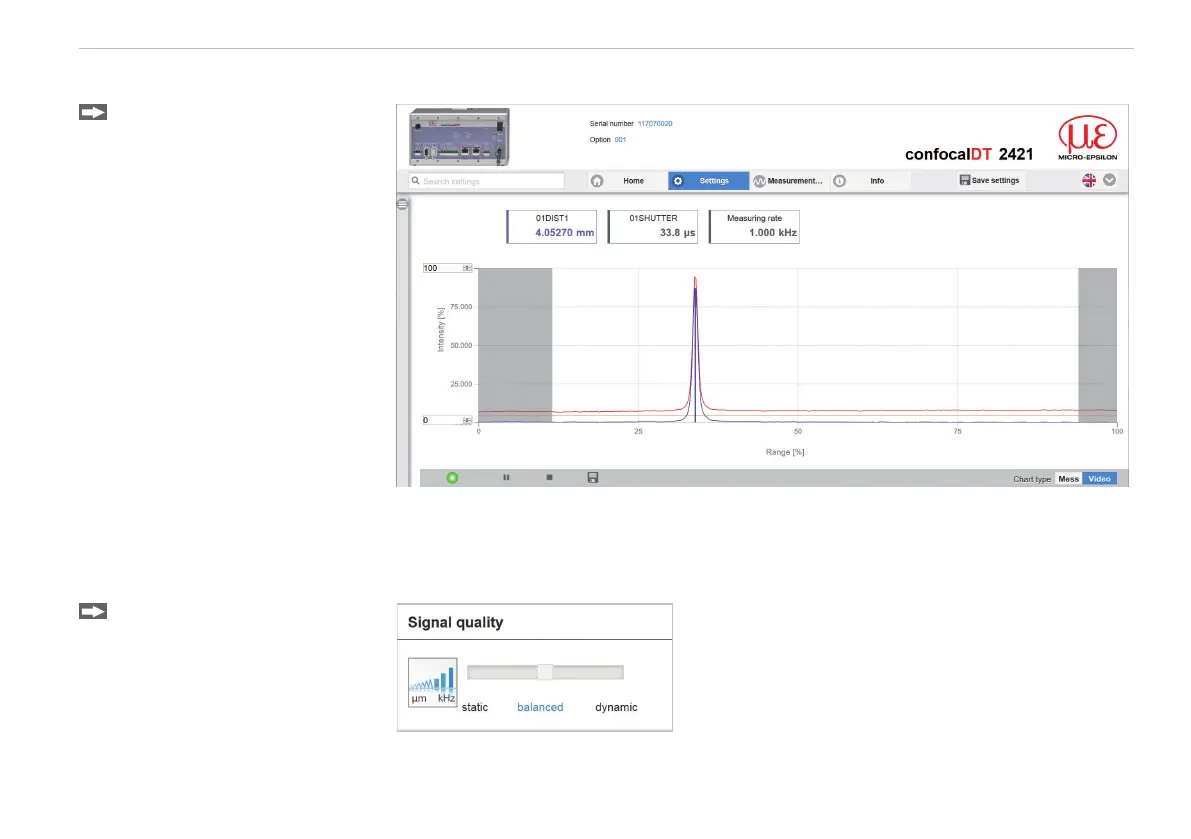

Checking the Video Signal
Go to the Measurement
chart menu. Overlay the
video signal display using
Video. In the Signal se-
lection section, you can
switch between channel 1
(sensor 1) and channel 2
(sensor 2). If required, make
adjustments to the exposure
mode and measuring rate.
Signal Quality
A good measurement result can be achieved if the video signal is sufficiently intense. Reducing the measuring rate
increases the exposure time for the CCD row and thus improves the measurement quality.
Go to the Home > Signal
quality menu and adjust
the measurement dynamics
as required. Monitor the
result in the video signal.
Measuring rate Averaging
Static
200 Hz Moving, 128 values
Balanced
1 kHz Moving, 16 values
Dynamic
6.5 kHz Moving, 4 values
