One-Sided Thickness Measurement, Transparent Target
confocalDT 2421 / 2422
Measurement Chart

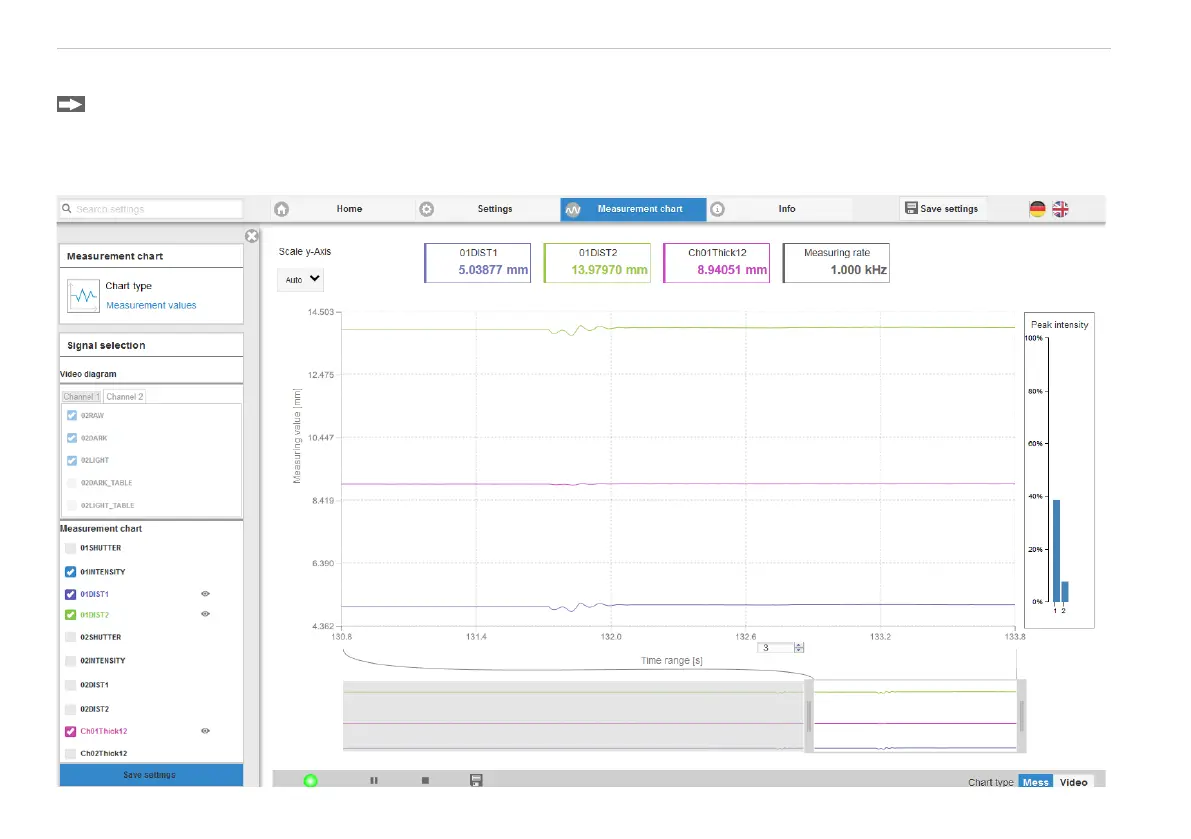

Switch to the Measurement chart tab and select Mess as the chart type.
The web page shows the two distances and the thickness Ch01Thick12 (difference between 01DIST2 and
01DIST1) graphically and numerically. Optionally, the intensities of both peaks (Peak 1 = near, Peak 2 = far) can also
be displayed.
