Page 8
Controller LEDs
confocalDT 2421 / 2422

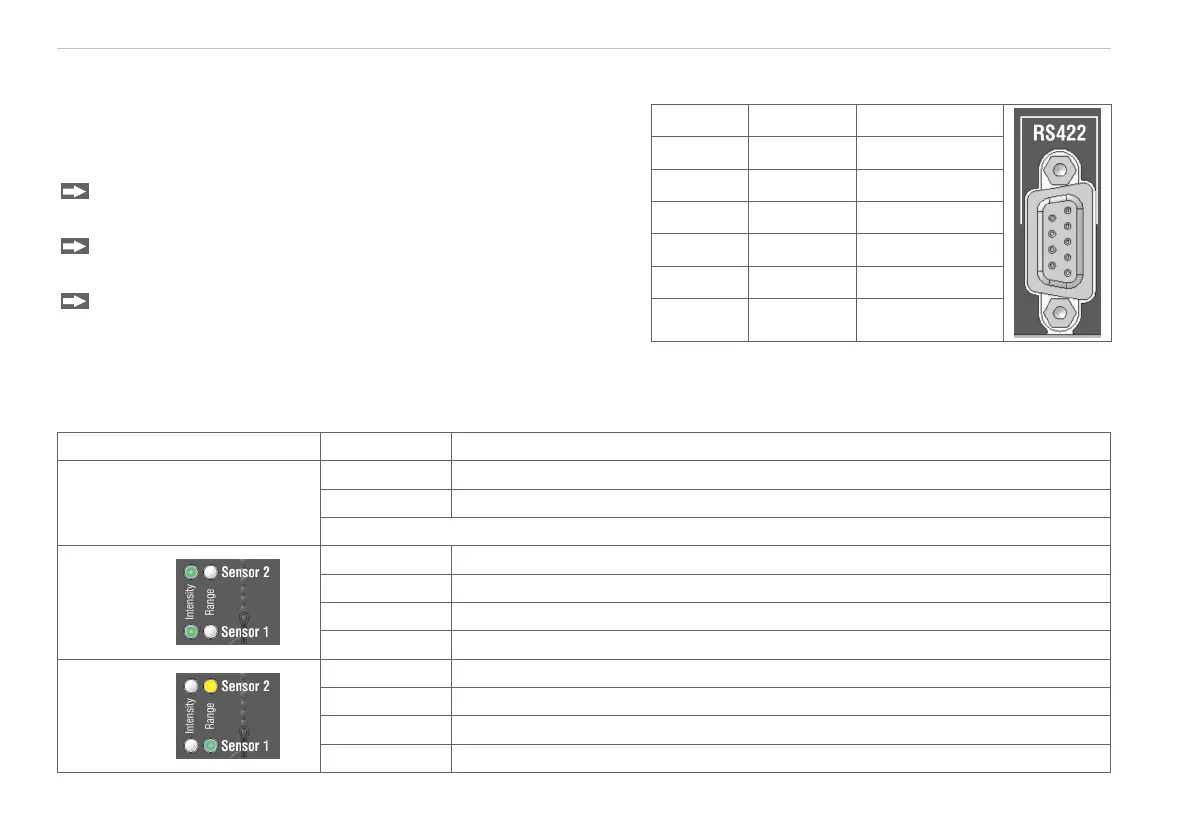

RS422
- Differential signals according to EIA-422, electrically isolated
from the supply voltage.
- Receiver Rx with 120 Ohm internal terminating resistor.
Terminate the transmitter input Tx on the evaluation unit (re-
ceiver) with 90 ... 120 Ohm.
Use a shielded cable with twisted wires.
Cable length less than 30 m.
Connect the ground connections.
i
The pin assignment for the 9-pin D-sub socket is not stan-
dardized.
Pin Name Signal
3 RX - Receiver -
2 RX + Receiver +
5 GND422 Ground RS422
9 TX + Transmitter +
1 TX - Transmitter -
Housing Shield Cable shield
Pin assignment for 9-pin D-Sub socket (RS422)
Controller LEDs
Power on Green Operating voltage present
Status
Off No error
Flashing red Error during processing
If the EtherCAT interface is active, refer to the EtherCAT guidelines for the meaning of the LEDs.
Intensity
Sensor 1/2
Flashing red Dark signal acquisition in progress
Red Signal saturated
Yellow Signal too low
Green Signal OK
Range
Sensor 1/2
Flashing red Dark signal acquisition in progress
Red No target present, outside of measuring range
Yellow Target close to mid of measuring range
Green Target within the measuring range
