System Design, Connection Options
confocalDT 2421 / 2422
General Rules
Do not
- any contamination of the connector, e.g., dust
- apply any mechanical stress to the optical fiber
- curve the cable to a significant extent
Never bend the sensor cable more tightly than the per-
mitted bending radius.
R
If the cable is immova-
bly routed:
R = 30 mm or more
If the cable is movably
routed:
R = 40 mm or more

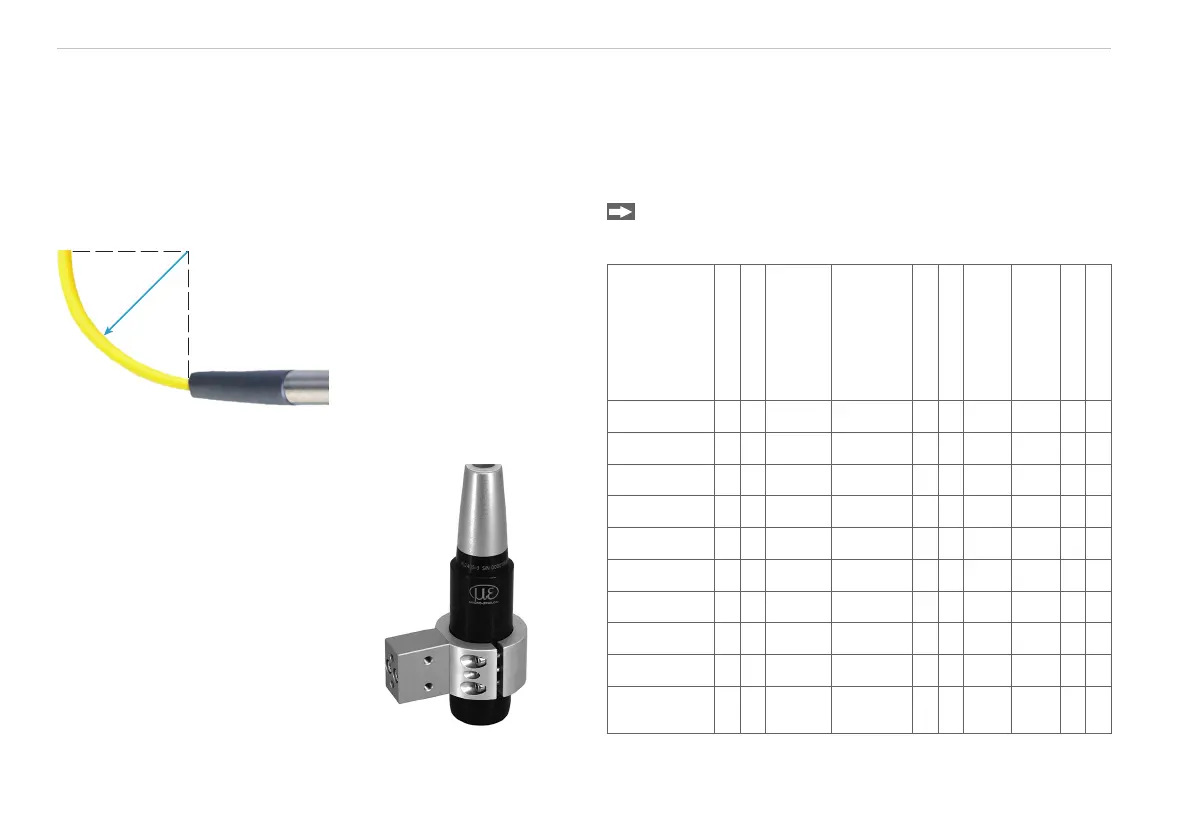

IFS2405 series sensor clam-
ped in an MA2405-x mounting
adapter
Sensor Mounting, Mounting Adapter
IFS240x optical sensors operate in the μm range.
i
Ensure careful handling during installation and
operation!
Install the IFS240x sensors using a mounting adap-
ter or on the mounting surface/mounting thread.
Sensor
IFS2402-x IFS2403-x IFS2404-2 IFS2404/90-2 IFS2407-0,1 IFS2405-0.3 IFS2405-1 IFS2406-3 IFS2406-10 IFS2405-3 IFS2405-6 IFS 2405-10 IFS 2407-3 IFS2405-28 IFS2405-30 IFS2406-2,5 IFS2407/90-0,3
Mounting
adapter
MA2400-27
•
MA2402-4
•
MA2403
•
MA2404-12
•
MA2405-34
•
MA2405-40
•
MA2405-54
•
MA2405-62
•
MA2406-20
•
Mounting
thread
•
