Mechanical Installation
thermoIMAGER TIM
5. Mechanical Installation
The thermoIMAGER TIM is equipped with two metric M4 thread holes on the bottom side (6 mm depth) and
can be installed either directly via these threads or with help of the tripod mount (also on bottom side).
i
The tightening torque of the M4 screws for mounting the TIM camera should be between 1 ... 1.5 Nm
and must not exceed 2 Nm.
5.1 Dimensional Drawings

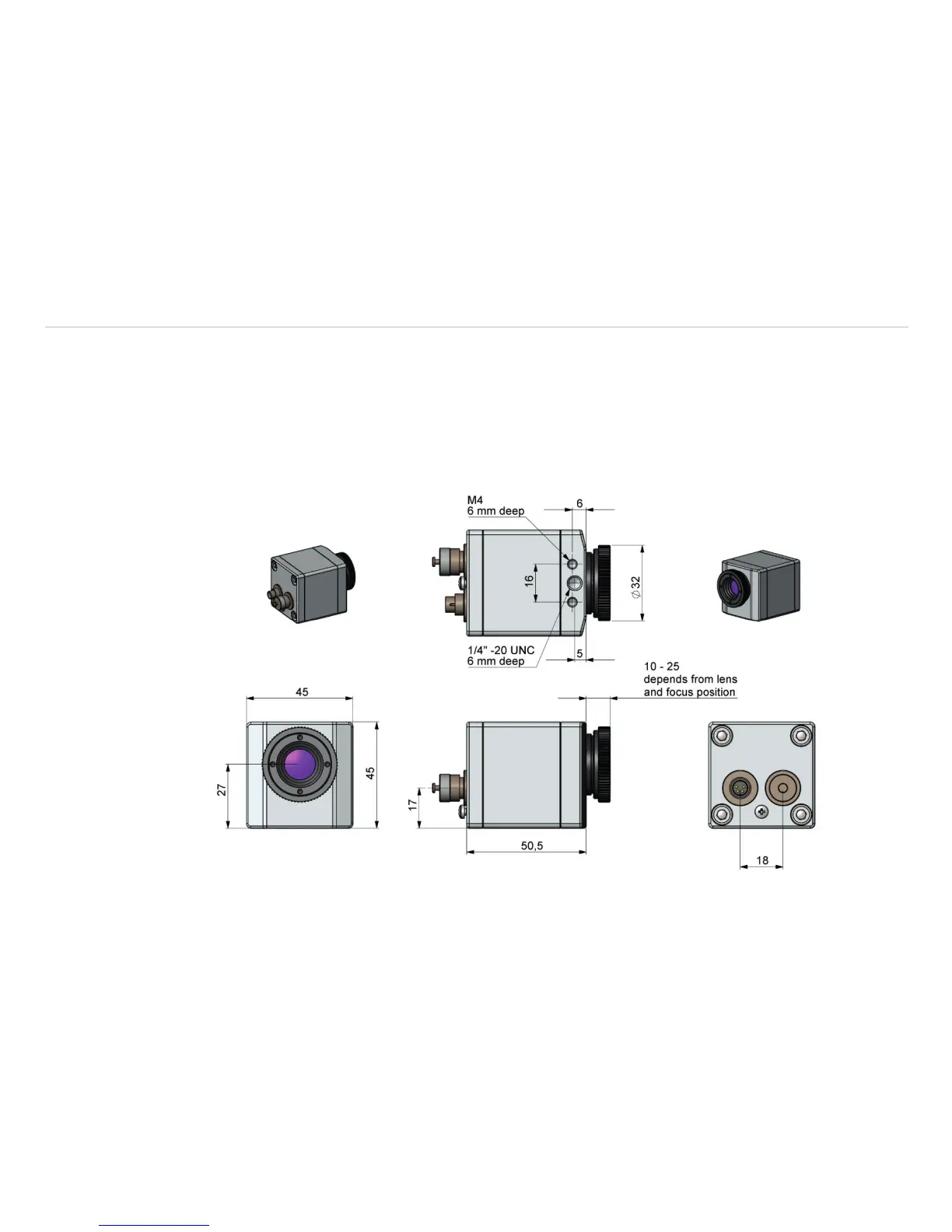

Fig. 10 Dimensional drawing TIM 160, dimensions in mm, not to scale
