Appendix | Process Interface
thermoIMAGER TIM
A 13.2 Digital Input
DIG IN [grey]
GND [brown]

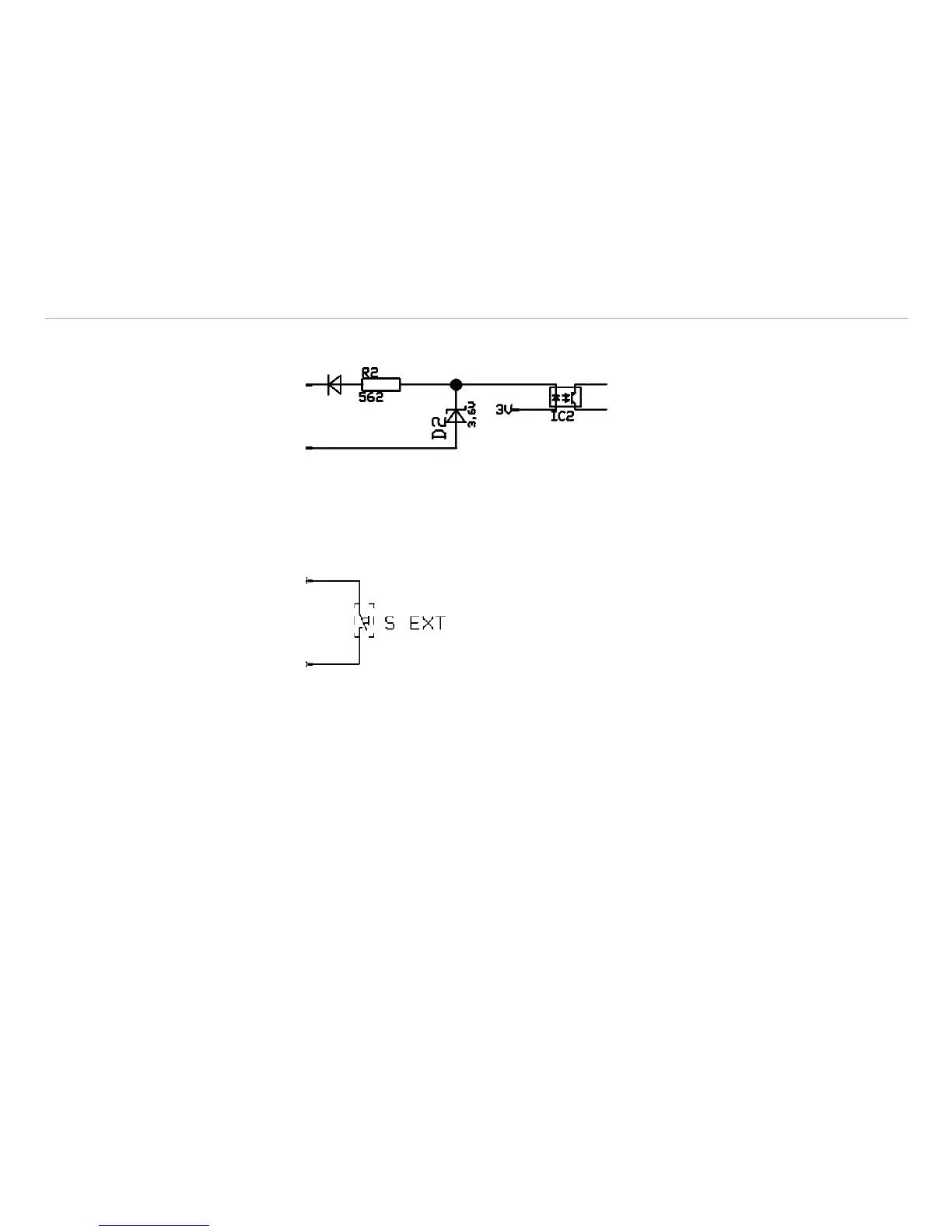

Fig. 47 Digital input
The digital input can be activated with a switch to the TIM GND or with a Low level CMOS/TTL signal:
- Low level 0 … 0.6 V
- High level 2 … 24 V
DIG IN [grey]
GND [brown]
Fig. 48 Diagram 2 - Digital input
