MICRO-EPSILON TIM 200 User Manual

Page 93
Appendix | Process Interface
thermoIMAGER TIM
A 13.4 Relay Output on Industrial Interface [TM-PIF500V2-TIM]
The analog output has to be set to Alarm.
The voltage level for AO1 - AO3 can be set in the software:
- no alarm: 0 V
- Alarm: 2 – 10 V
REL1-3 (D01-D03): Umax = 30 VDC
Imax = 400 mA

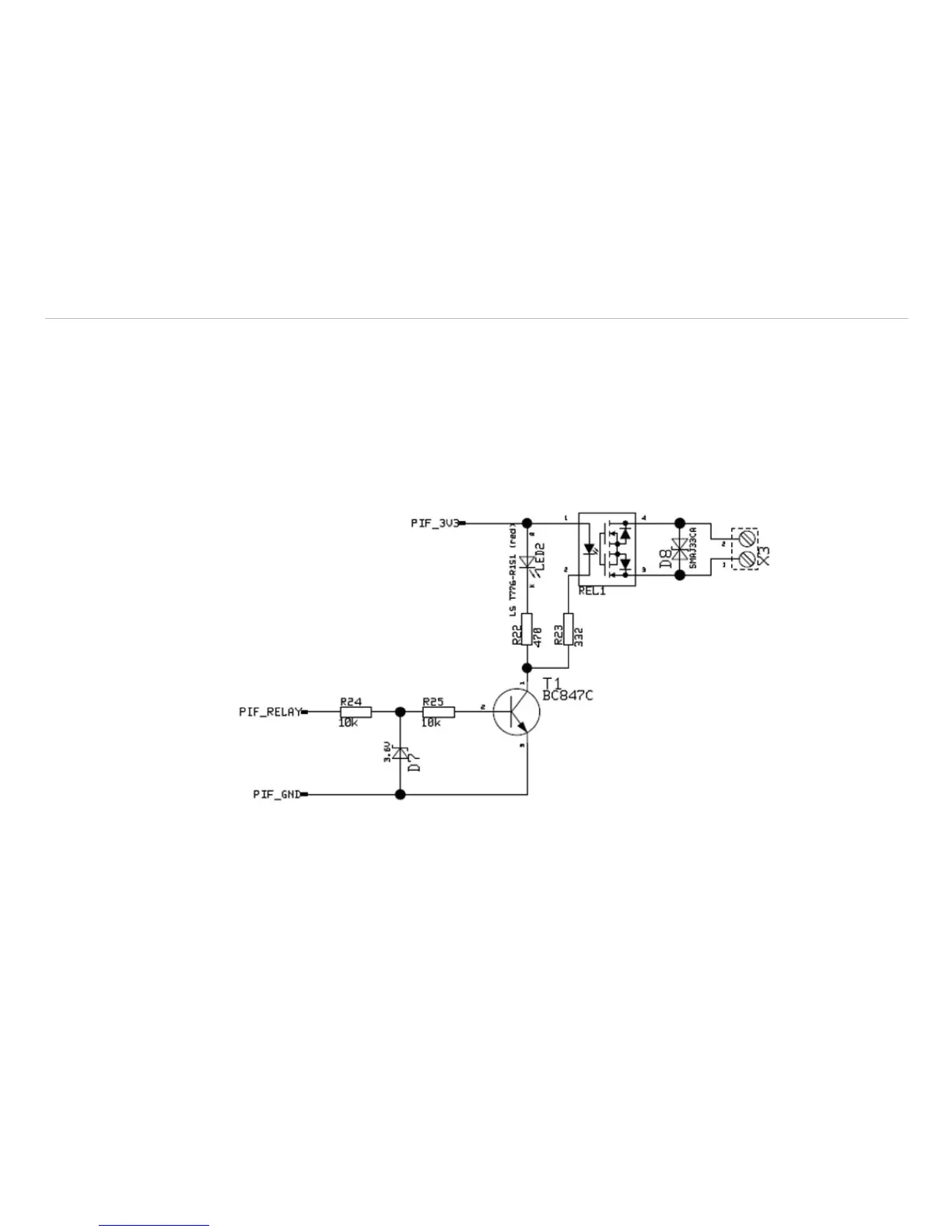

Fig. 50 Relay output
