AN3118
APPENDIX U: I
2
S CLIENT WITH
MCLK
I
2
S mode can be set to Host or Client mode. I
2
S MCLK
can be enabled both in I
2
S Host mode and I
2
S Client
mode in the Config GUI tool (see following figure).

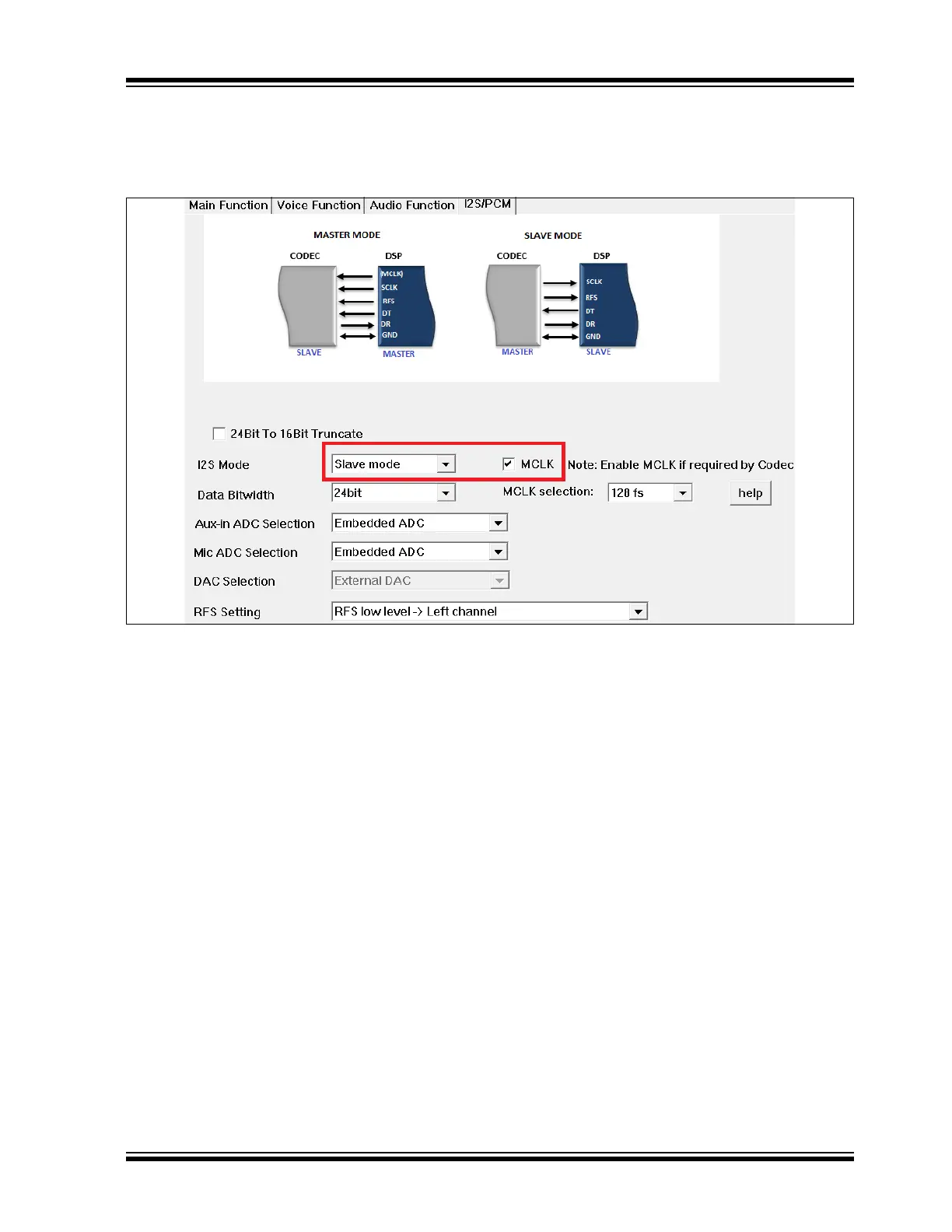

FIGURE 118: I
2
S CLIENT WITH MCLK
