2021 Microchip Technology Inc. DS00003118C-Page 14
AN3118
4. When the device is selected as a peripheral/
central, “grouping” is displayed as the Group
Status (see Figure 10). Then, the Red LED will
start flashing on the BM83 EVB. Repeat this
step for the other peripheral.

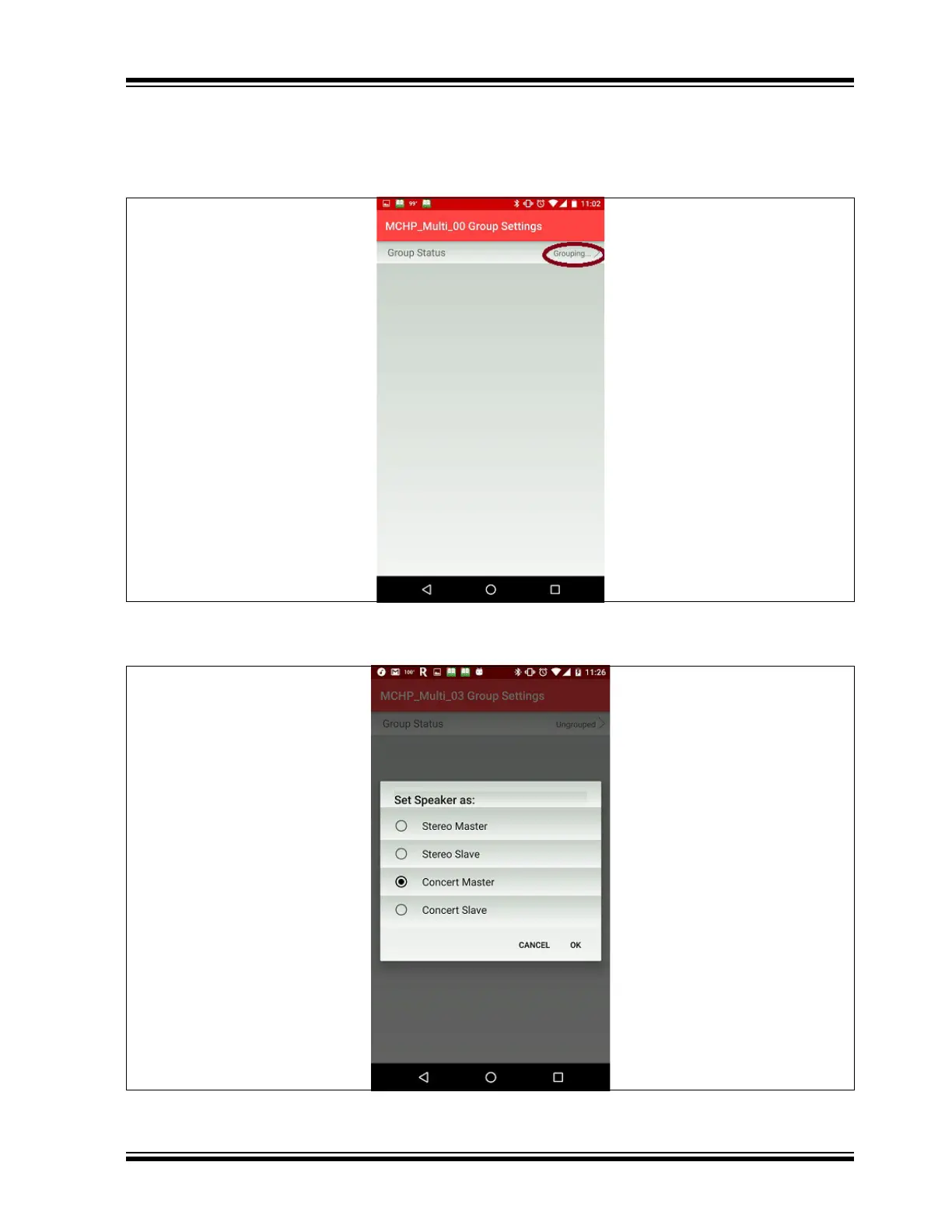

FIGURE 10: GROUPING PERIPHERAL/CENTRAL
5. Select Concert Master to assign one of the BM83 EVB as a central, see Figure 11.
FIGURE 11: SELECTING CONCERT CENTRAL
