 2021 Microchip Technology Inc. DS00003118C-Page 55
AN3118

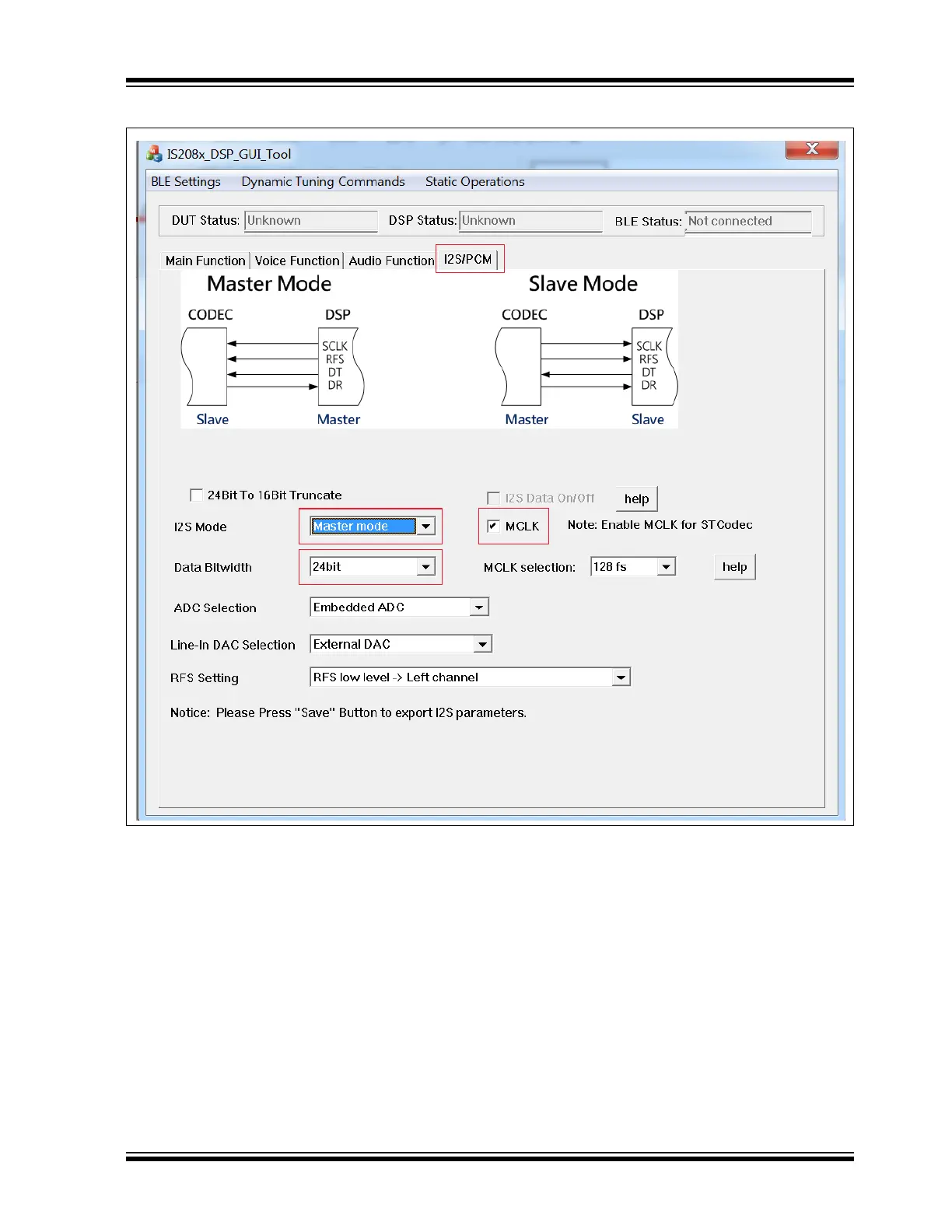

FIGURE 58: IS208X DSP CONFIGURATION TOOL - I
2
S/PCM MODE SELECTION
Note 1: Configure the I
2
S for Host mode by selecting “I
2
S Mode” as Master mode, as illustrated in Figure 58.
1
2
3
4
