2021 Microchip Technology Inc. DS00003118C-Page 88
AN3118
APPENDIX O: ENABLING
INTERNAL DSP
AUDIO EFFECTS
Internal DSP audio effects can be enabled as shown in
the following figure. The “Audio Effect - Mask
Selection” is to select the combinations of audio
effects, that can be selected by checkboxes All Off,
MB-DRC, AW and All On. “Default Audio Effect”
parameter is to select the initial audio effect mode, after
the device is power-on.

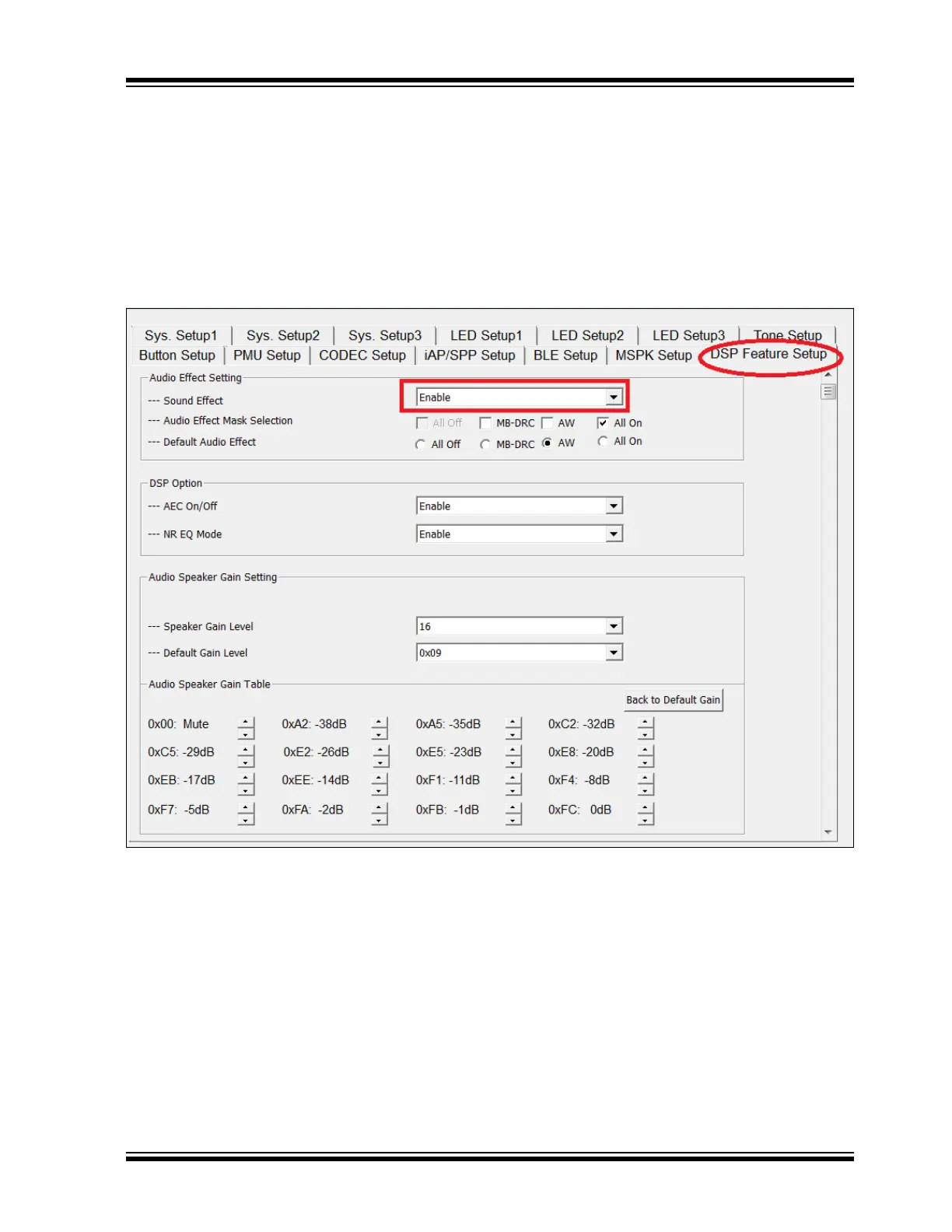

FIGURE 99: ENABLING INTERNAL DSP AUDIO EFFECTS
