RN4870/71
DS50002489G-page 14  2016-2023 Microchip Technology Inc.

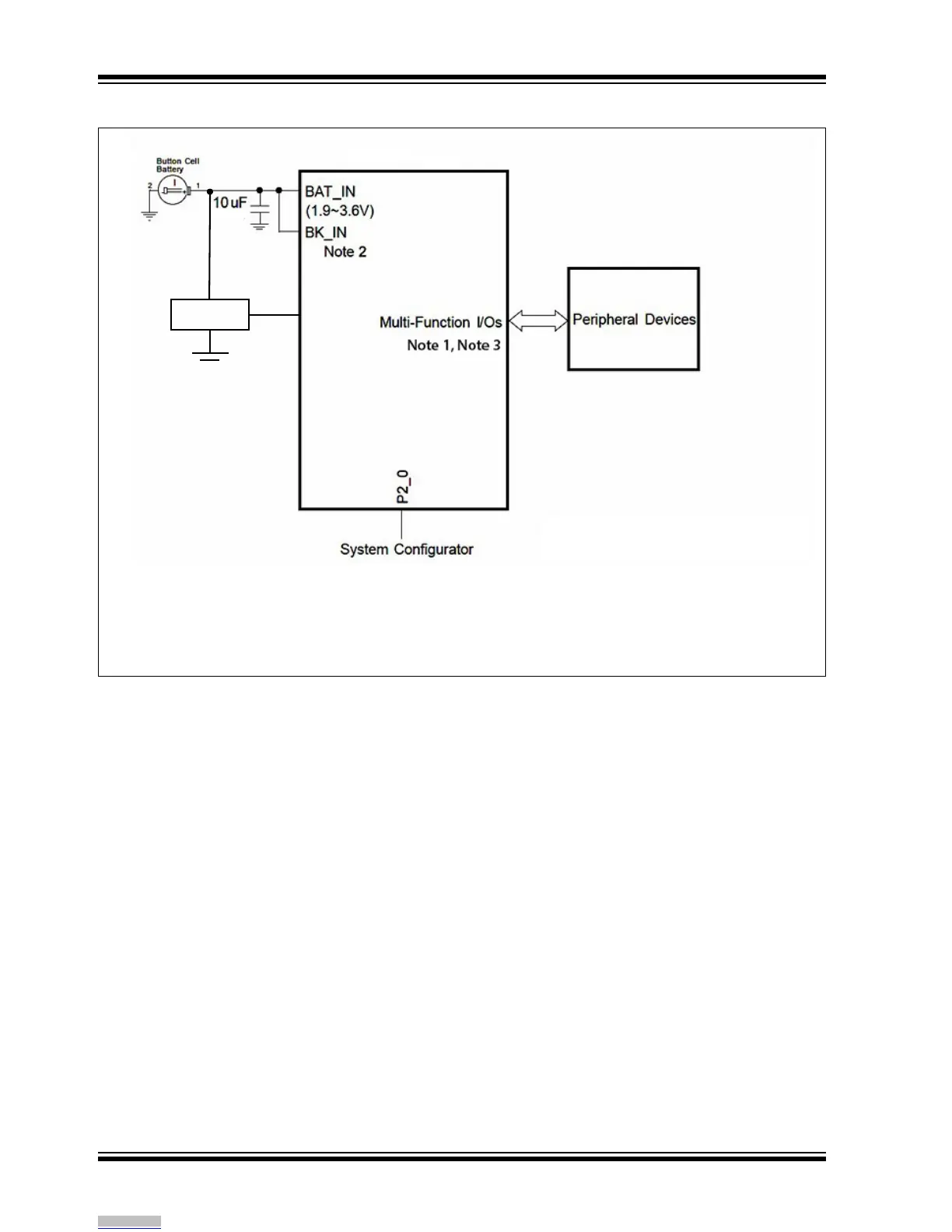

FIGURE 3-2: RN4870/71 COIN CELL POWER SCHEME
The Configuration pins on the RN4870 can also be
configured through a Windows
®
based User Interface
(UI) configuration tool, BLEDK3.
RN4870/71
Note 1: Application includes ADC, PWM (RN4870) and I
2
C bus interface.
2: BK_IN connection is needed only for RN4871U.
3: To implement low-power operation, enable the UART_RX_IND pin and connect to ground.
Reset IC
Reset
