STEPS to connect to a split 120V bus electrical panel for COMPACT and GRANDE.
2. Connect the Power Pak’s AC Output (L1, L2, and Neutral) to the electrical panel with 3 pieces of wire,
size AWG 8. Distinguish L1, L2, and Neutral spots when wiring. Also connect the ground. See Figure
below: L1 (red), L2 (black), Neutral (blue), and Ground (copper).
3. The Power Pak’s AC Outputs should each be connected to a 40A double breaker in the electrical panel
for the COMPACT; for the GRANDE each AC Output should be connected to a 80 A double breaker in
the panel.
4. The Neutral should be connected to the neutral busbar in the electrical panel.
5. There are two AC receptacles on the Power Pak that can be used independently from the electrical
panel. Each receptacle can operate up to 15A at 120V AC.

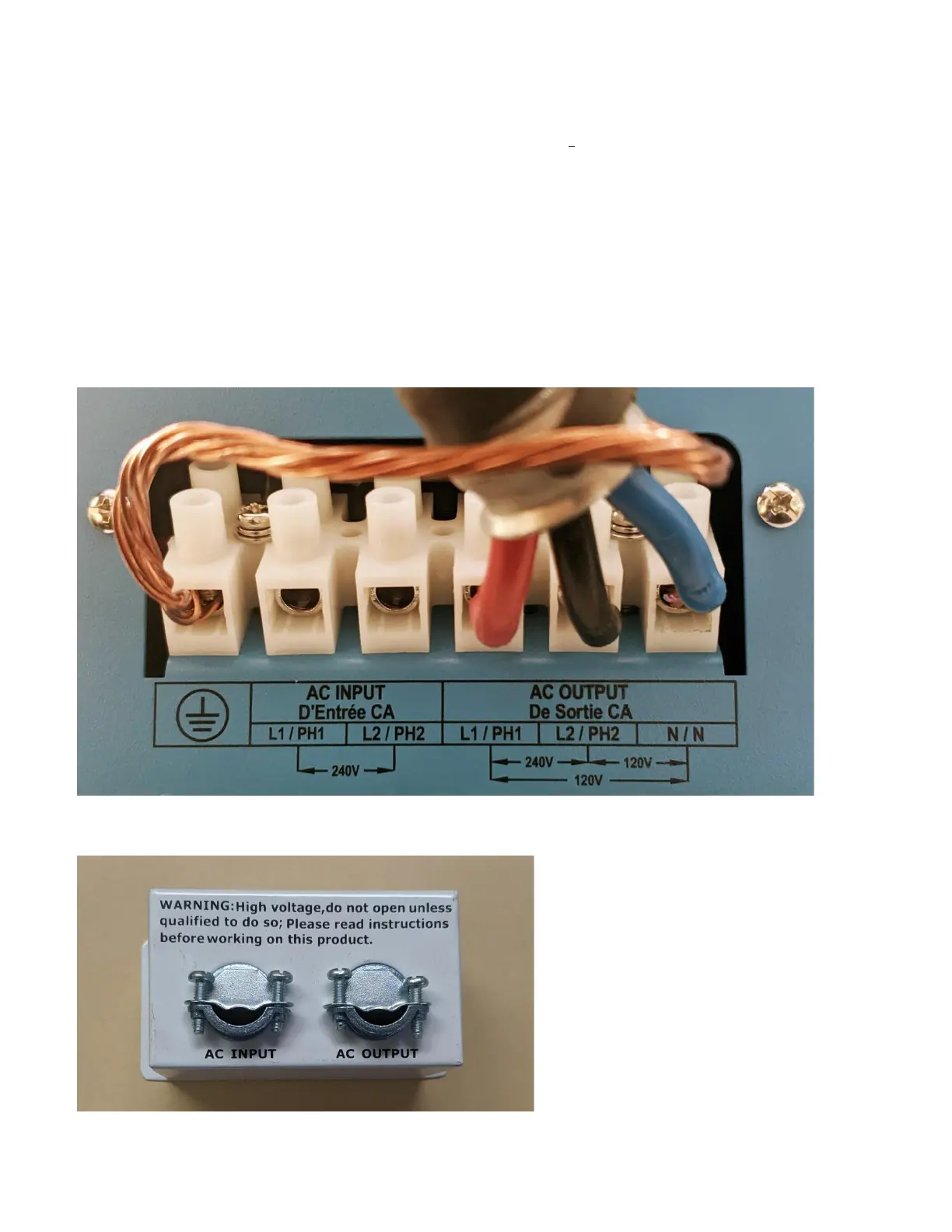

Figure: AC Wiring connections for a 2-line electrical panel
When all the Input and Output connections have been completed, intall the AC Cover. See Figure below.
Figure: AC Cover
