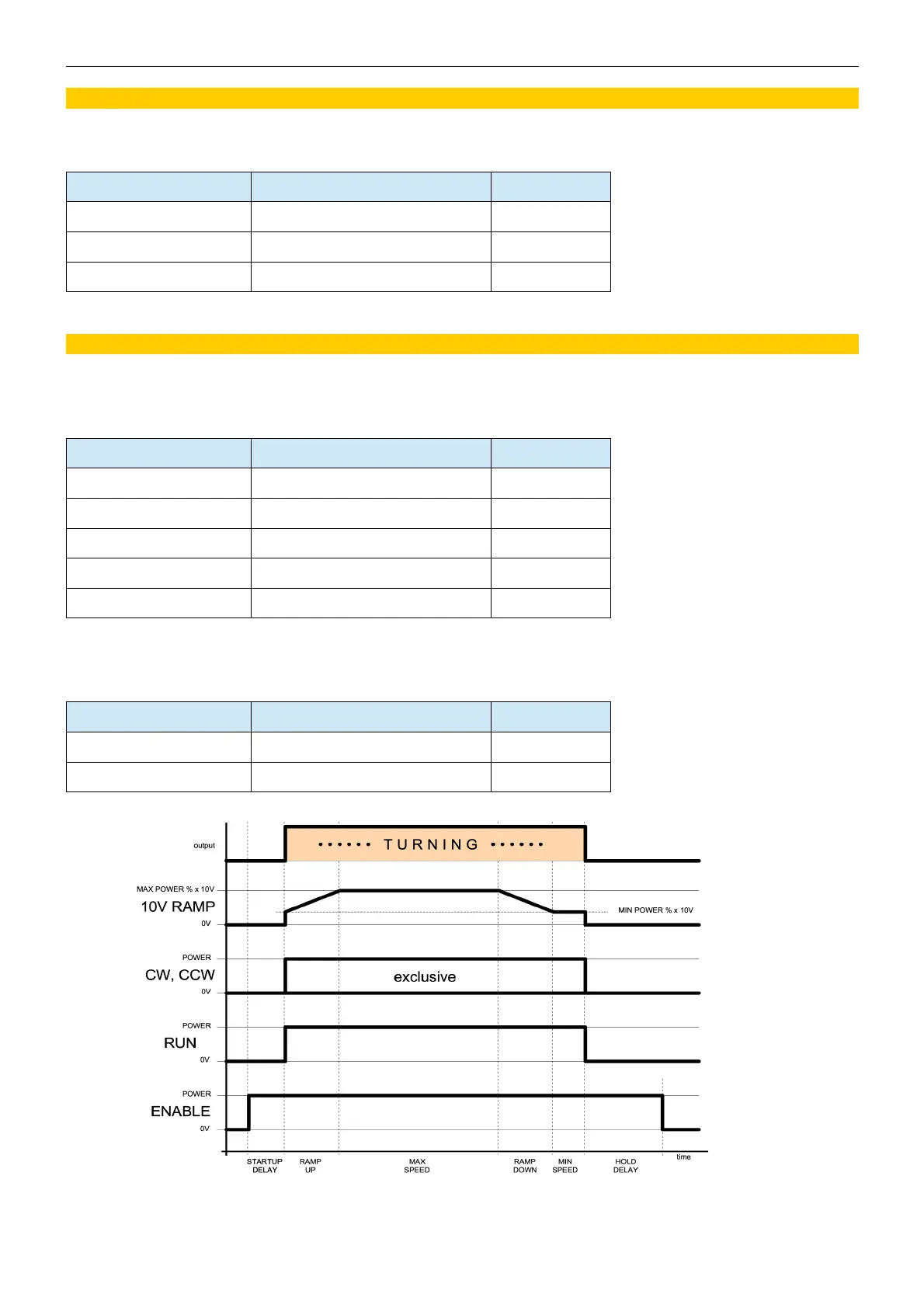

MOTOR: MODBUS
Wiring for MODBUS RTU controlled inverter, connects D-SENSOR connector
INVERTER PORT D-SENSOR PORT NAME PIN NUMBER
MOD + MOD + 8
MOD - MOD - 7
COM GND 9
MOTOR: INVERTER
Wiring for standard inverter with direction movement control. Motor voltage selects output
control level.
INVERTER INPUT ROTATOR PORT NAME PIN NUMBER
CW MOTOR A 6
CCW MOTOR C 4
ENABLE MOTOR B 7
RUN MOTOR D 5
COM NEG COM 10
If inverter has no build in ramps, ARCO can provide industrial 0-10V output at D-SENSOR
connector.
INVERTER INPUT D-SENSOR PORT NAME PIN NUMBER
RAMP RAMP OUT 15
COM GND 9
