Appendix D: Serial Port Extension
The pMDDL can support a second serial port by utilizing a FT234XD USB to serial UART interfaced to the
USB lines of the pMDDL. The sample circuit below shows how this is done.

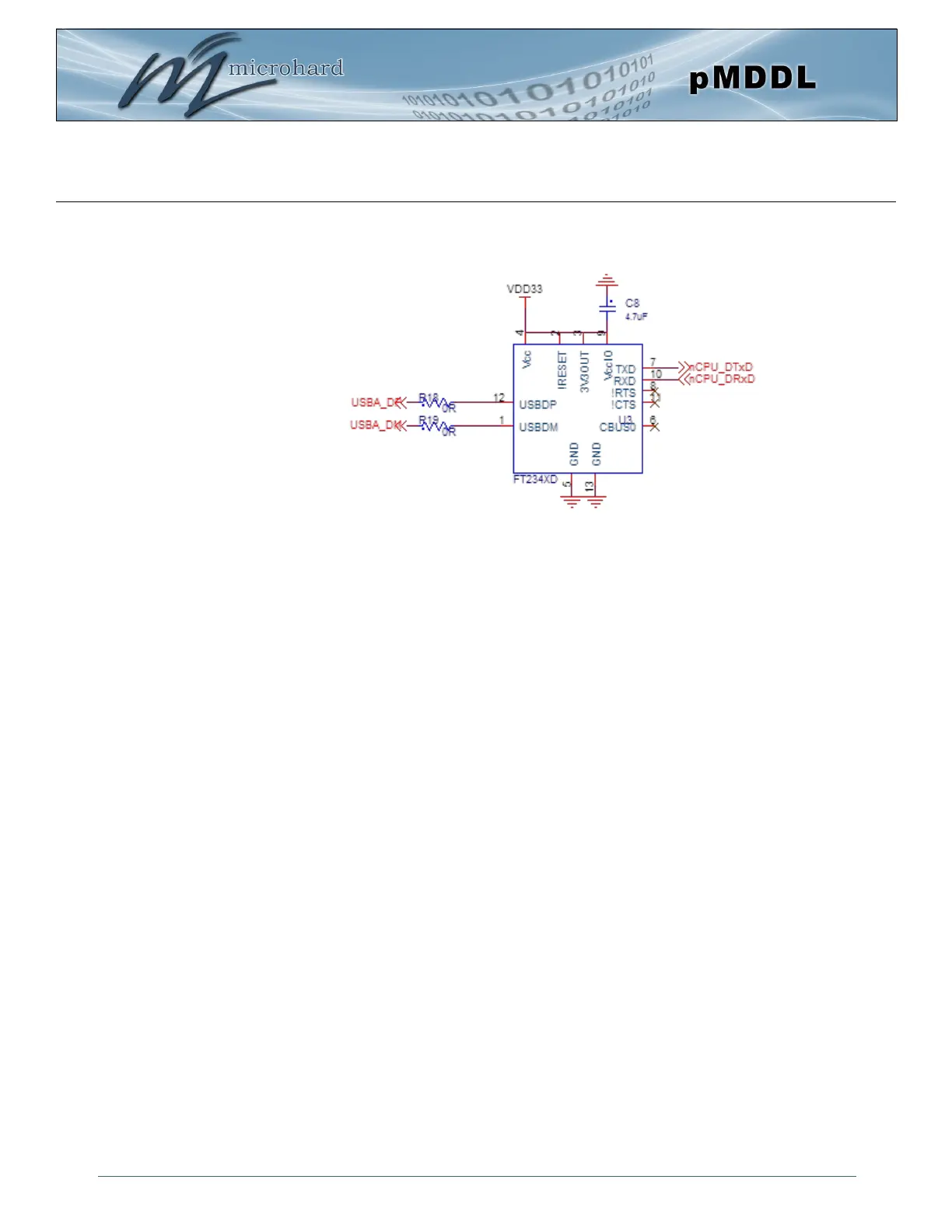

Drawing App-D: FTDI USB to Basic UART
