3.0 Hardware Features
19.91
30.0734.39
28.04
2.18
3.1.3 Recommended Solder Paste Pattern

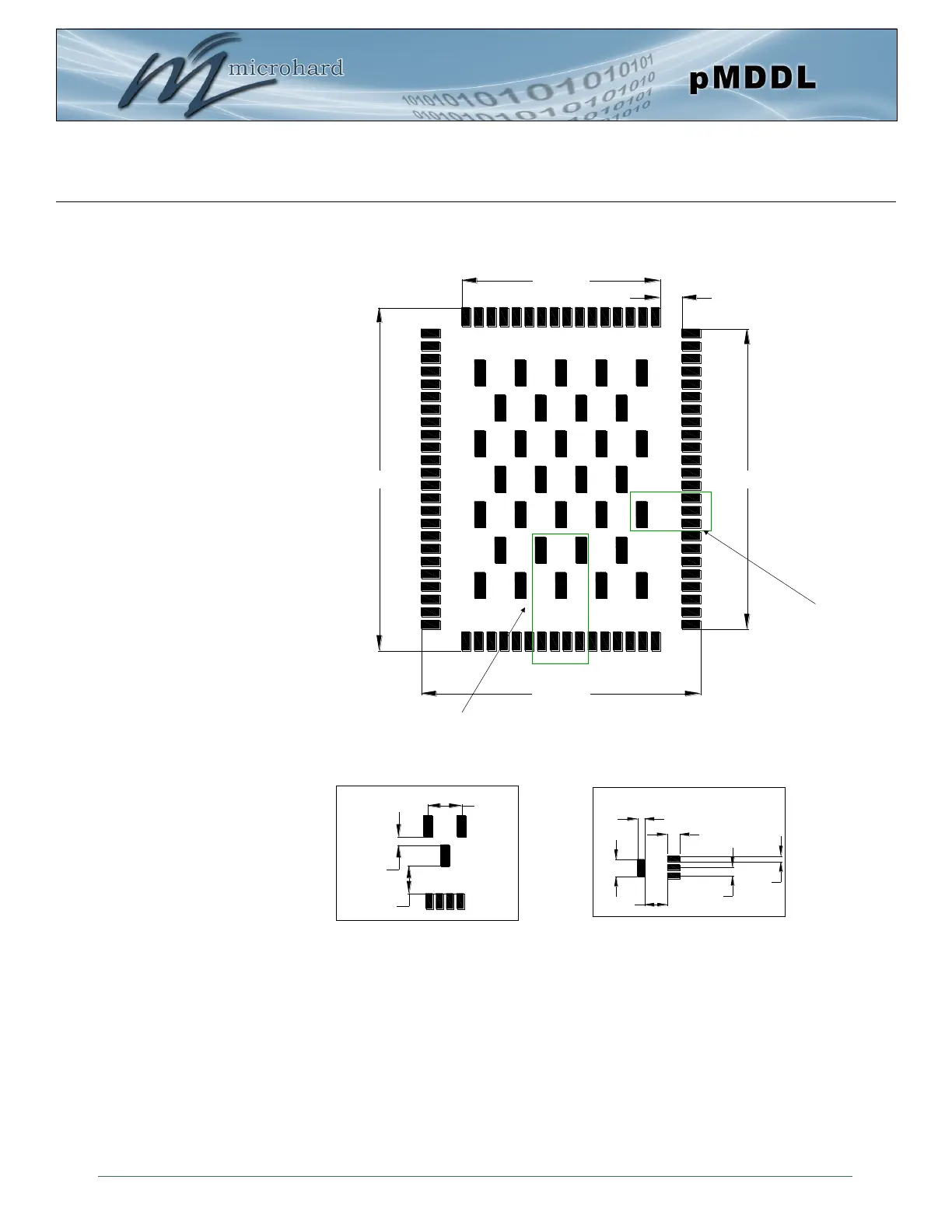

Drawing 3-3: pMDDL Recommended Solder Paste
Units: millimeters
Detail
(C)
Detail
(C)
3.1.4 OEM Connectors
Antenna
All pMDDL OEM Modules use an UFL connector for the antenna connection.
Data
The interface to the pMDDL OEM module is a tight integration using 80 pad SMT connections.
Detail
(D)
Detail
(D)
1.88
2.55
1.27
1.03
0.86
3.50
3.38
4.12
1.00
