WWHHAATT IISS AA ZZOONNEE??
Throughout these instructions the term ZONE is used, meaning a defined area of protection. A zone can be one room, or any number of rooms,
connected to the same connection on the control panel. With this system there are 2 areas you can guard and a 24-hour anti-tamper guard.

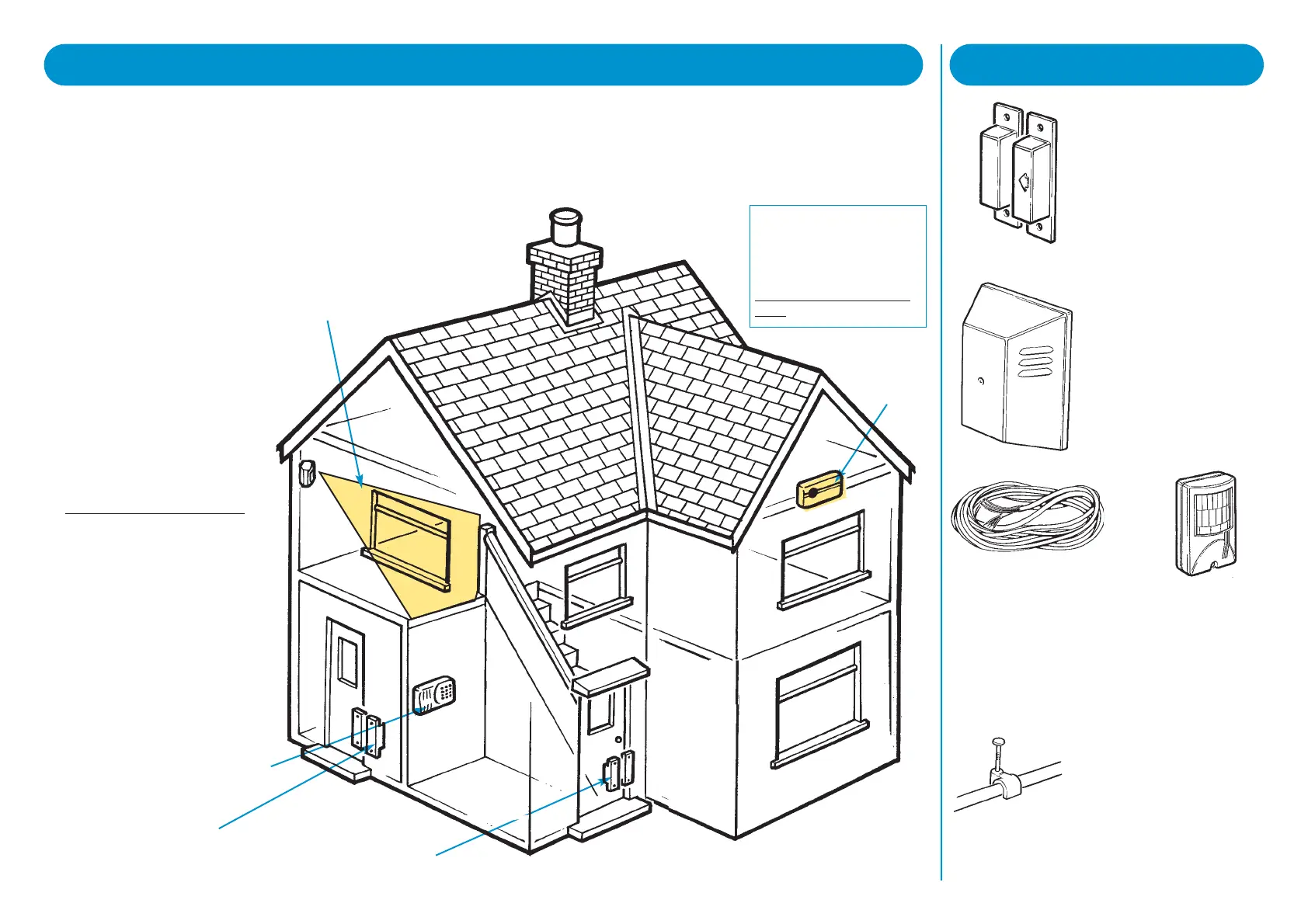

The PIR detects movement of people or animals in the detection zone. Door contacts can be used to detect door or window entry in either zone. See the
diagram to help you plan your system.
IIMMPPOORRTTAANNTT PPOOIINNTTSS TTOO
CCOONNSSIIDDEERR
When planning your system and
before installation consider the
following points:
•
TThhiiss ssyysstteemm iiss ddeessiiggnneedd ttoo uussee
oonnllyy 11 PPIIRR ppeerr zzoonnee..
• Make zone 1 the Entry/Exit zone.
• Do not position PIRs facing
windows, in direct sunlight, above
a heat source such as radiator, or
in conservatories or draughty
areas.
• Where possible keep pets out of
areas protected by PIR sensors
when armed.
• Position control panel near a
power socket.
NNoottee::
This alarm must only be
used when powered by the mains
adaptor, the internal battery
operates as a stabilizing back up
supply in the event of short periods
of power loss, and will not run the
system over a long period.
In the event of an activation during
a power loss period all of the zone
LEDs will illuminate when you
disarm the system. You will have to
reset the system using your
personal security code.
2
PLANNING YOUR SYSTEM ACCESSORIES
MMMM99445522
SSuurrffaaccee mmaaggnneettiicc ddoooorr
ccoonnttaaccttss..
2 terminal single reed.
White high impact
plastic. 4 fixing screws
and 2 adhesive pads
included.
MMMM2233004477
PPIIRR sseennssoorr
8 metre range,
3 terminal
connections
SSiirreenn ccoovveerrss
MMMM99445555
’C’ type. White
polypropylene
MMMM99446611
’C’ type. Yellow
polypropylene
MMMM99445533 -- 44 ccoorree aallaarrmm
ccaabbllee
30m alarm cable.
NNoott ffoorr
uussee wwiitthh mmaaiinnss vvoollttaaggee..
White sheath, 4 core
(red/black/blue/yellow).
NNoottee:: ddiissrreeggaarrdd tthhee bblluuee
wwiirree oonn tthhiiss kkiitt..
MMMM99445544 -- 3300 ccaabbllee cclliippss
3.5mm flat. White
Extra door contacts can be
used with and without PIRs.
Extra door contacts are
available as accessories.
SSIIRREENN
ZZOONNEE 11
Use this as your entry/exit
zone. Door contacts.
ZZOONNEE 22
PIR and/or door
contacts.
We suggest that outside
doors are protected by a
door contact, as 71% of
entries are made through a
door.
Home Of
fice statistics, Jan.
2001.
CCOONNTTRROOLL
PPAANNEELL
