7

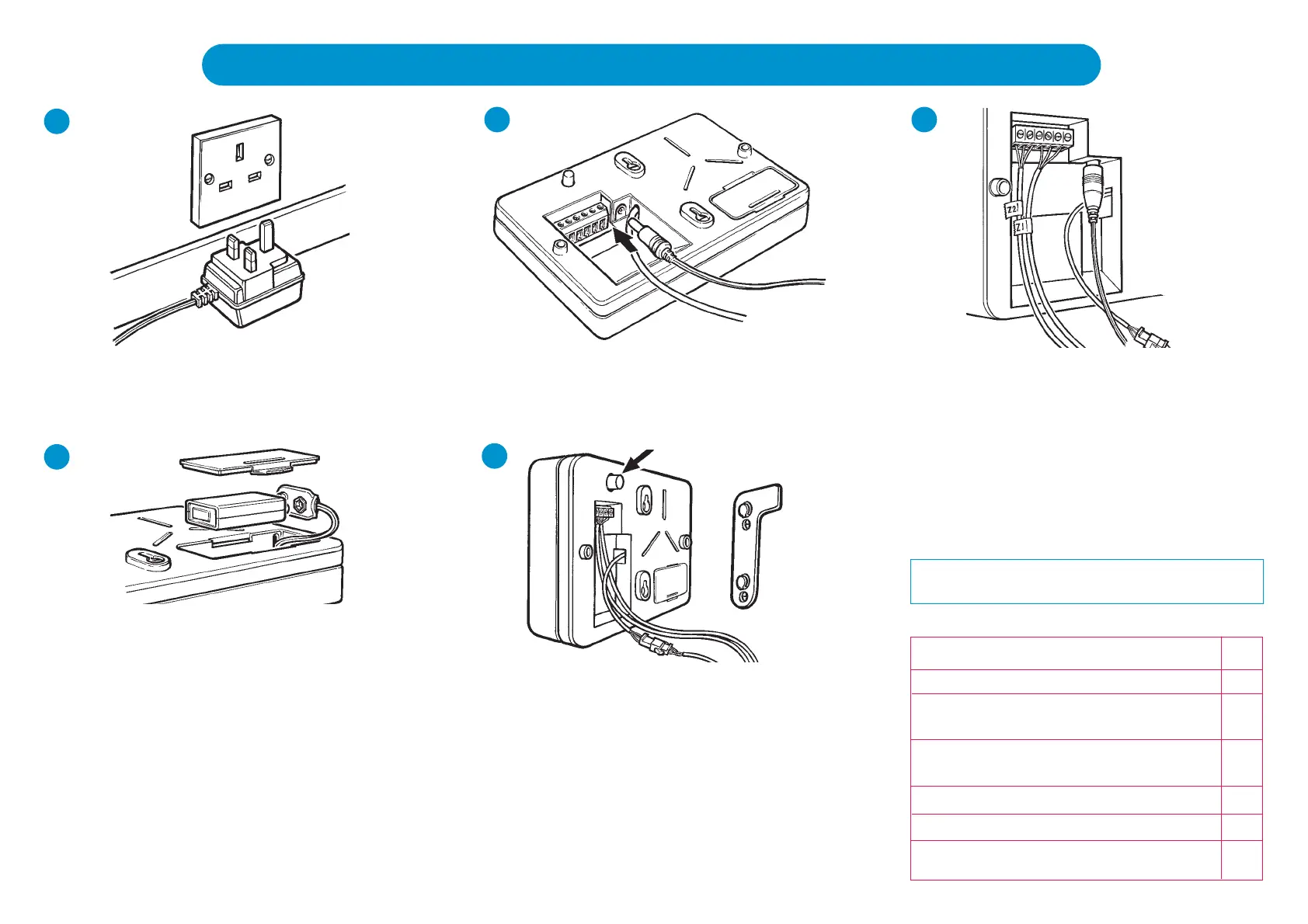

WIRING THE CONTROL PANEL
Ensure that the mains adaptor from the control panel
is unplugged. During all wiring, panel must be
switched off.
1
Plug the mains adaptor jack plug into the socket on
the back of the control panel.
2
Take the labelled wires and connect them into their
respective zones marked on the terminal block, using
the folllowing code for the wiring:
Connect the red wires into the terminal marked + or
red.
Connect the black wires into the terminal marked – or
black.
Connect the yellow wires into the terminal marked
yellow.
3
Tape down the anti-tamper spring before connecting the
back-up battery (when the battery is connected the panel
produces a bleep), otherwise as soon as the back-up
battery is connected in the control panel, the anti-tamper
sounds. If the siren does sound then:-
PPrreessss 11112222
to disarm.
Open the battery compartment cover and fit a Duracell
PP3 9 volt alkaline battery (not supplied). Replacement
batteries must be of a Duracell alkaline type. Make sure
that terminals on the connector are connected to the
correct terminals on the battery.
NNeevveerr uussee rreecchhaarrggeeaabbllee
bbaatttteerriieess..
PPLLEEAASSEE NNOOTTEE::
TToo mmaaiinnttaaiinn ooppttiimmuumm sseeccuurriittyy,, tthhee bbaatttteerryy
sshhoouulldd bbee cchheecckkeedd rreegguullaarrllyy aanndd rreenneewweedd eevveerryy yyeeaarr..
4
Check all wiring connections are tight in the terminal
block. Remove the tape from the anti-tamper spring
and place the control panel on the mounting bracket.
TThhee aallaarrmm wwiillll ssoouunndd wwhheenn tthhee sspprriinngg iiss rreelleeaasseedd,,
uunnttiill tthhee ccoonnttrrooll ppaanneell mmaakkeess aa ffiirrmm ffiitt aaggaaiinnsstt tthhee
bbrraacckkeett ddeepprreessssiinngg tthhee aannttii--ttaammppeerr sspprriinngg..
The anti-tamper spring will ‘click’ when it is
depressed.
PPrreessss 11112222
to silence the alarm, then
pprreessss 11112222
to
reset the panel.
5
CHECK LIST
Is mains adaptor unplugged at wall socket?
Have you plugged mains jack plug into
control panel?
Are red, black and yellow wires connected
to the correct terminals in control panel?
Is battery back-up in control panel?
Is control panel firmly attached to the bracket?
Is anti-tamper spring fully compressed?
If additional cable is required, use 4-core alarm
cable (see accessories) and cut short the blue wire.
Anti-tamper spring
