CHECKING THE SYSTEM – BELL TEST MODE
CHECKING THE SYSTEM – WALK TEST

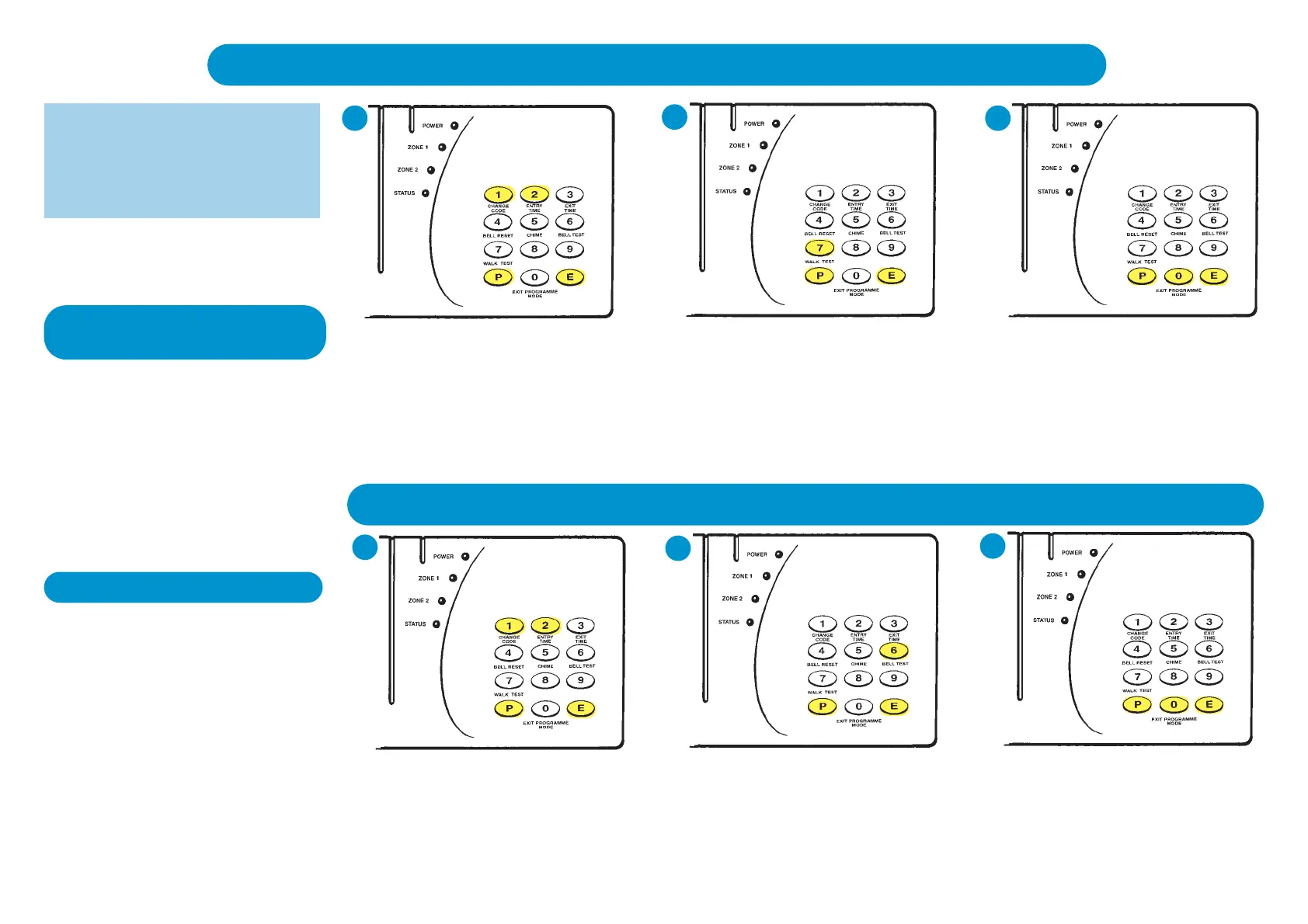

In this mode you can test each zone without
the alarm sounding. The zones that you
enter or open will show on the control panel
by a flashing LED and a bleep sound.
PPrreessss PP 11112222 EE ttoo eenntteerr pprrooggrraammmmiinngg..
PPrreessss PP 77 EE
Open a door with a door contact fitted, or
enter an area where a PIR is fitted. The
control panel will bleep twice and the
Zone LED will illuminate.
Repeat the procedure for each zone to
check correct operation.
In this mode you can test the control panel
siren and the outside siren to hear them
working.
PPrreessss PP 11112222 EE ttoo eenntteerr pprrooggrraammmmiinngg..
PPrreessss PP 00 EE ttoo eenndd tteesstt
The control panel returns to
programming mode with flashing
SYSTEM ARMED LED on Zone 1 and 2.
PPrreessss PP 00 EE aaggaaiinn ttoo eexxiitt pprrooggrraammmmiinngg..
PPrreessss PP 66 EE
Zones 1 and 2 LEDs will flash with the control
panel siren and the outside siren sounding
for 15 seconds.
PPrreessss PP 00 EE ttoo eenndd tteesstt
The internal buzzer will temporarily sound a
constant tone for 3 seconds.
The control panel returns to programming
mode with flashing STATUS LED.
PPrreessss PP 00 EE aaggaaiinn ttoo eexxiitt pprrooggrraammmmiinngg..
1
2
1
2
3
3
Plug the adaptor from the control panel
into the mains socket and switch on.
The power LED on the control panel will
light showing that programming can
begin.
If for any reason the sirens sound,
pprreessss 11112222
to disarm.
TOTAL IMMOBILISATION
OF SYSTEM
Should it be necessary to totally
immobilise the system in the alarmed
state (e.g. forgotten you password):
aa..
Unplug from mains.
bb..
Remove control panel from fixing
bracket, and remove the back-up battery.
If you are unable to get the system to
reset, contact the Micromark Helpline.
TThhee ssttaattuuss ooff tthhee rreedd PPOOWWEERR LLEEDD oonn tthhee
ccoonnttrrooll ppaanneell iiss aass ffoolllloowwss::
OONN
Power on
OOFFFF
No transformer supply
TThhee mmeeaanniinngg ooff tthhee rreedd SSTTAATTUUSS LLEEDD oonn
tthhee ccoonnttrrooll ppaanneell iiss aass ffoolllloowwss::
OONN
24-hr fault, or reset
required
OOFFFF
Normal
FFLLAASSHHIINNGG
Program mode
CONTROL PANEL STATUS
