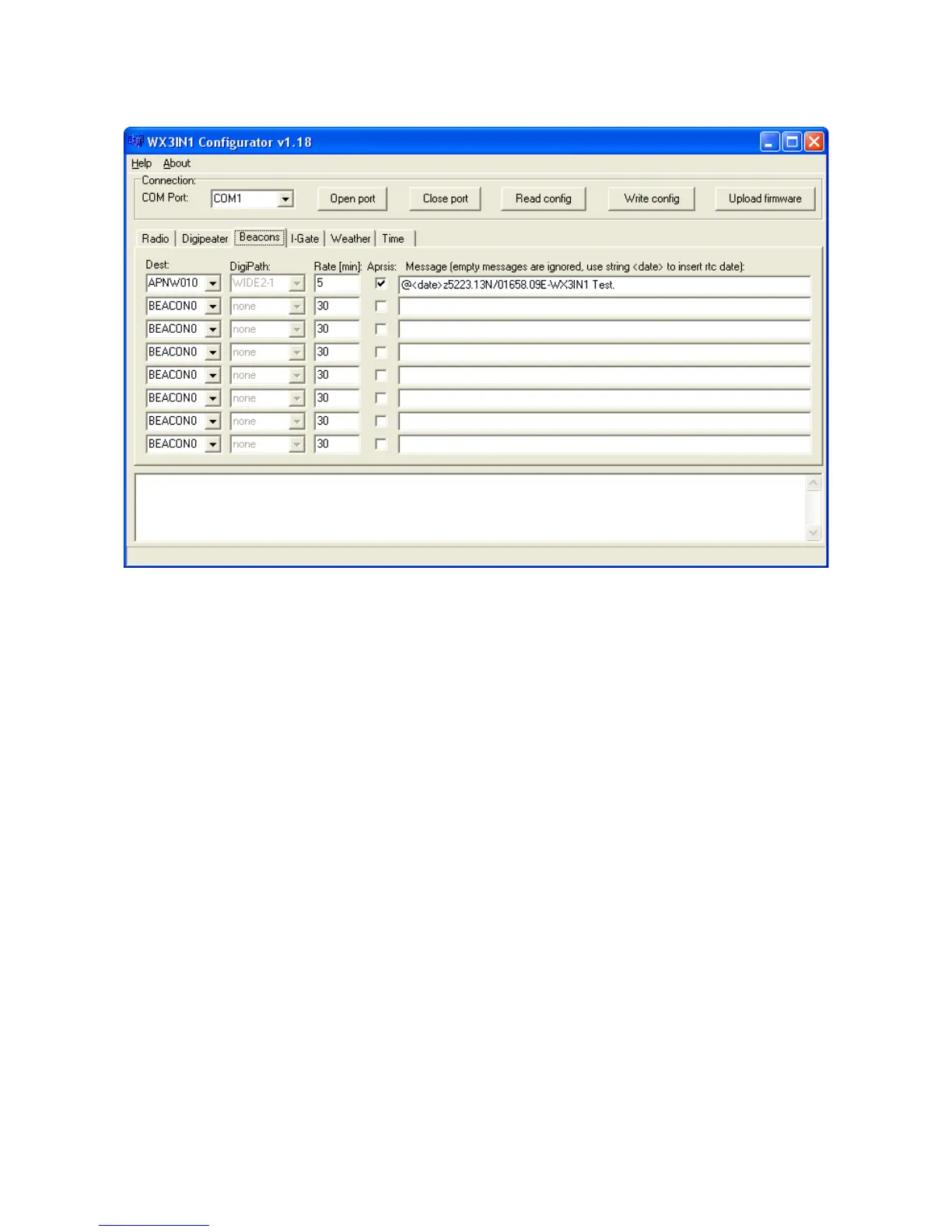

7.7. Beacon Settings
• Dest – The destination address when sending beacons, objects, status, etc. We
can choose a destination address of APNW01 or BEACON. When frames are sent
with the path (eg, WIDE2-2), we can only choose APNW01 as a destination
address, which identifies the device as WX3in1,
• DigiPath – APRS path,
• Rate (min) – Parameter, expressed in minutes, in which we determine how often
the data frame will be sent,
• Aprsis – You can also choose whether, in addition to the radio path, the frame will
be sent also to the APRS-IS server,
• Message – Frame structure field, when the field is empty then the frame is not
sent.
The following explanation of how to enter data in the message field.
To properly generate a frame structure, please read the information on the APRS frames.
I recommend the website of the polish group's founder Andrew Bartosz SP3LYR APRS,
where all is nicely described (in polish): http://www.aprs.pl.
Example frame:
@<date>z5223.13N/01658.09E_WX3IN1 Test.
• @ - APRS data ID,
• <date>z – time and date in the format DDHHMM (day / hour / minute), time is not
13
