Engineering Specifications

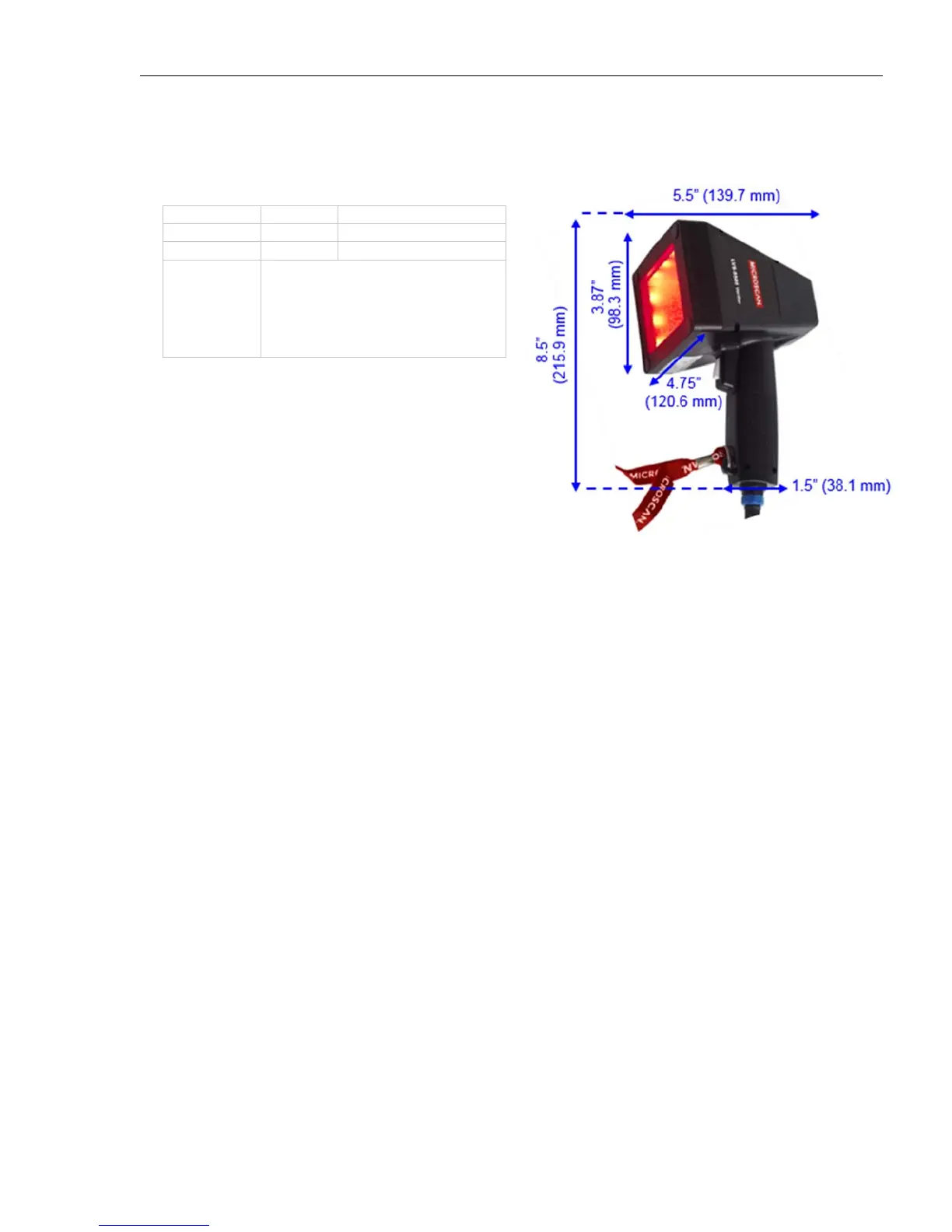

Physical Properties
Height 8.5” 215.9 mm
Width 4.75” 120.6 mm
Depth 5.5” 139.7 mm
Weight
 Unpackaged Weight = 15.5 oz (.44
kg)
 Shipping weight (includes all items
packaged in shipping box, such as
cables, manuals, etc.) = Approx. 4
pounds (1.81 kg)
Imaging Device
 5 megapixel camera
 Object Distance: Contact
Field of View
 3.0” (76.19 mm) horizontally
 2.25” (57.15 mm) vertically
 1.75” x 1.75” (44 mm x 44 mm) for DPM (direct part mark)
software selection
Minimum Barcode X Dimension
 1D = 4.0 mils (0.10 mm)
 2D = 5.9 mils (0.15 mm)
Minimum PC Requirements
(PC Supplied by Customer)
 Windows
®
7 Pro SP1, Windows
®
10 Pro
 Intel
®
Core™ i3 Processor or equivalent
 4 GB RAM
 800 x 600 Resolution
 One available USB 2.0 port
Power Requirements
 USB-Powered 5VDC @ 400mA
Light Source
 LVS-9580: Red 660 nm filter
 LVS-9585: Red dome (660 nm); White dome, 30º angle
Communication
 USB 2.0 A/MINI-B cable 2.0 m (6.5 ft.)
Operating Temperature
 -5º C (23º F) to 45º C (113º F)
Storage Temperature
 -20º C (-4º F) to 60º C (140º F)
Relative Humidity
 Operating: 20% to 80% (non-condensing)
 Storage: 20% to 95% (non-condensing)
Calibration
 EAN/UPC Calibrated Conformance Test Card
Safety Compliant
 RoHS/WEEE compliant
 CE
