LVDS Signal Evaluation
UG0048 User Guide Revision 5.1 18
6.3 Measurement Results
The following figure shows the LVDS signal across the 100 Ohm termination resistor at 300 Mbps. The
eye height across the termination is about 275 mV which is well within the LVDS specification.

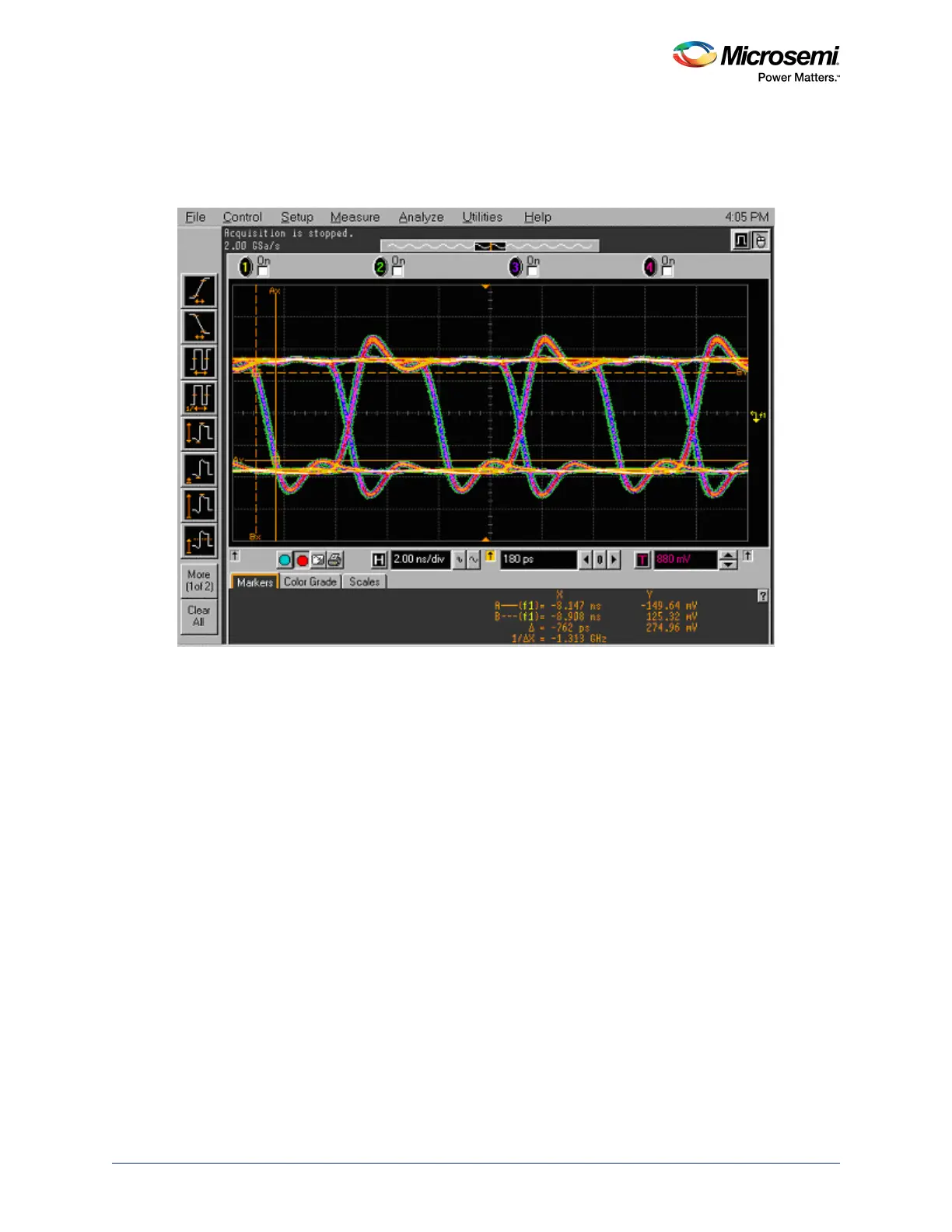

Figure 6 • LVDS Signal across RX Termination at 300 Mbps
