1.2 Machine main parts and assemblies instruction
1.2.1 Carriage assembly
Carriage assembly is the key part of print unit and the carrier of print heads. When carriage is back to home position, the
carriage assembly is just above of capping pump station with cap top sealed with print head nozzles surface. The
movement accuracy of carriage assembly is controlled by encoder strip and raster encoder.

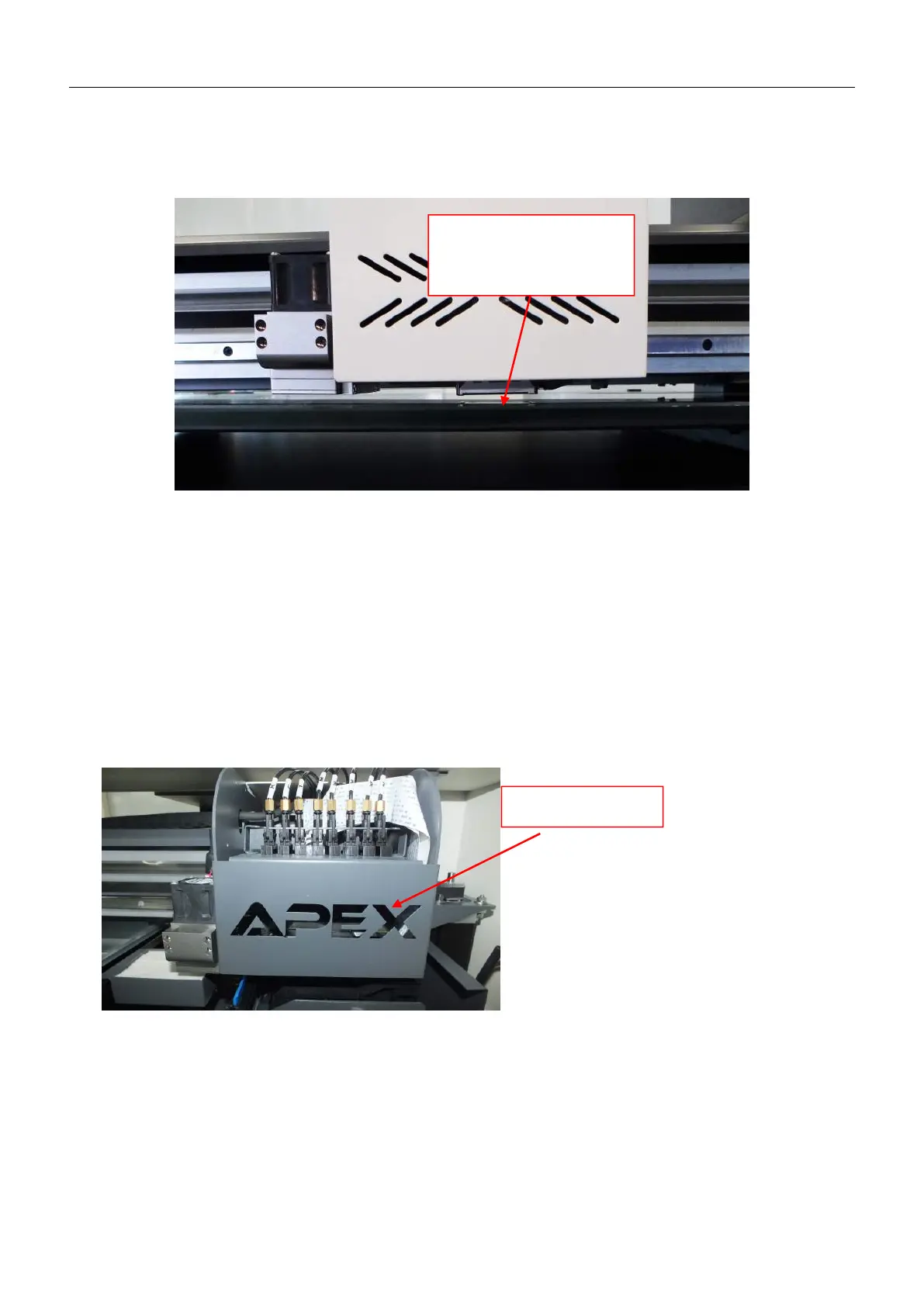

Carriage
the print gap between print
head and print object set to
1-2mm
Carriage
