Microtest 6378 User Manual

2–1
2. INTRODUCTION
The 6375 Series LCR Meter provide 4-terminal (Kelvin) measurement of passive components
over the frequency range 20Hz to 100kHz (6375) or 200kHz (6376) or 20Hz to 500KHz(6377)
or 20Hz to 1MHz(6378) or 20Hz to 10MHz(6379) for AC measurements, the measurement
drive level can be varied from 10mV to 2V rms.
The meter’s measurement, display and control facilities include:
 spot frequency measurements
 multi-step measurements at a number of user-defined steps
 display of actual measurement values
 display of measurement results in absolute terms or as the percentage difference from a
specified nominal value
 bar graph analogue display for easy adjustment of variable components—spot frequency
measurements only

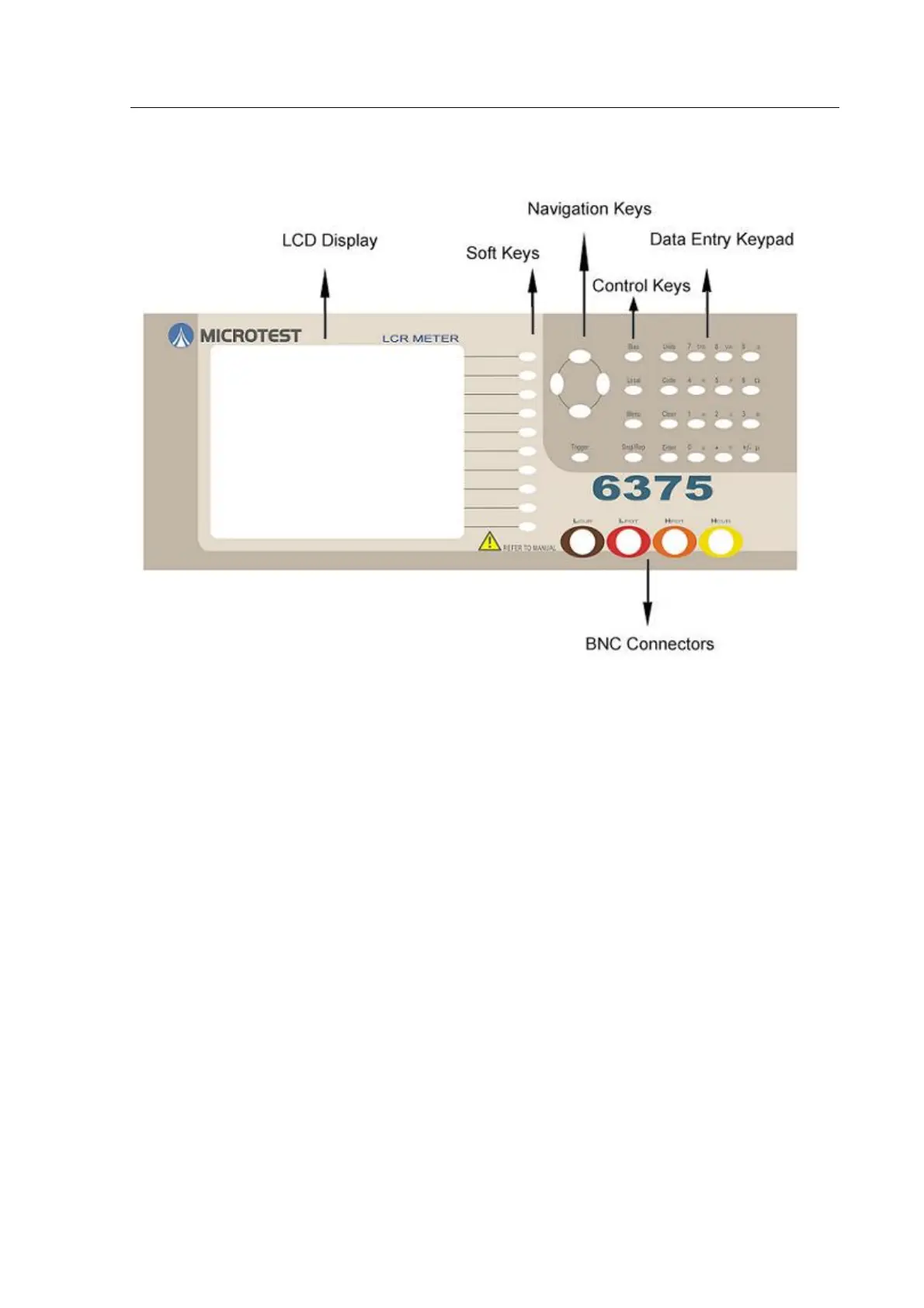

All the above functions can be selected via manual front panel control or remote control via the
GPIB interface for fully-automated high-speed testing.
