Microtest 6378 - Accuracy Charts; Impedance Accuracy Chart

7–5
7.8 Accuracy Chart
Accuracy chart define the measurement ranges available, at specified accuracies, over the
available frequency band. All curves assume that Slow measurement speed is used, that the
meter has been trimmed at the frequency and level used for measurements, factory calibration
are valid and that the component under test is pure.

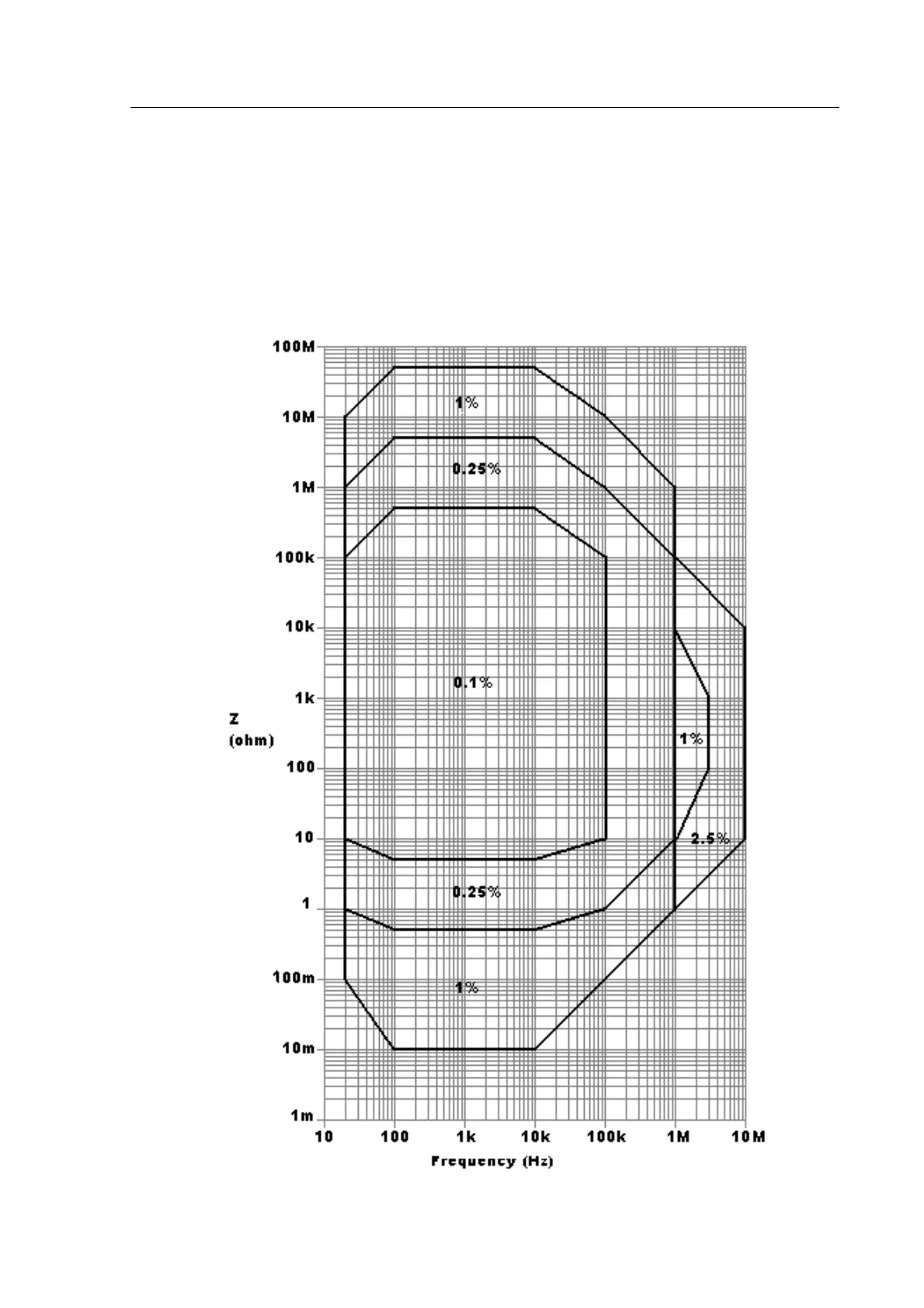

7.8.1 |Z| Accuracy Chart
