3. DISPLAY INSTRUCTION

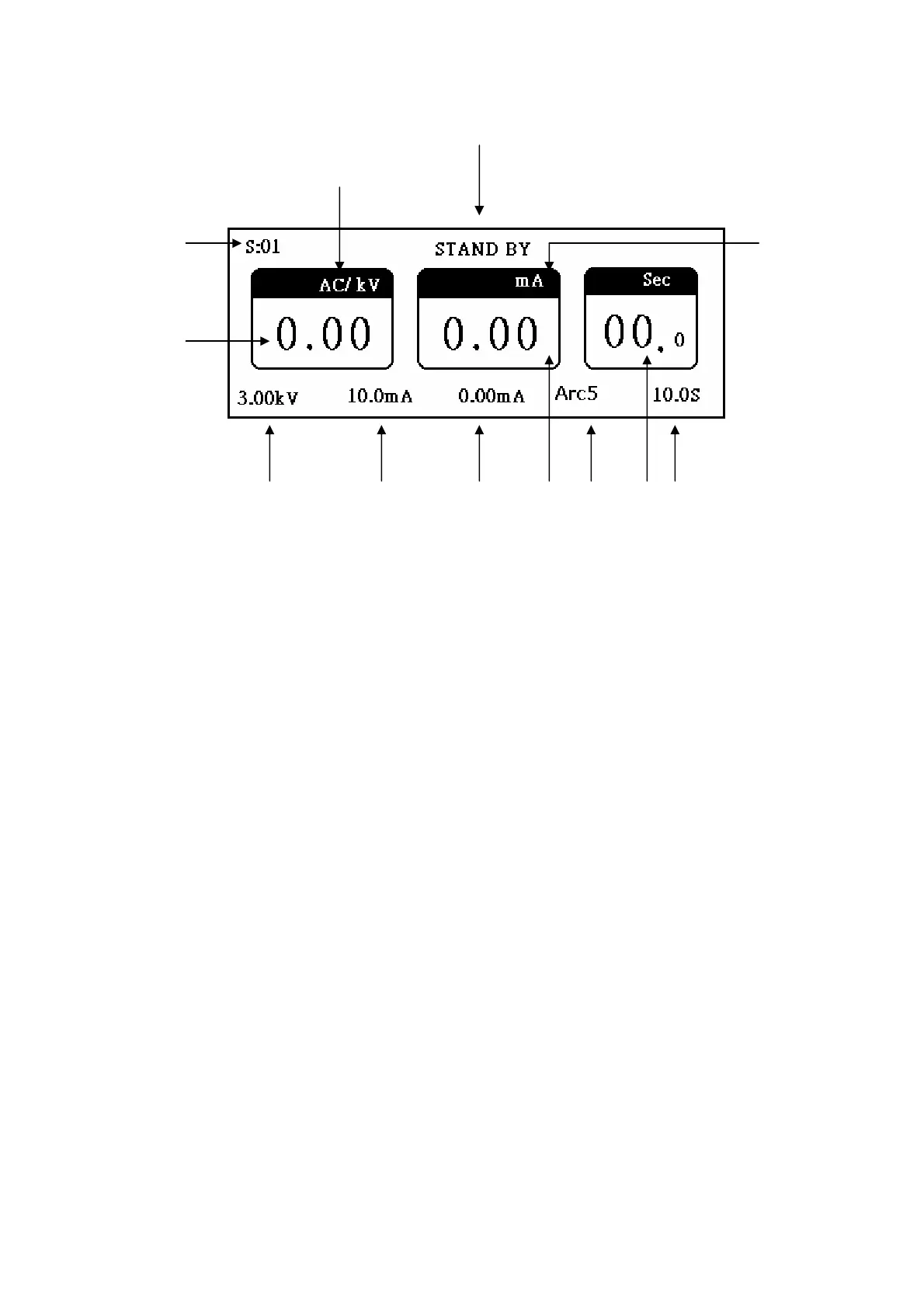

(1) Display the testing file, S stands for single file, M stands for multi-test files. The two
numerical digits following the character stand for the file number.
(2) Display the tested voltage value of the high voltage output terminal.
(3) Display the set voltage value.
(4) Display the upper limit value
(5) Display the lower limit value.
(6) Display the tested current value. Or display resistance value when switched to IR model.
(7) Display the sensitivity of set electric arc. Display OFF when the function is turned off.
(8) Display elapsed time.
(9) Display the set testing time.
(10) Display the unit of measurement. Show up Ω in IR model.
(11) Message row. Display the testing status.
(12) Display testing mode, including AC, DC and IR.
(1)
(2)
(3) (4) (5) (6)
(7)
(8)
(9)
(10)
(12)
(11)
