D/R switch
After the two joysticks are centered, rotate the D/R switch to complete calibration. At this time, the power
light and mode light are on, and the joysticks are calibrated Complete.

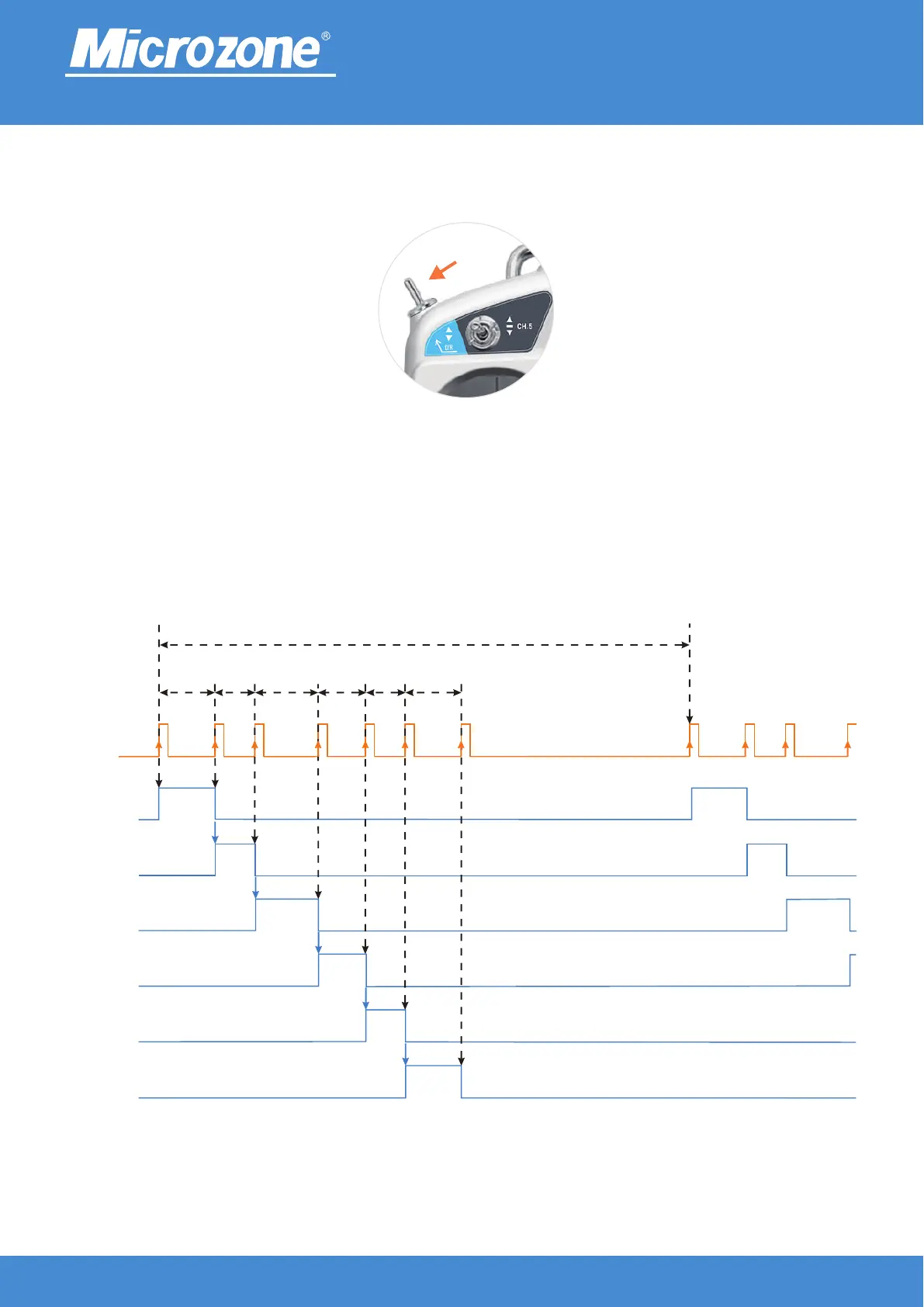

PPM simulator signal:
The PPM signal has one frame of data every 20ms, starting from the low frequency, and the time from the
first rising edge to the second rising edge is the channel 1 data, the time from the second rising edge to the
third rising edge is the channel 2 data, and so on, The first rising edge to the second rising edge is the
channel 1 data, the second rising edge to the third rising edge is the channel 2 data, and so on, as shown in
the figure below,The following diagram shows.
20millisecond
t1 t2 t3 t4 t5 t6
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 1
