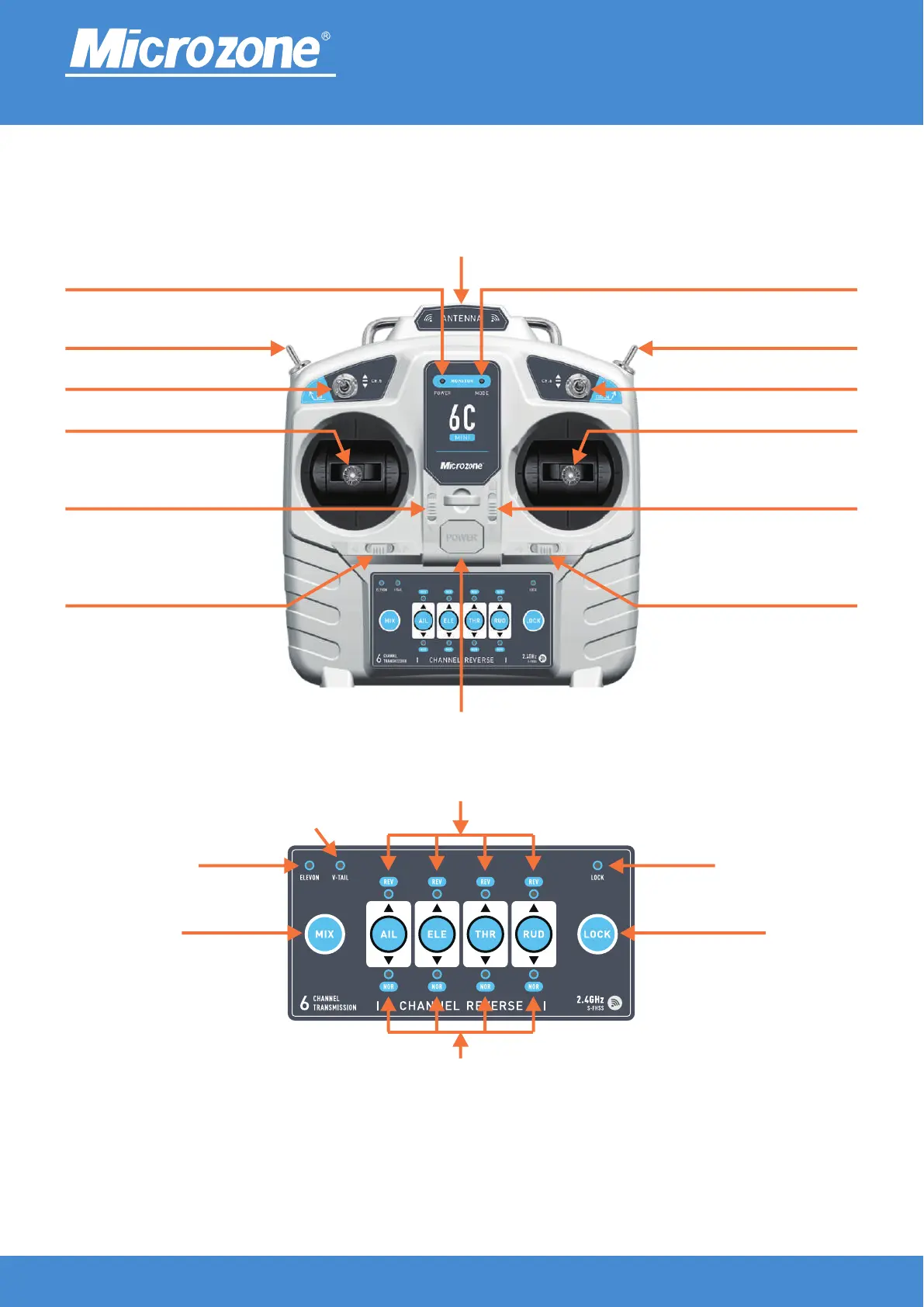

REMOTE CONTROL FUNCTION ANALYSIS
Internal Antenna
D/R switch
Channel 5
Mode switching switch
Power switch
Rudder fine adjustment
Aileron fine tuning
Channel 6
Fine adjustment of throttle
(left hand throttle)
Elevator fine adjustment
(right hand throttle)
Fine adjustment of throttle
(right-hand throttle)
Elevator fine adjustment
(left hand throttle)
Mode light
Power light
Hybrid control
function switch
V-tail hybrid control indicator light
Delta wing mixed
control indicator
Lock switch
Lock indicator ligh
Channel reverse indicator light
AIL:Aileron channel front and back settingsCH.1
ELE:Front and back settings of the lifting channelCH.2
THR:Throttle channel positive and negative settingsCH.3
RUD:Direction channel front and back settingsCH.4
Channel forward indicator light
DIGITAL PROPORTIONAL R/CSYSTEM
www.microzone.cn
2.4GHz
FHSS
RockerRocker
