Microzone M450 - 页 4

DIGITAL PROPORTIONAL R/CSYSTEM
www.microzone.cn
2.4GHz
FHSS
R850
DC+24V Input
Motor 2
(connected to DC brush motor)
Antennae
FM button
Power/signal transceiver lamps
System operation light
Antenna Interface
Anodal
Cathode
Motor 1
(connected to DC brush motor)

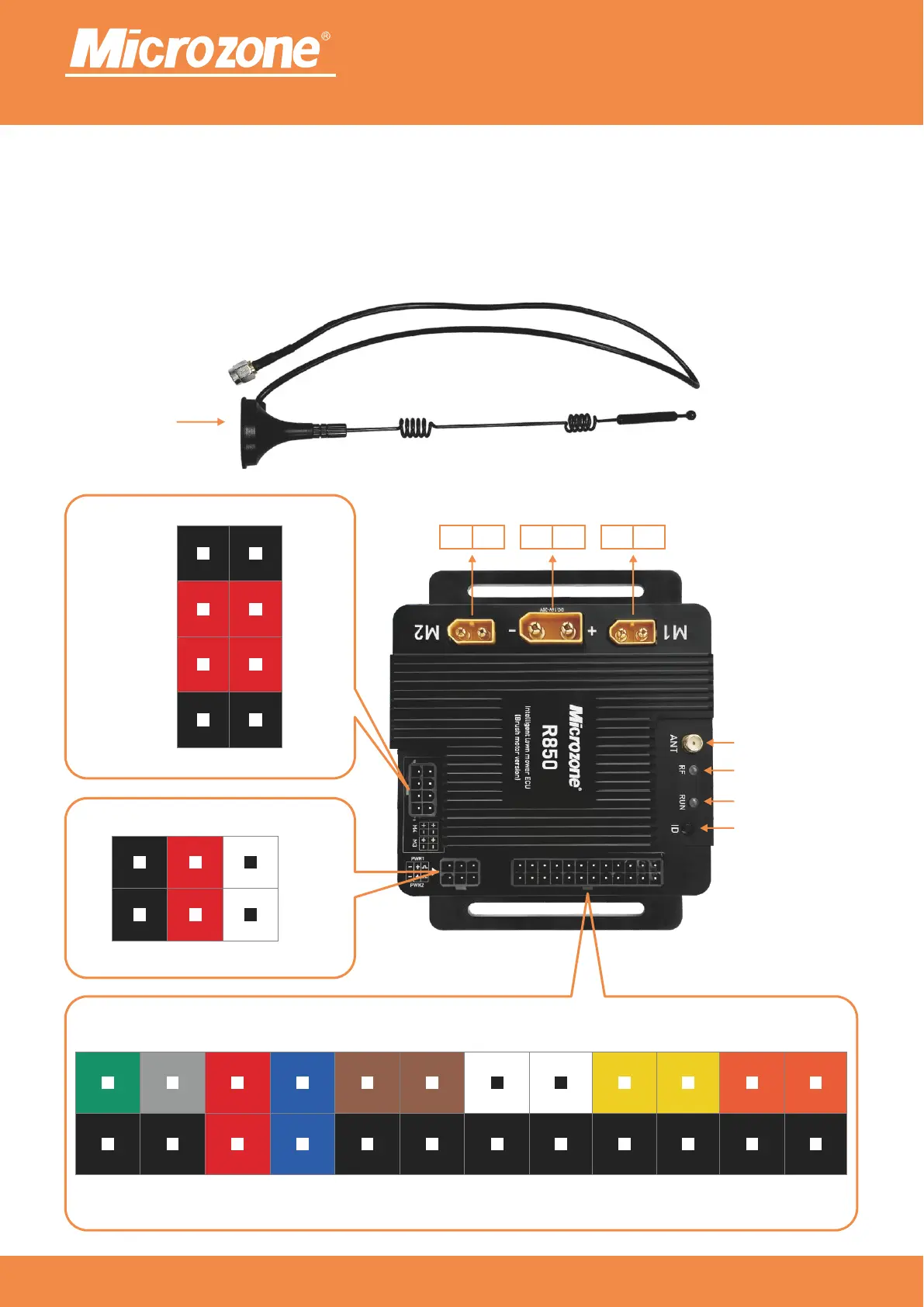

STANDARD RECEIVER FUNCTION ANALYSIS
24V Putter motor wiring
M3
M4
Anodal
Cathode
Anodal
Cathode
Anodal
Cathode
Anodal
Cathode
Servo Wiring
PWM2
PWM1
+5V
Signal
Cathode
+5V
SignalCathode
Connecting the
engine off wire
Connect the
engine start wire
Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire Grounding wireGrounding
wire
Grounding
wire
Rear Crash
Sensor Line 2
Level Connection
12V
Right headlight
Right rear
headlight
Before left
turn light
Front Crash
Sensor Line 1
Grounding
wire
Left headlight
Left rear
headlight
After left
turn signal
Right turn
signal after
Before right
turning light
Anodal Anodal
Cathode Cathode
