2.4 Rear Panel

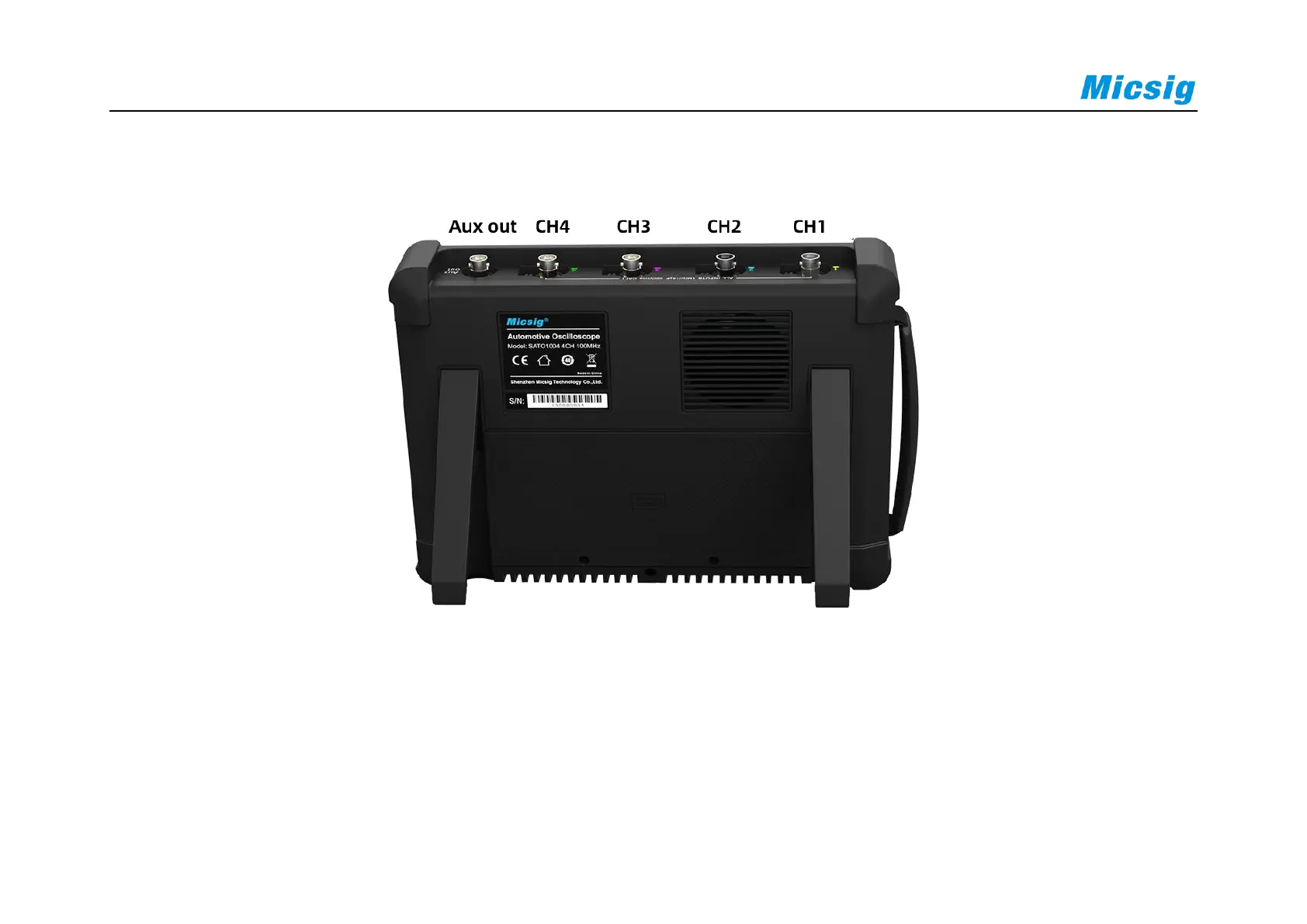

Figure 2-3 Rear Panel
a) Ch1 – Ch4 are signal measurement channels
b) Aux out is an auxiliary channel, which is mainly used to measure the waveform refresh rate of the oscilloscope
and cascade the current oscilloscope signal to other oscilloscopes.
