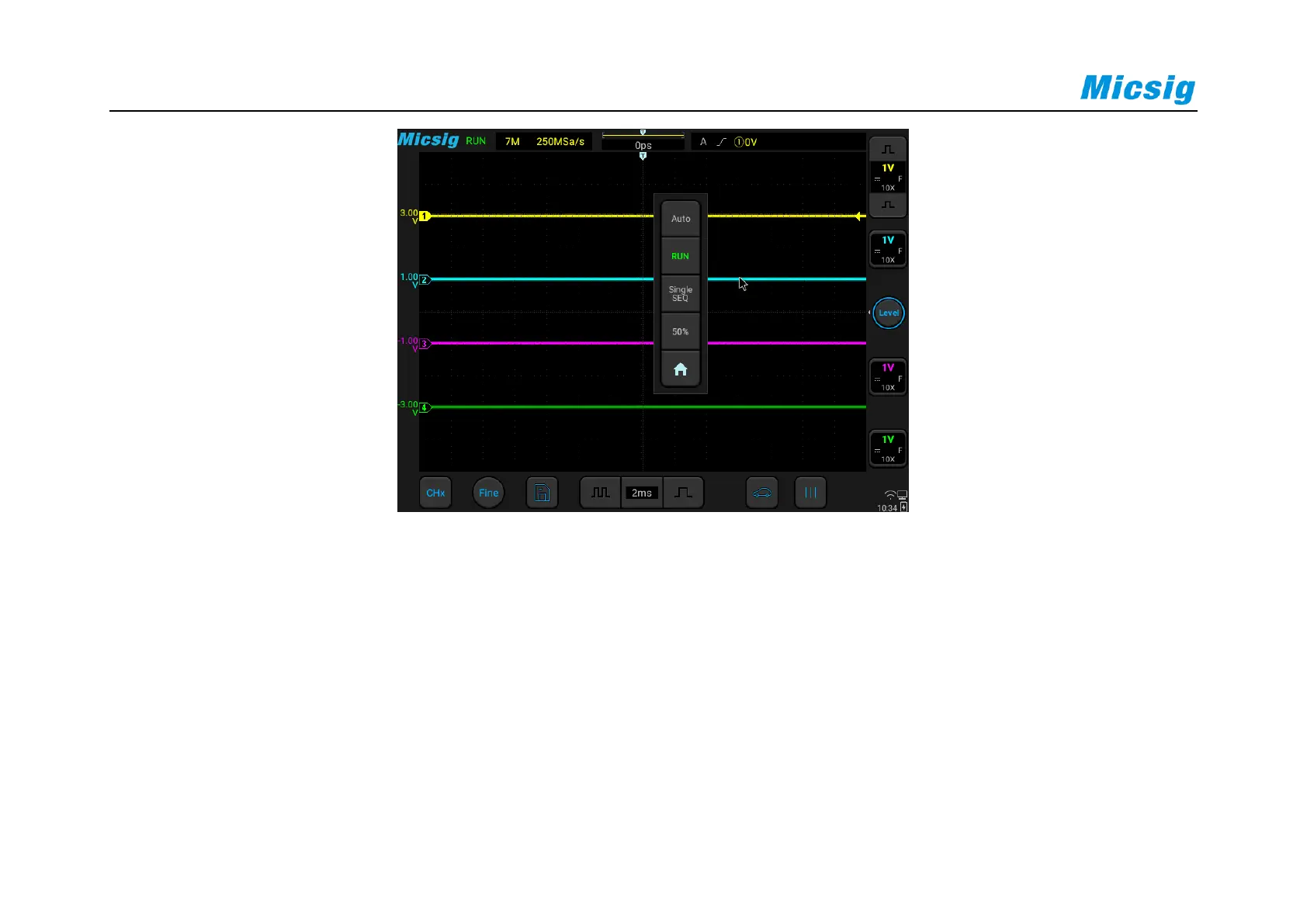

Figure 2-8 Mouse Cursor
2.11 Connect Probe to the Oscilloscope
1) Connect the probe to the oscilloscope channel BNC connector.
2) Connect the retractable tip on the probe to the circuit point or measured equipment. Be sure to connect the
probe ground wire to the ground point of the circuit.
