Chapter 3 Automotive Test
63

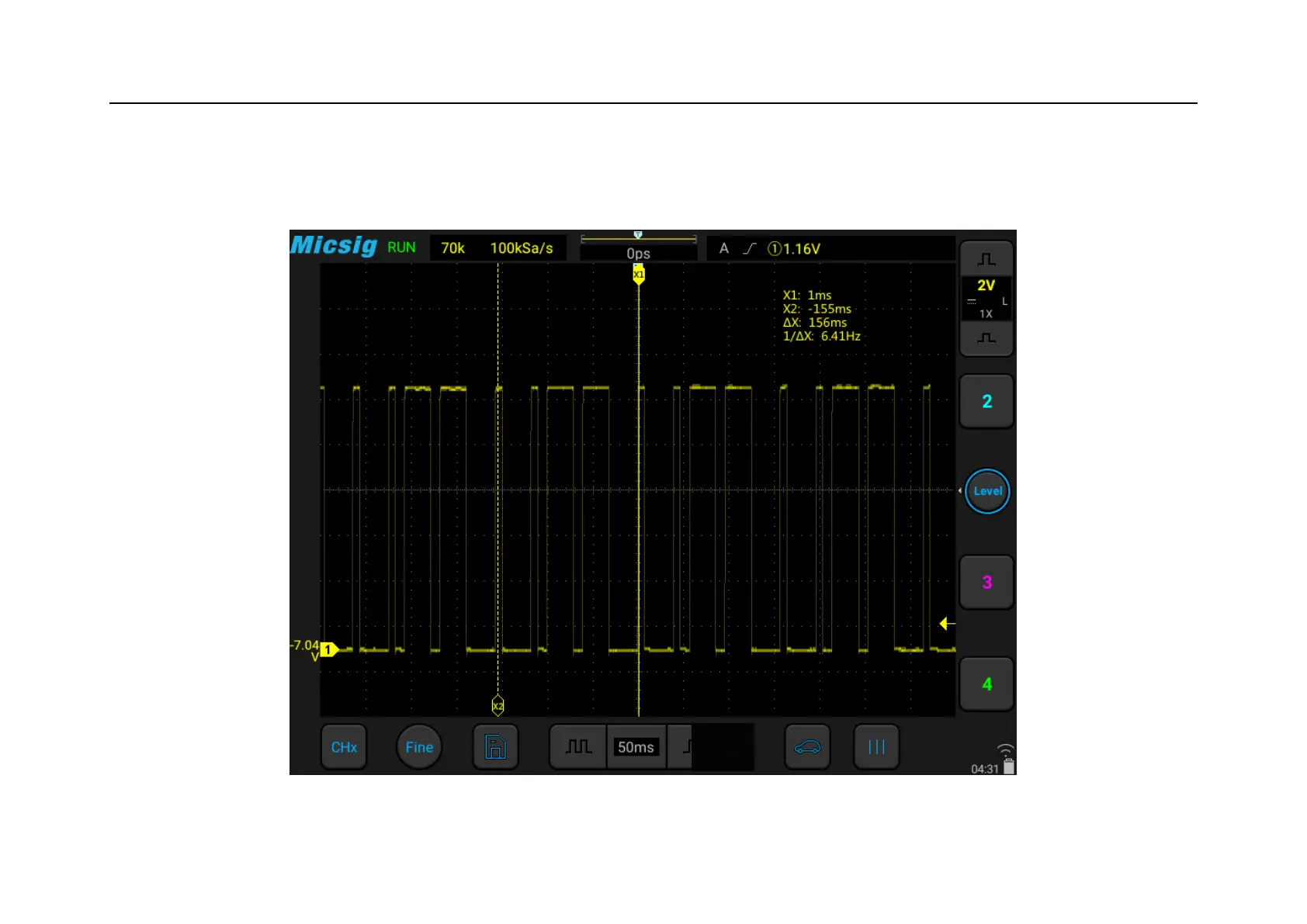

The following figure is the actual measurement diagram of the camshaft position sensor (Hall type) of a certain
model:
Figure 3-14 Camshaft position sensor (Hall type)
