68

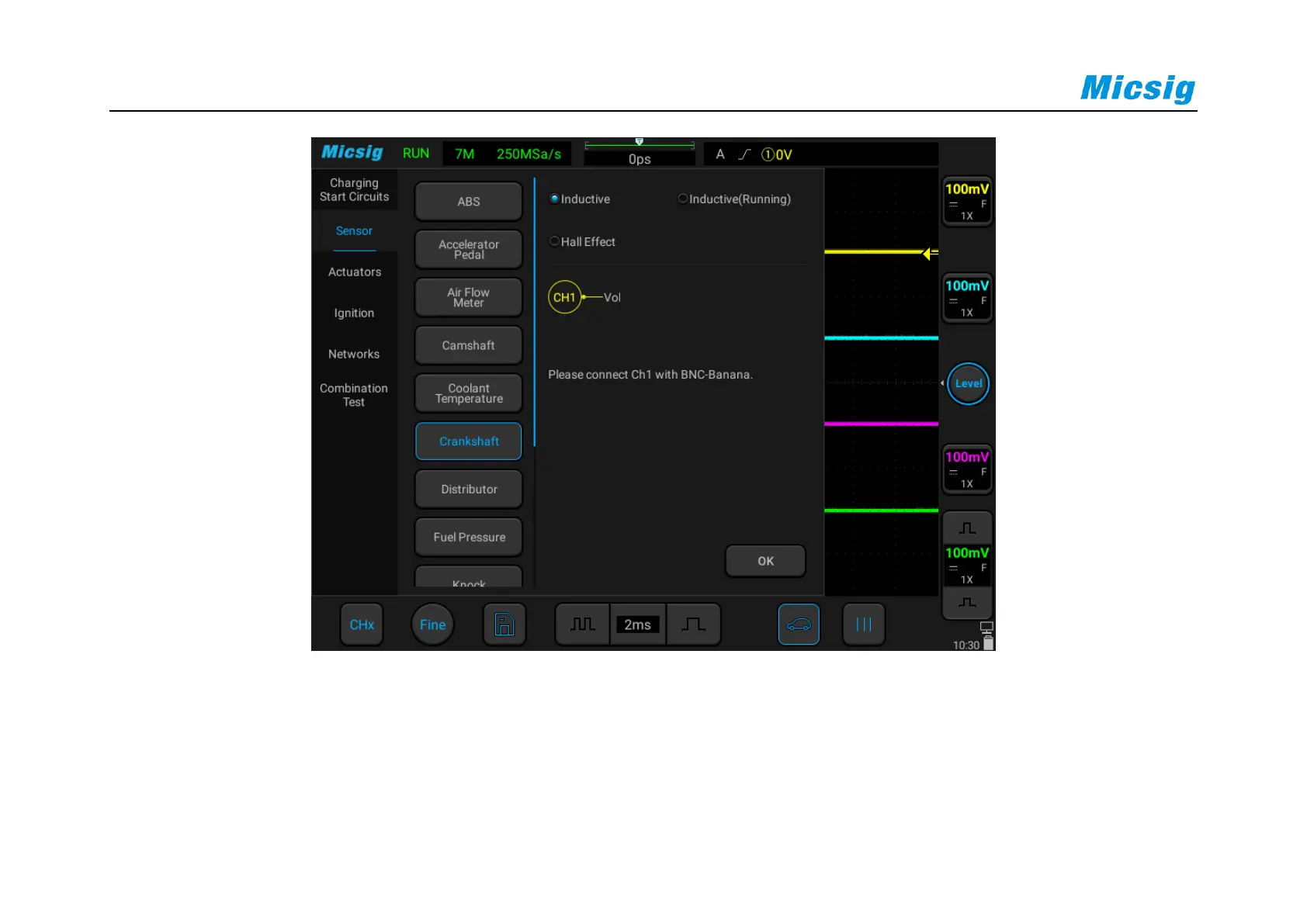

Figure 3-16 Crankshaft position sensor
The figure below is the actual measurement of the crankshaft position sensor (inductive) of a certain model:
