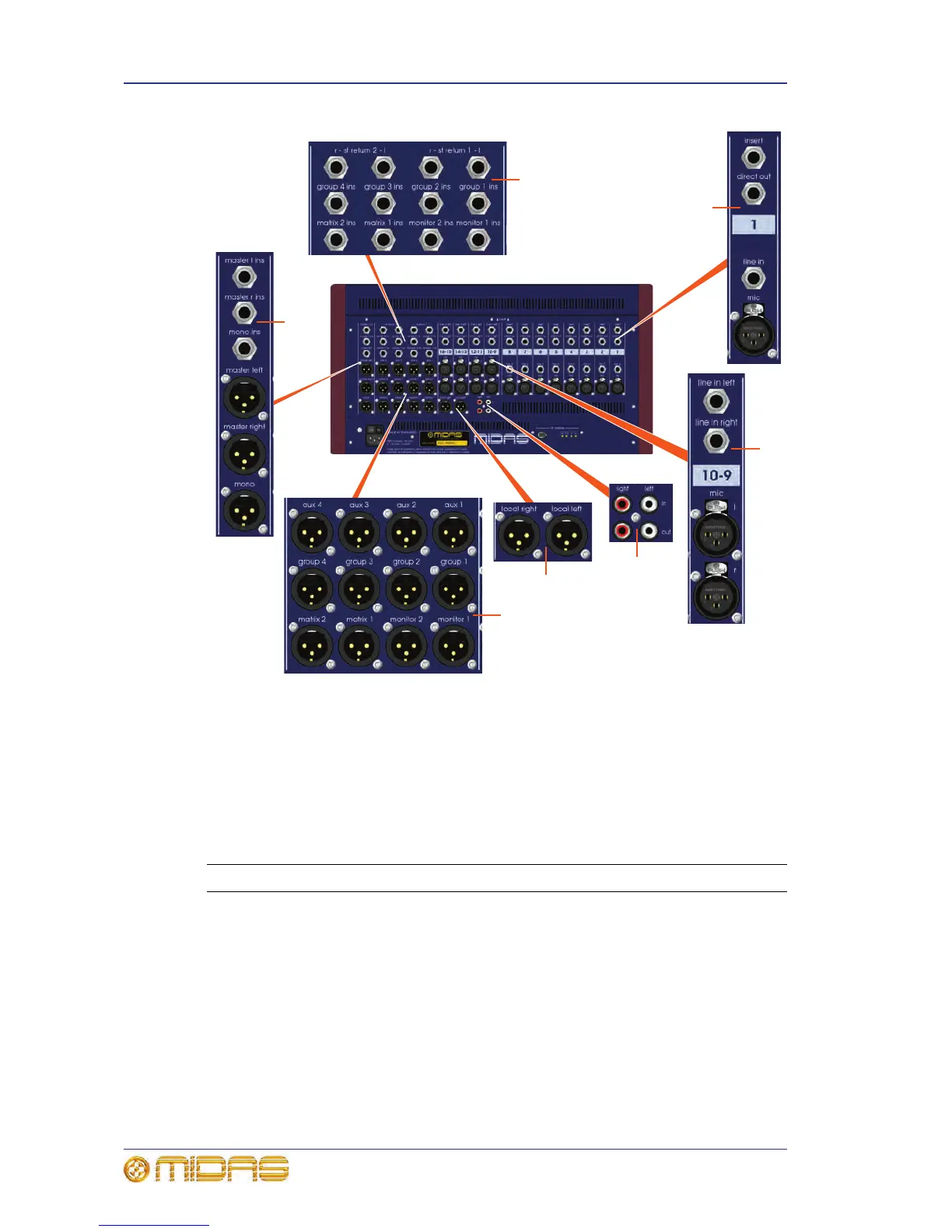

Rear panel of the VeniceF16 showing the main connector sections
A. Inserts and returns. B. Mono input channel (insert, direct out, line in and mic in).
C. Dual stereo channel (line in left and right, and mic inputs left and right). D. Playback
I/Os (left and right). E. Local monitor outputs. F. Aux, group, matrix and monitor
outputs. G. Stereo and mono master inserts and outputs.
External connections
The following table details all of the external connections on the VeniceF.
Connection(s) Description Notes
All mic inputs Balanced XLR connectors,
2K load
Mono and stereo channels
All primary line inputs Balanced Jacks 10K load Mono and stereo channels
All inserts Jack connectors, 50R
source, 10K load
Mono and master
channels
Group, matrix and
monitor buses
Stereo returns
