64 Chapter 7: Output Section
VeniceF
Operator Manual
Monitors
There is an output connector and insert connector on the rear panel for both monitor
bus outputs.

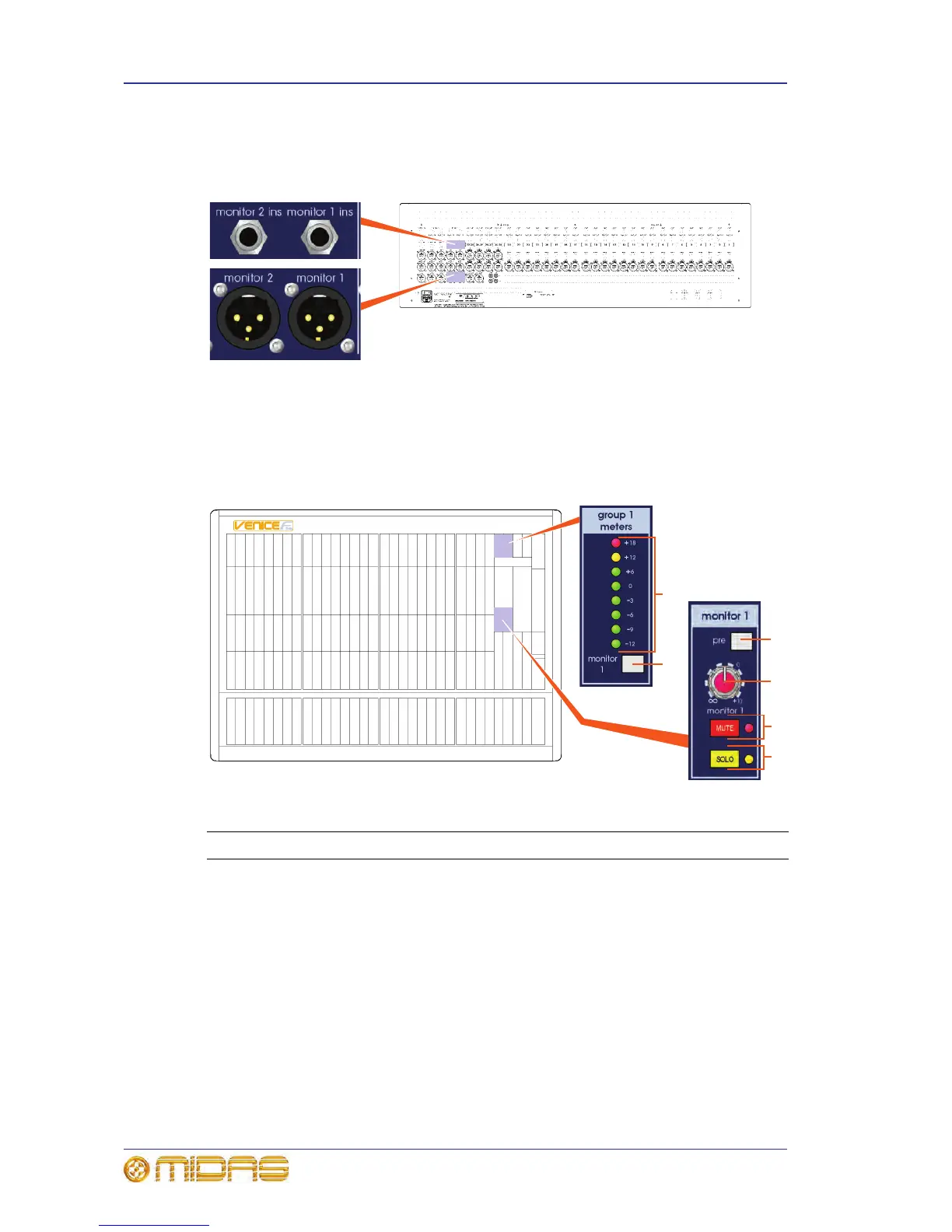

Two monitor inserts and two monitor outputs on rear panel
FireWire output is available for the monitors by the overriding the relevant dual stereo
input channel. For more information, see “FireWire” on page 58.
There are two discrete monitor sections on the control surface, which can be monitored
on the first two group meters.
Monitor channels (1 and 2)
Item Description
1 Meter LEDs These LEDs comprise the monitor meter when the monitor
switch (immediately below) is on. This meter monitors the signal level of
the monitor bus. Range is from -12dBu to +18dBu (3dBu steps from
-12dBu to 0dBu, and 6dBu steps from 0dBu to +18dBu).
2 Monitor switch This is the meter changeover switch (from group).
3 pre switch This is the bus master pre-fader switch.
4 monitor 1 control knob This output level control gives continuous
adjustment of the monitor output signal from +10dB to
4 (infinity/off).
