Rear panel 33
VeniceF
Operator Manual
Rear panel

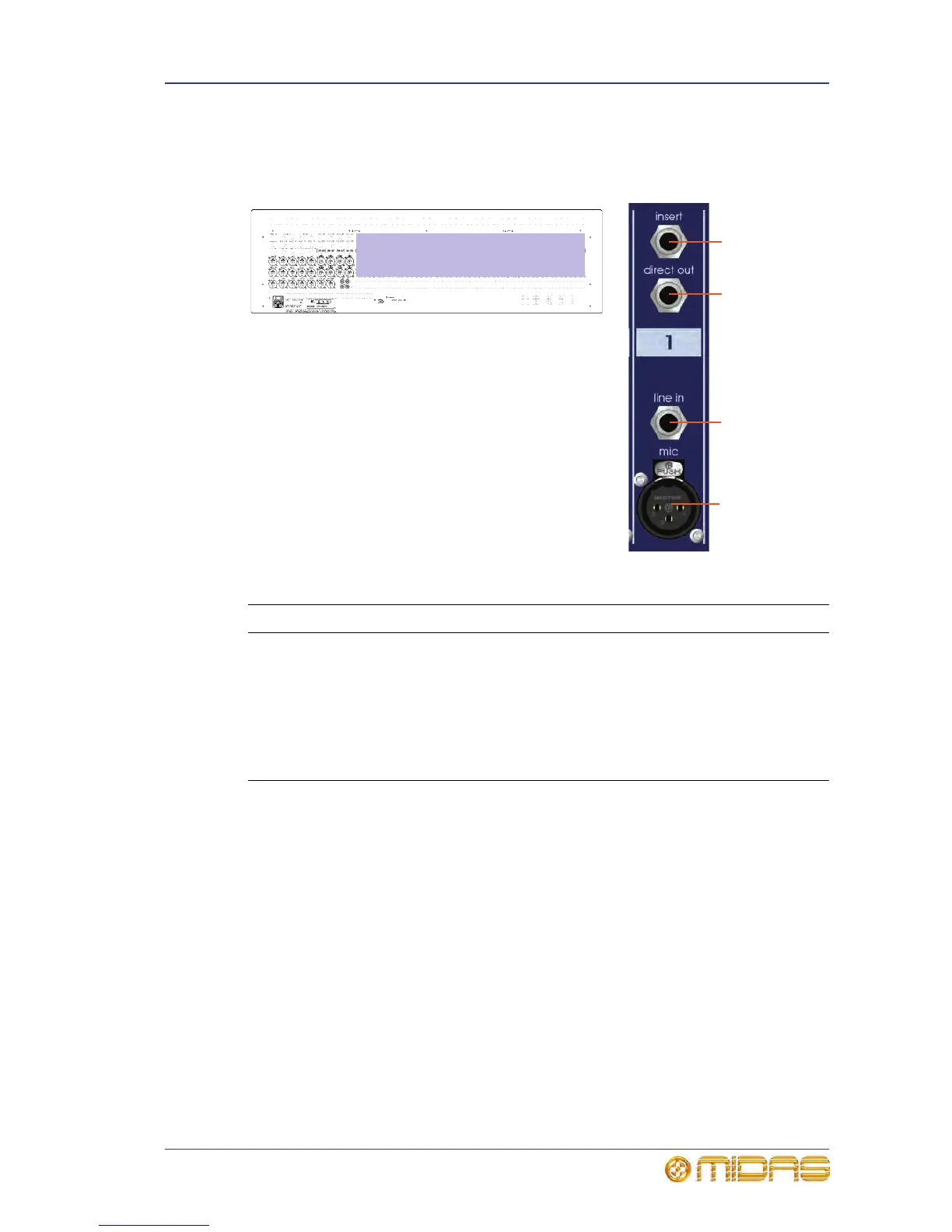

The VeniceF channel inputs are located on the rear panel of the console and each
channel comprises the following.
Mono input channel connectors
The direct out and insert points operate at a nominal level of 0dBu.
Balanced XLR and Jack inputs are conventionally wired (see Table 1 “Connector
pinouts” on page 13).
Item Description
1 insert connector Insert point on a single 1/4” TRS Jack socket. This is
unbalanced and requires a conventionally-wired insert lead.
2 direct out connector Direct output on a single, balanced 1/4” TRS Jack
socket.
3 line in connector Line in on a single, balanced 1/4” TRS Jack socket.
4 mic connector Mic input on a single, balanced XLR female chassis
connector.
