DISASSEMBLY INSTRUCTIONS SIZES 12K (115V) (CONT)
2 Fan
assembly

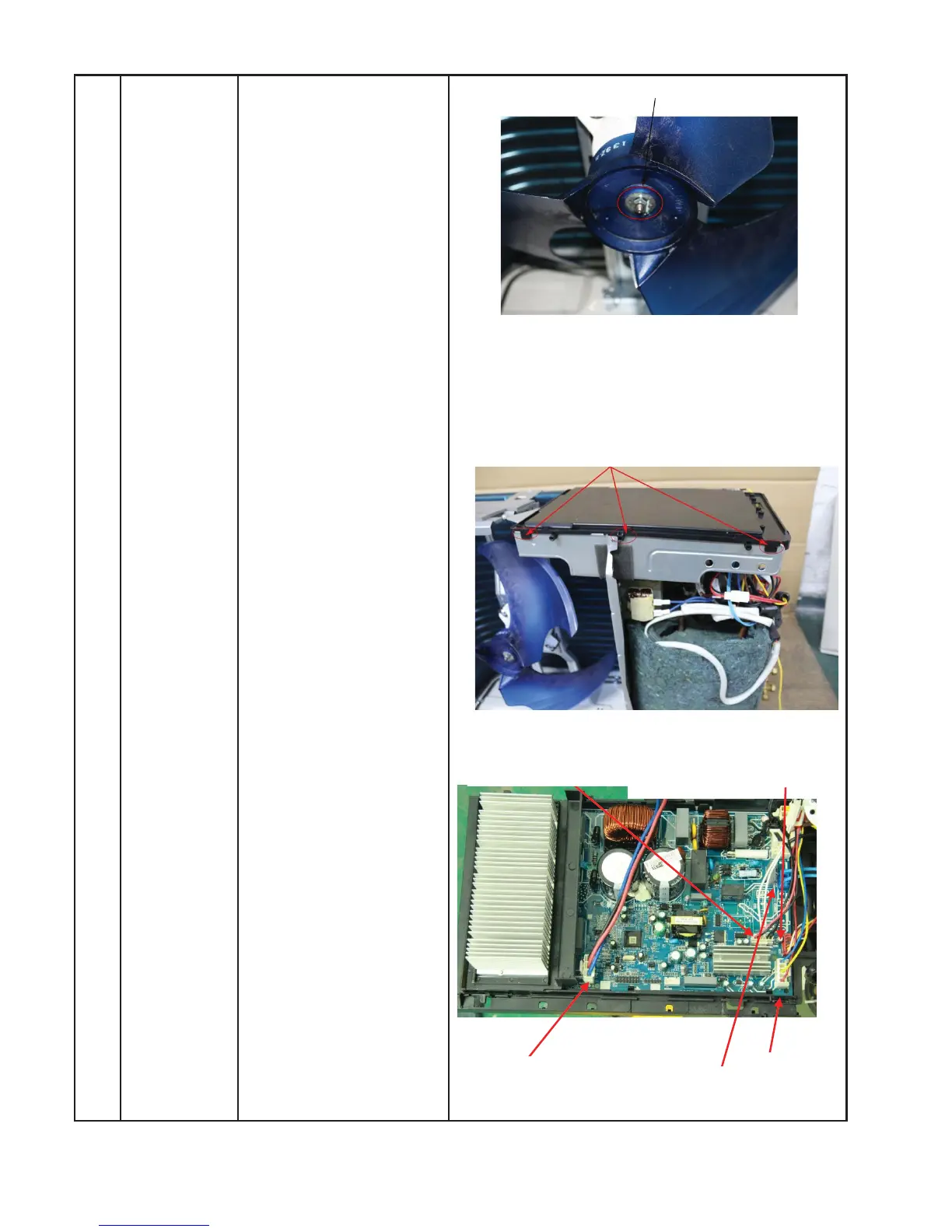

How to remove the fan
assembly.
1) Remove the nut
securing the fan, and
remove the fan.
2) After removing the top
cover, release the
hooks and open the
electronic control box
cover.
3) Disconnect the fan
motor connector from
the electronic control
board.
ƻ
2
ƻ
3
Compressor
T3, T4, T5 sensor
Motor
Electronic expansion valve
4 wa
y
valve
