DISASSEMBLY INSTRUCTIONS SIZES 12K (115V) (CONT)

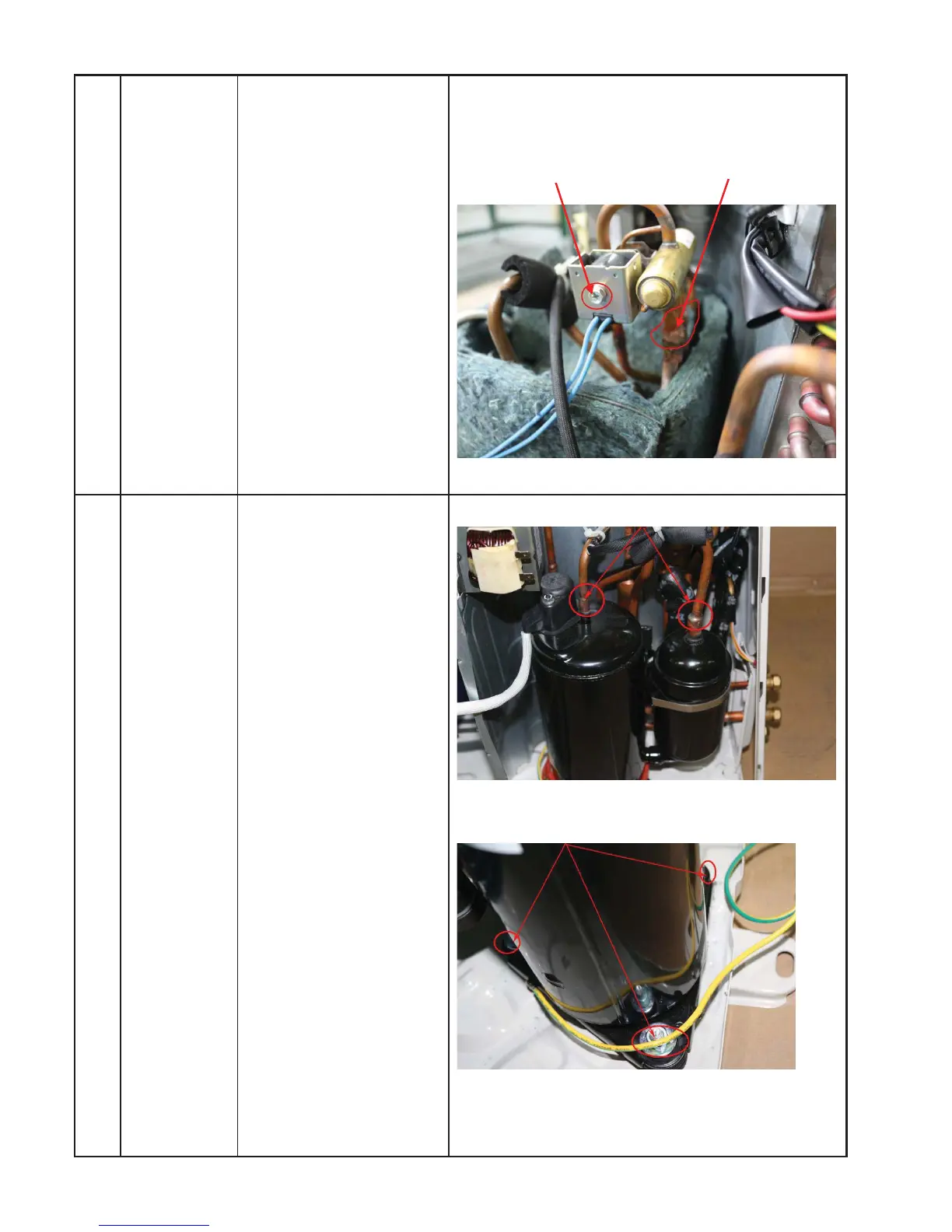

4 Four-way
valve
How to remove the
four-way valve.
1) Perform the work of
sections 1 and 3.
2) Recover refrigerant
from the refrigerant
circuit.
3) Remove the coil screw
then remove the coil.
4) Detach the welded
parts of the four-way
valve and pipe.
5) Remove the four-way
valve assembly.
The picture of four-way valve may be different from
your actual valve.
5 Compressor How to remove the
compressor.
1) Complete the work of
sections1 and 3.
Recover the refrigerant
from the refrigerant
circuit.
2) Remove the discharge
and suction pipes with
a burner.
3) Remove the hex nuts
and washers securing
the compressor on the
bottom plate.
4) Lift the compressor
from the base pan
assembly.
ƻ
2
ƻ
3
ĺ
ƻ
3
