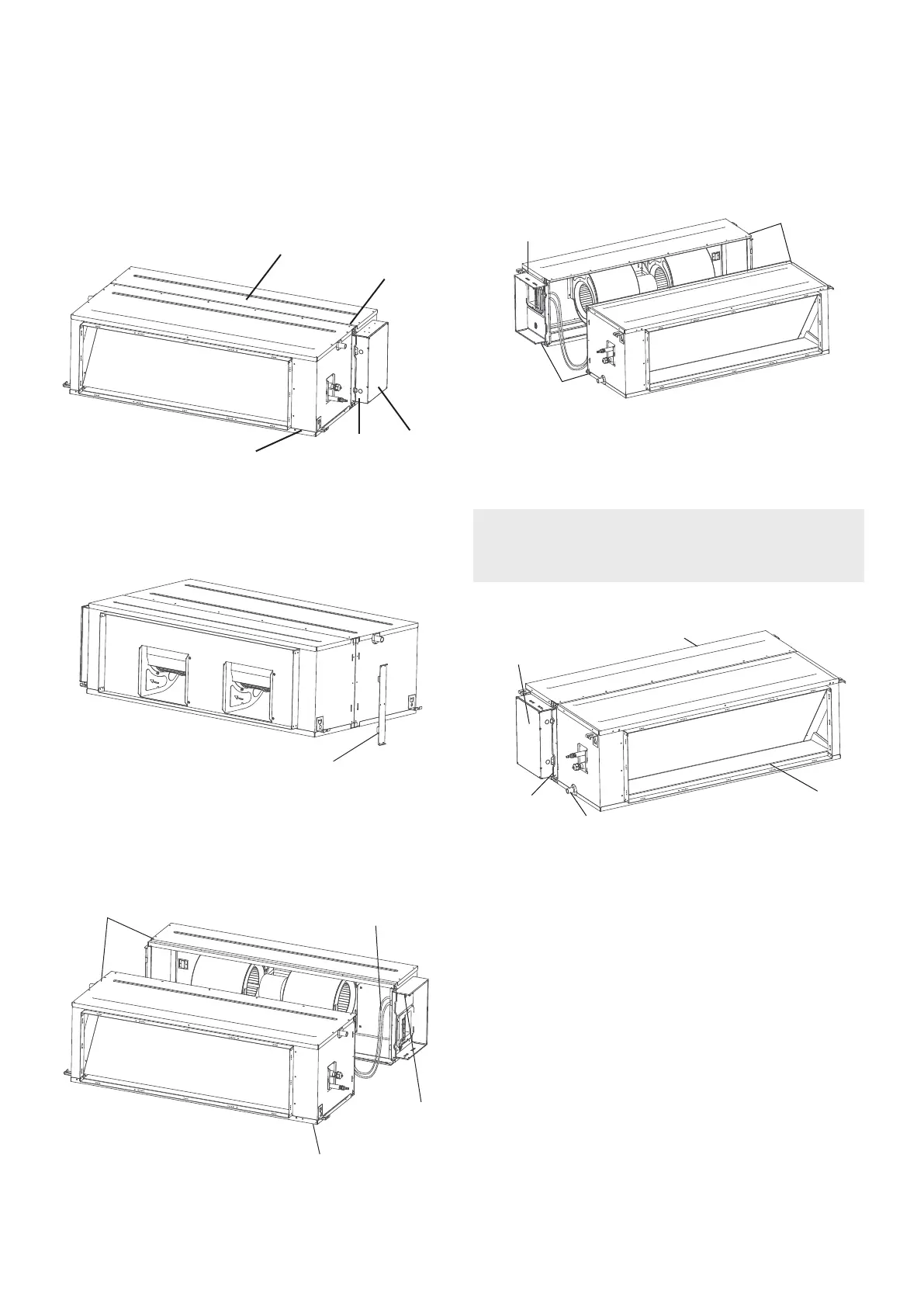

Disconnect-type installation
1. Remove the cover of the electric control box
and pull out the temperature sensor line and
water pump line (water distribution pump
model) from the main control board.
2. Remove 6 screws on the top cover and 3 screws
on the connecting plate of the left side plate.
4. Separate the box and pull out the temperature
sensing envelope / water pump line from the
wire through hole in the electric control box.
3. Remove the connecting plate on the left side
panel.
Cover plate
Screw
Chassis
Electric
control
box
Connecting
plate
Cover plate
Chassis
Through hole
The sensor line or
water pump line
Connecting plate
5. Move the two boxes to the installation position
(the chassis faces up and the water tray faces
down)
6. Connect the temperature sensing cable / water
pump cable to the main board in the electric
control box.
7. Combine the two boxes and fix the chassis and
connecting plates on both sides with screws.
Chassis
Electric
control box
Cover plate
Chassis
Electric
control box
Cover plate
Water tray
Connecting
plate
NOTE: When merging, the sensor line or
water pump line cannot be clamped by the
box.
18
