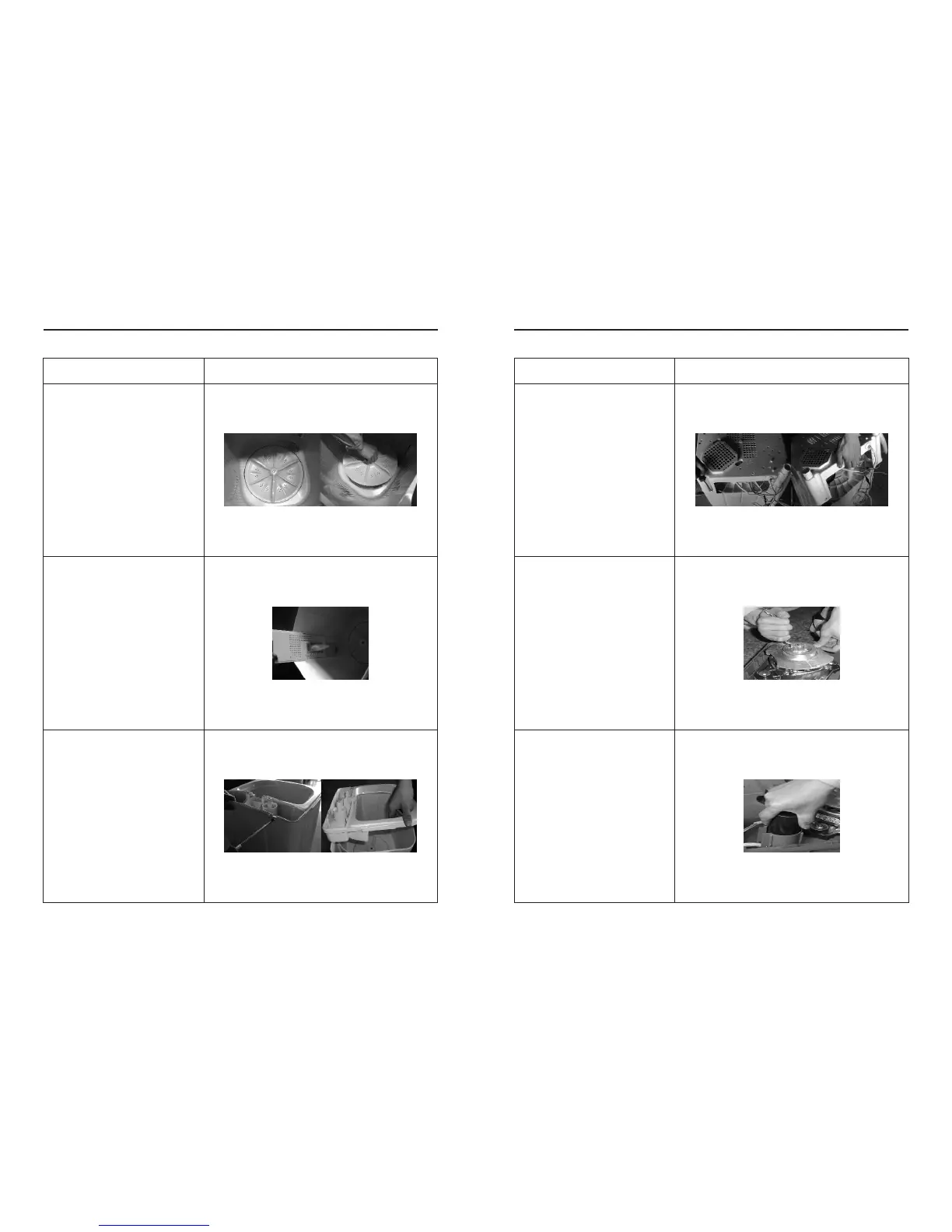

4.DISMANTLING WAYS OF MAIN PARTS
Operation step
a.
4. Remove the pulsator
a. the pulsator screw.
b. Draw out the pulsator with
hands.
Screw off
b.
a.
5. Remove the overflow cover
kit
a.Hold the
then pull it out.
overflow cover kit
a. b.
6.Remove the frame
a. Screw off the screws of the
frame.
b. The frame can be removed .
4.DISMANTLING WAYS OF MAIN PARTS
Operation step
a.
a.
9. Remove the motor pulley
a.Loosen the nut with special
wrench,then loosen the screw.
10. Remove the capacitor
a.Hold firm the capacitor then
pull it out.
a.
b.
8. Remove the base
a. Press the V-belt at the part near
the pulley. Then take down the
V-belt by rotating the pulley.
b. Spread one blanket on the
floor then lay down the washing
machine. Pull out the drain hose
from the clamp and draw out the
drain hose subassembly. After
screws on the base are
unscrewed, the base assembly
can be disassembled.
