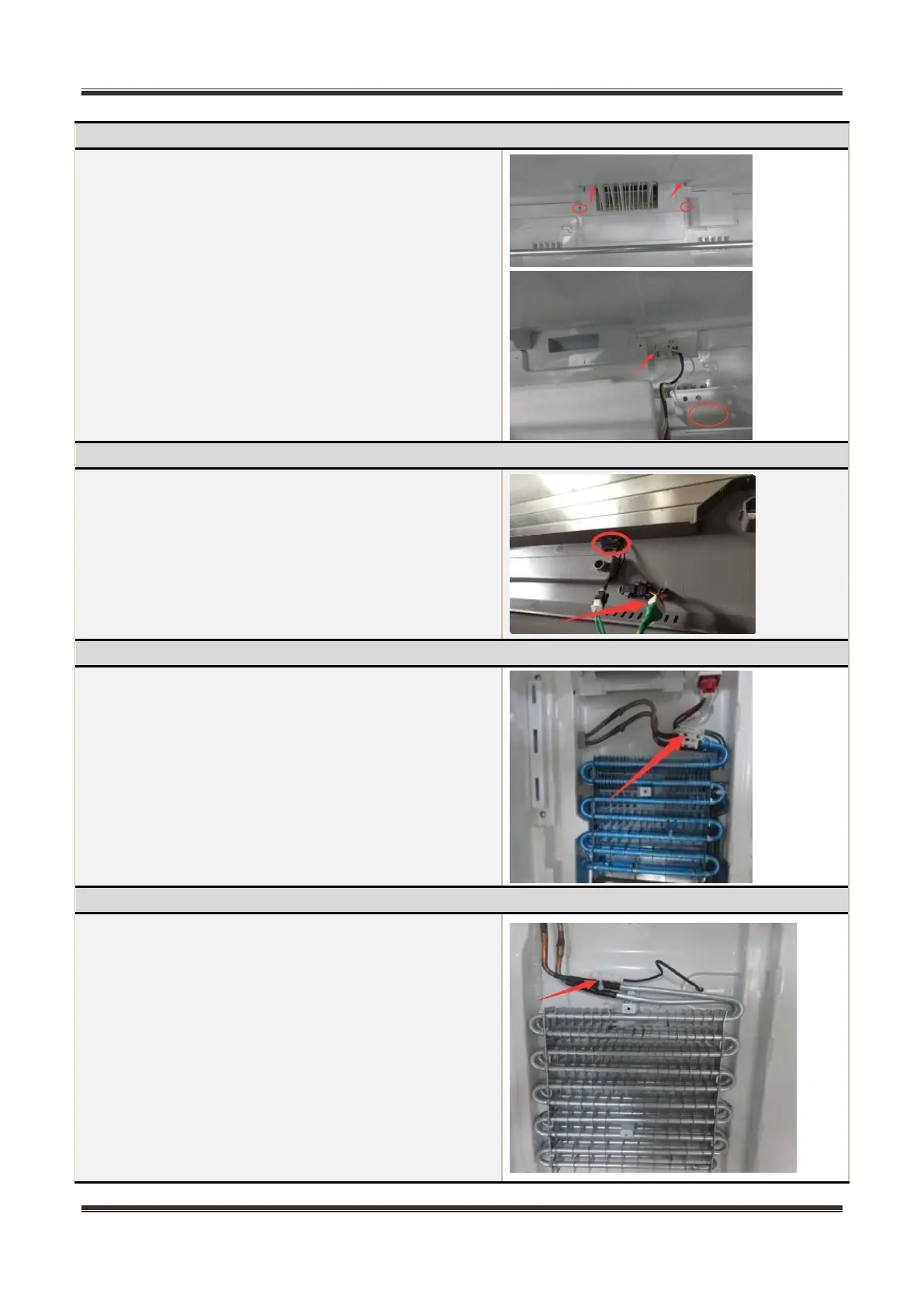

Sensor of variable temperature chamber
Before removal of this sensor, it is necessary to remove
the air duct of the variable temperature chamber and
unplug the sensor wiring terminal.
Ambient temperature and humidity sensor
Located in the upper hinge cover of the refrigerating right
door.
1) Before removal of this sensor, the refrigerating upper
hinge cover shall be removed first;
2) Disconnect the wiring terminal of the sensor, and take
out the sensor fom the upper hinge cover.
Defrost sensor of ice-making compartment
The defrost sensor of ice-making compartment is located
in the top of ice maker defrost evaporator, before removal
of this sensor, the refrigerator air duct shall be removed
first.
1) Disconnect the wiring terminal of defrost sensor;
2) Disconnect the ribbon of fixation sensor;
3) Separate the sensor from the evaporator.
Defrost sensor in refrigerate chamber
The defrost sensor is located on top of the evaporator.
1) Disconnect the connector of defrost sensor;
2) Cut off the band which fixes the sensor;
3) Separate the sensor and the evaporator.
