Service Manual_2020-V1.0
59

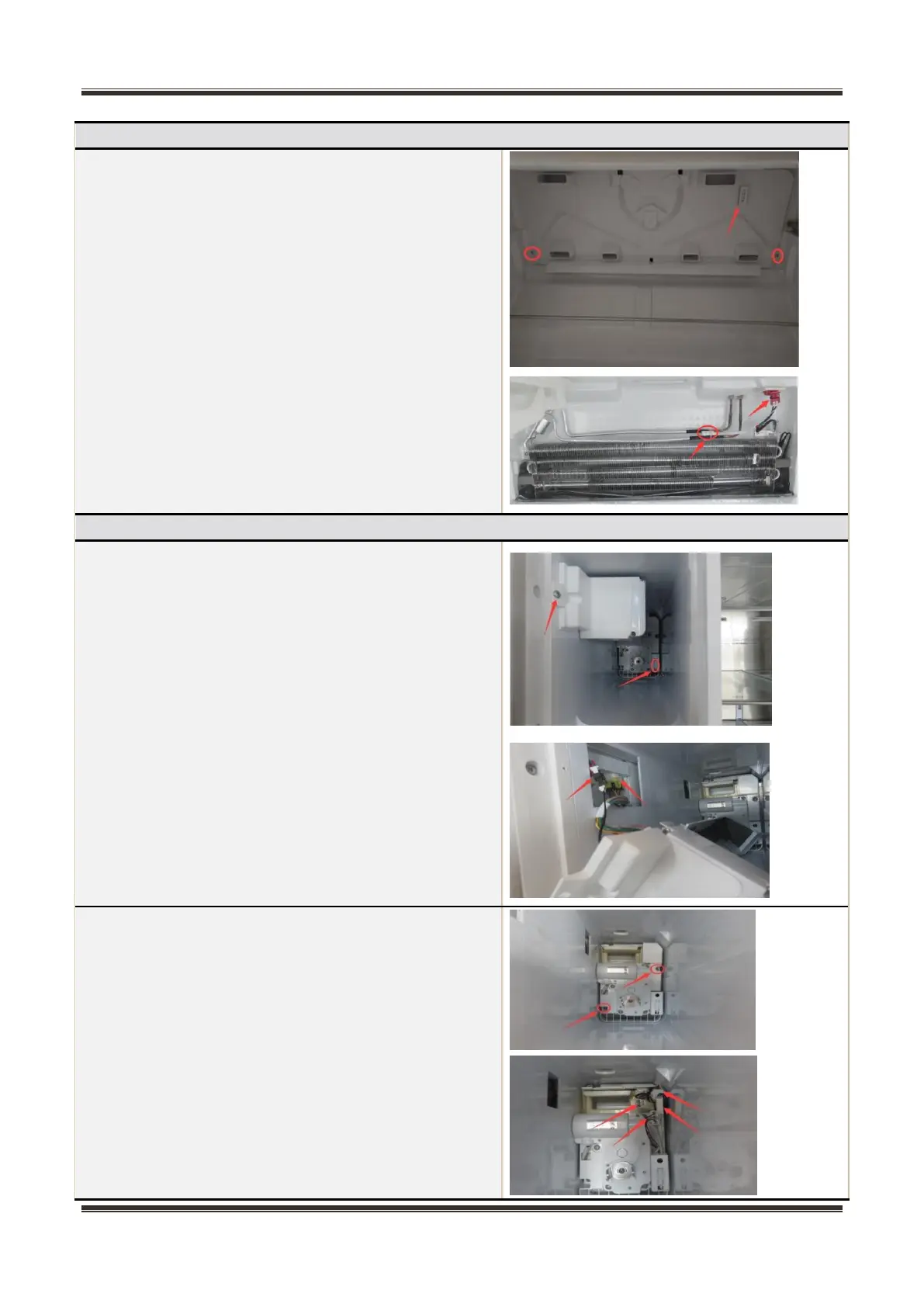

Freezer defrost sensor is located in the top of freezer
evaporator, before removal of this sensor, the freezer air
duct shall be removed first.
1) Take out the freezer drawer, remove the screw
indicated by the red circle, and take down the cover plate
of freezer air duct;
2) Disconnect the connector of defrost sensor;
3) Cut off the band which fixes the sensor;
4) Separate the sensor and the evaporator.
Temperatureor sensor of ice-making compartment
Temperature sensor of ice-making compartment is
located in the rear of the ice-making bucket, the location
indicated by the red circle.
1) Take out the ice storage box of the ice-making
compartment, and remove the screw indicated by the
arrow;
2) Disconnect the wiring terminal of the ice maker, and
take out the ice maker;
3) Remove the screw indicated by the arrow;
4) Disconnect the fan wiring terminal, and take down the
sensor after taking out the fan.
