Aqua Tempo Super II
201709 11
Part 2 - Component Layout and
MC-SU60-RN1L

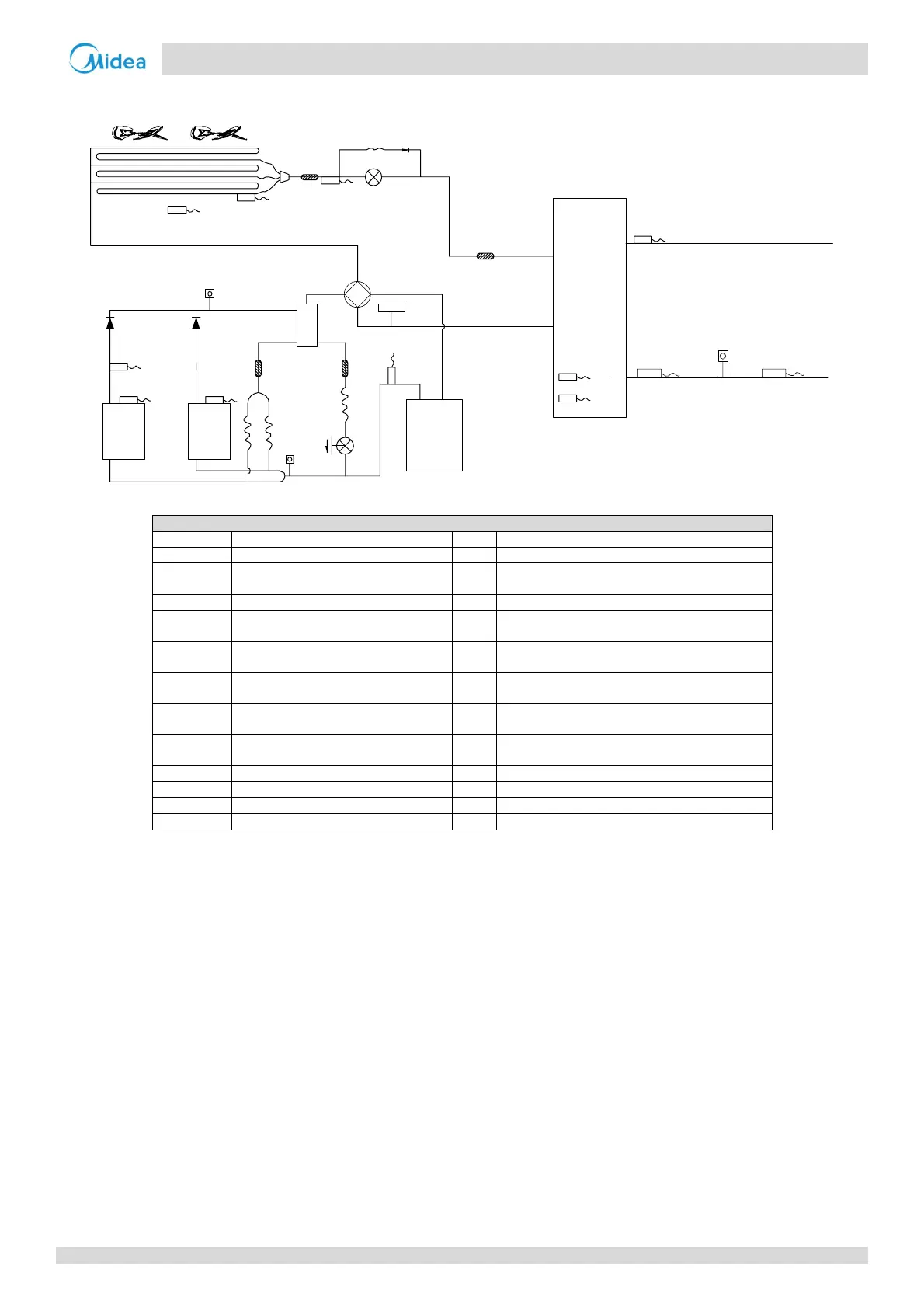

Figure 2-2.2: MC-SU60-RN1L piping diagram
Legend
1 Compressor Tp1 Discharge temperature sensor 1
2 Low pressure switch Tp2 Discharge temperature sensor 2
3 Discharge temperature control switch T3 Air side heat exchanger refrigerant outlet
temperature sensor
4 High pressure switch T4 Outdoor ambient temperature sensor
5 Oil separator TZ/7 Air side heat exchanger refrigerant total outlet
temperature sensor
6 Air side heat exchanger Taf1 Water side heat exchanger anti-freezing
temperature sensor 1
7 Pressure sensor Taf2 Water side heat exchanger anti-freezing
temperature sensor 2
8 Accumulator Twi Water side heat exchanger water inlet temperature
sensor
9 Water side heat exchanger Two Water side heat exchanger water outlet
temperature sensor
10 Water flow switch Tw Combined water outlet temperature sensor
11 Filter Th Air suction temperature sensor
EXV Electronic expansion valve SV4 Oil return solenoid valve
ST1 4-way valve
Tp2
T3
T4
SV4
Tp1
Twi
Tz
C
a
p
il
l
a
ry
Taf1
EXV
ST1
Taf2
1.1
3
1.2
4
5
7
8
9
Two
Tw
10
11
Th
